JUNIOR
-eLp-

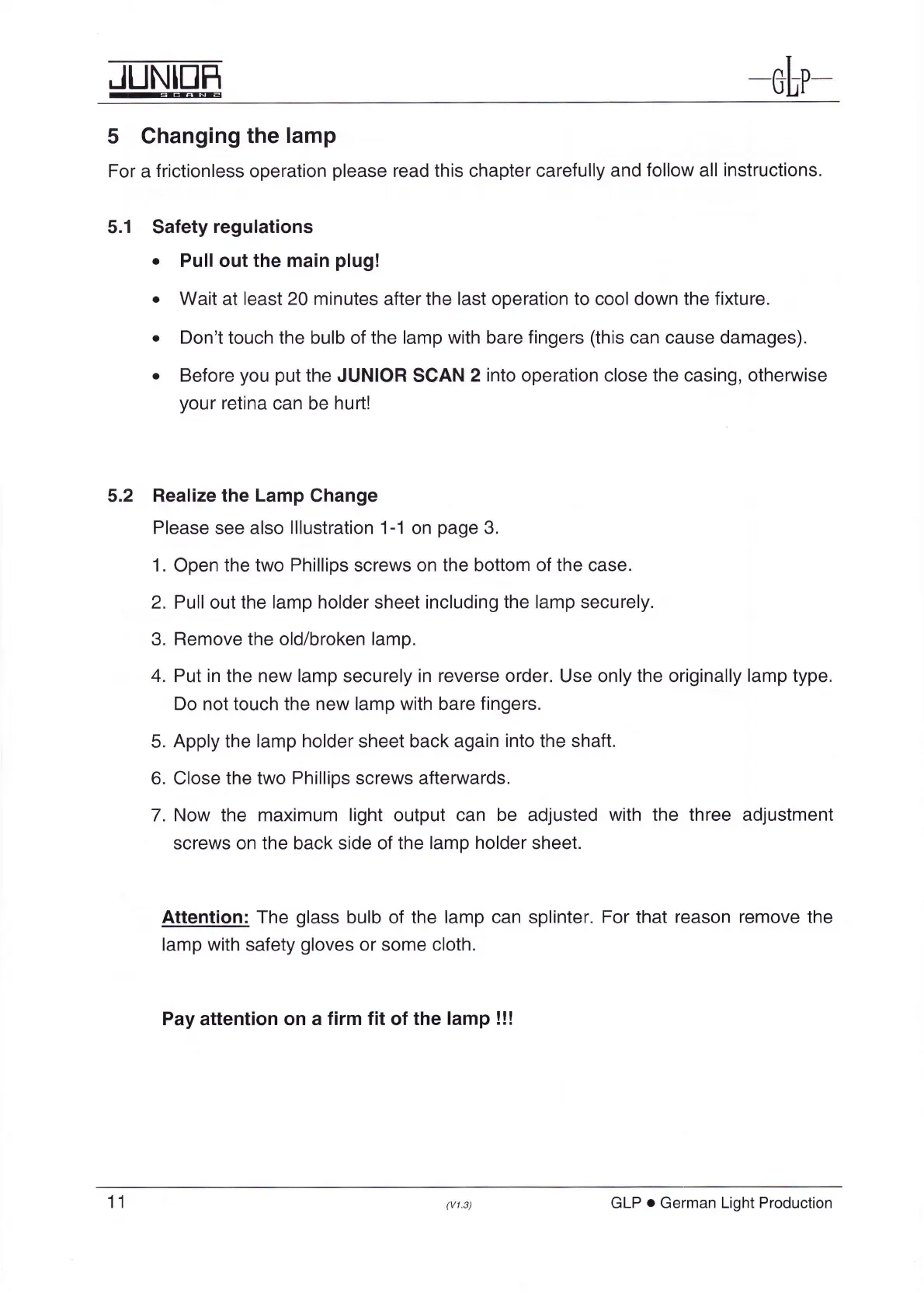

5 Changing
the
lamp
For a
frictionless
operation
please
read this chapter carefully and
follow
all
instructions.
5.1 Safety
regulations
.
Pull out the main
plug!
.
Wait at least
20
minutes
after
the last operation to
cool
down the
fixture.
.
Don't touch the bulb of the lamp with bare
fingers
(this
can cause
damages).
.
Before
you
put
the
JUNIOR
SCAN 2
into
operation close
the casing, othenryise
your
retina
can
be
hurt!
5.2
Realize the Lamp
Change
Please
see also
lllustration
1-1 on
page
3.
1.
Open
the two
Phillips
screws on
the
bottom
of the
case.
2.
Pull out the
lamp
holder sheet
including the lamp securely.
3. Remove the old/broken
lamp.
4.
Put
in
the new lamp securely in
reverse
order. Use only
the
originally
lamp type.
Do not touch the new lamp with bare
fingers.
5.
Apply the lamp holder sheet back again
into
the shaft.
6.
Close
the two Phillips screws afterwards.
7. Now the maximum light
output
can be adjusted
with the three adjustment
screws on the back side of
the
lamp holder
sheet.
Attention: The
glass
bulb
of
the lamp can splinter.
For that reason remove
the
lamp
with
safety
gloves
or
some
cloth.
Pay attention on a
firm fit
of
the lamp
!!!
