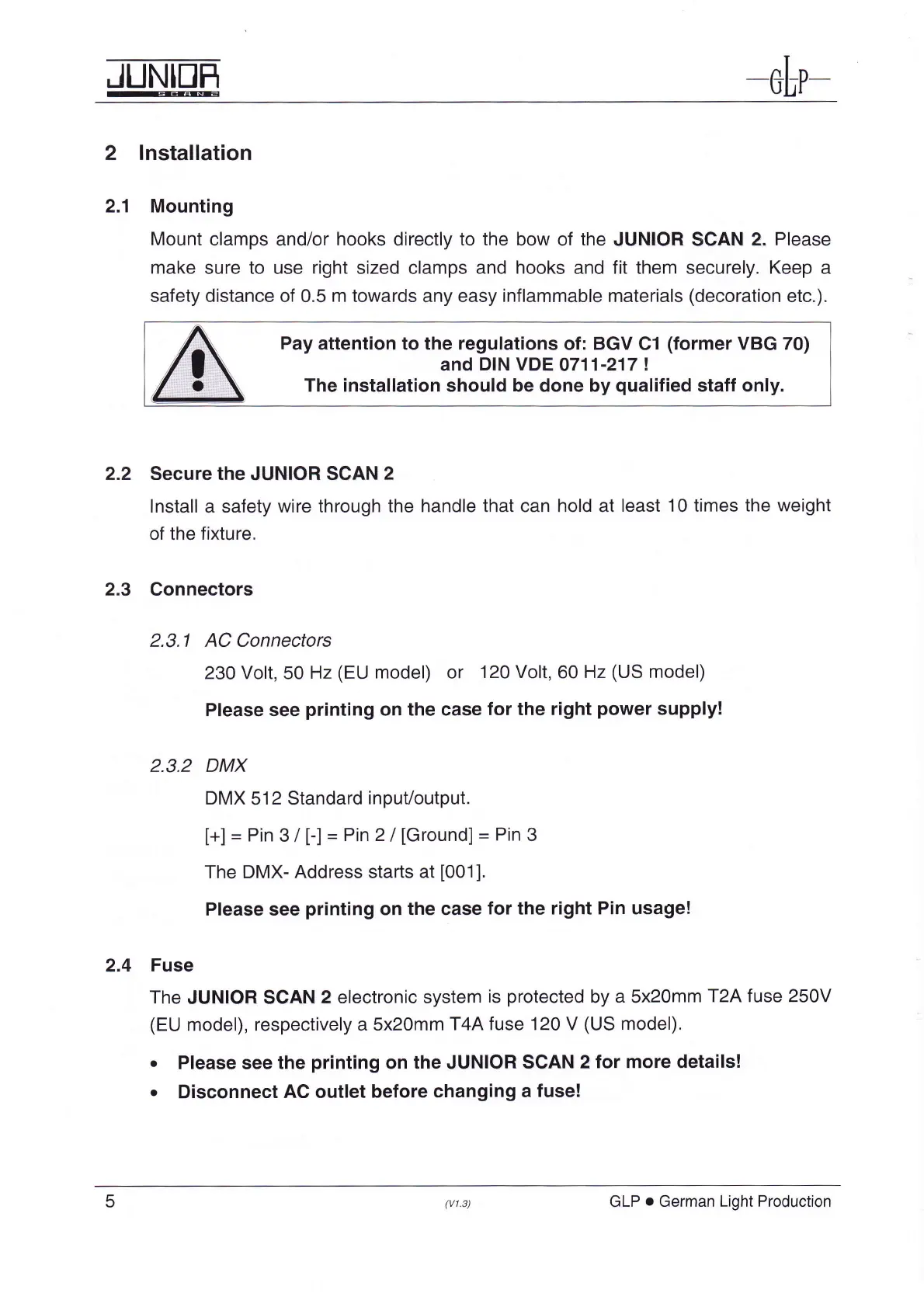

2 lnstallation
2.1 Mounting
Mount
clamps and/or
hooks
directly to
the
bow of
the
JUNIOR
SCAN
2. Please
make
sure
to
use
right
sized clamps
and hooks
and
fit
them
securely. Keep
a
safety distance of 0.5 m towards
any
easy inflammable materials
(decoration
etc.).
Pay
attention to the regulations
of:
BGV
G1
(former
VBG 70)
and
DIN VDE
0711-217
|
The installation should be done by
qualified
staff only.
2.2 Secure the JUNIOR SCAN
2
lnstall
a
safety wire through the
handle that can hold at
least 10 times the
weight
of the fixture.
2.3 Connectors
2.3.1 AC Connectors
230 Volt,50
Hz
(EU
model) or
120 Volt,60 Hz
(US
model)
Please see
printing
on
the case
for the
right
power
supply!
2.3.2 DMX
DMX
512 Standard
inpuVoutput.
[+] =
Pin
3/
t-l
=
Pin 2
/
[Ground]
=
Pin
3
The DMX- Address starts at
[001].
Please see
printing
on the case
for the right Pin usage!
2,4 Fuse
The
JUNIOR SCAN
2 electronic system
is
protected
by
a
5x20mm
T2A fuse 250V
(EU
model), respectively a 5x20mm
T4A fuse 120 V
(US
model).
.
Please see the
printing
on the JUNIOR
SCAN
2lor
more details!
.
Disconnect
AC outlet
before changing
a fuse!
