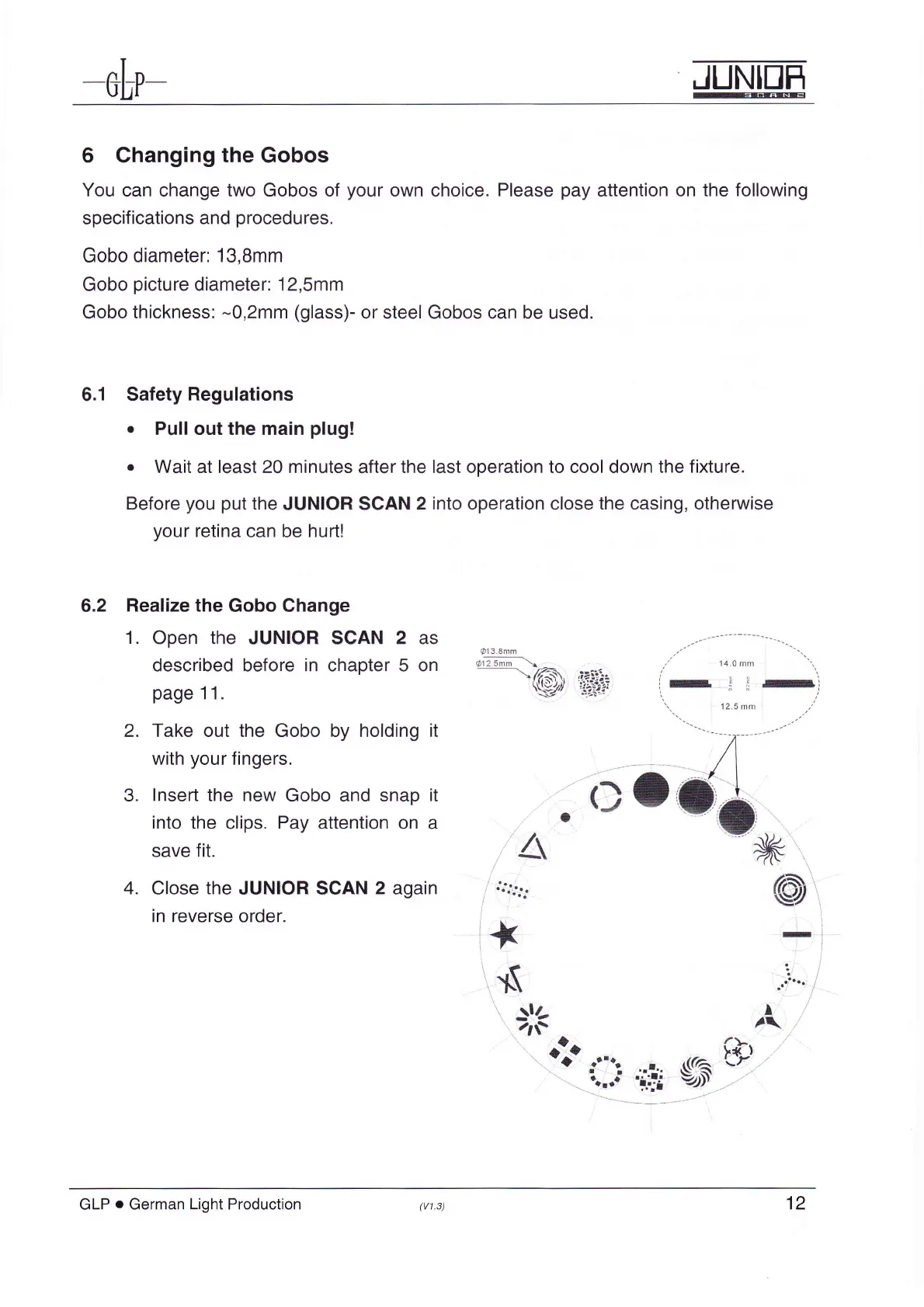

6 Changing
the
Gobos
You can
change
two Gobos of
your
own choice.
Please
pay
attention
on the
following
specifications
and
procedures.
Gobo diameter:
13,8mm
Gobo
diameter: 12,5mm
Gobo
thickness:
-0,2mm
(glass)-
or steel Gobos can be used.
6.1
Safety
Regulations
.
Pull out the main
plug!
o
Wait at least 20 minutes
after
the last operation to cool
down
the fixture.
Before
you put
the
JUNIOR
SCAN 2
into
operation close the
casing, otherwise
your
retina
can be hurtl
6.2
Realize the
Gobo Change
1.
Open
the
JUNIOR
SCAN 2 as
described before
in chapter 5 on
page
1 1.
2. Take out the Gobo by holding it
with
your
fingers.
3.
lnsert
the
new
Gobo and snap
it
into the
clips.
Pay
attention on a
save
fit.
4.
Close
the
JUNIOR
SCAN
2
again
in reverse
order.
