Vehicle Care 10-35

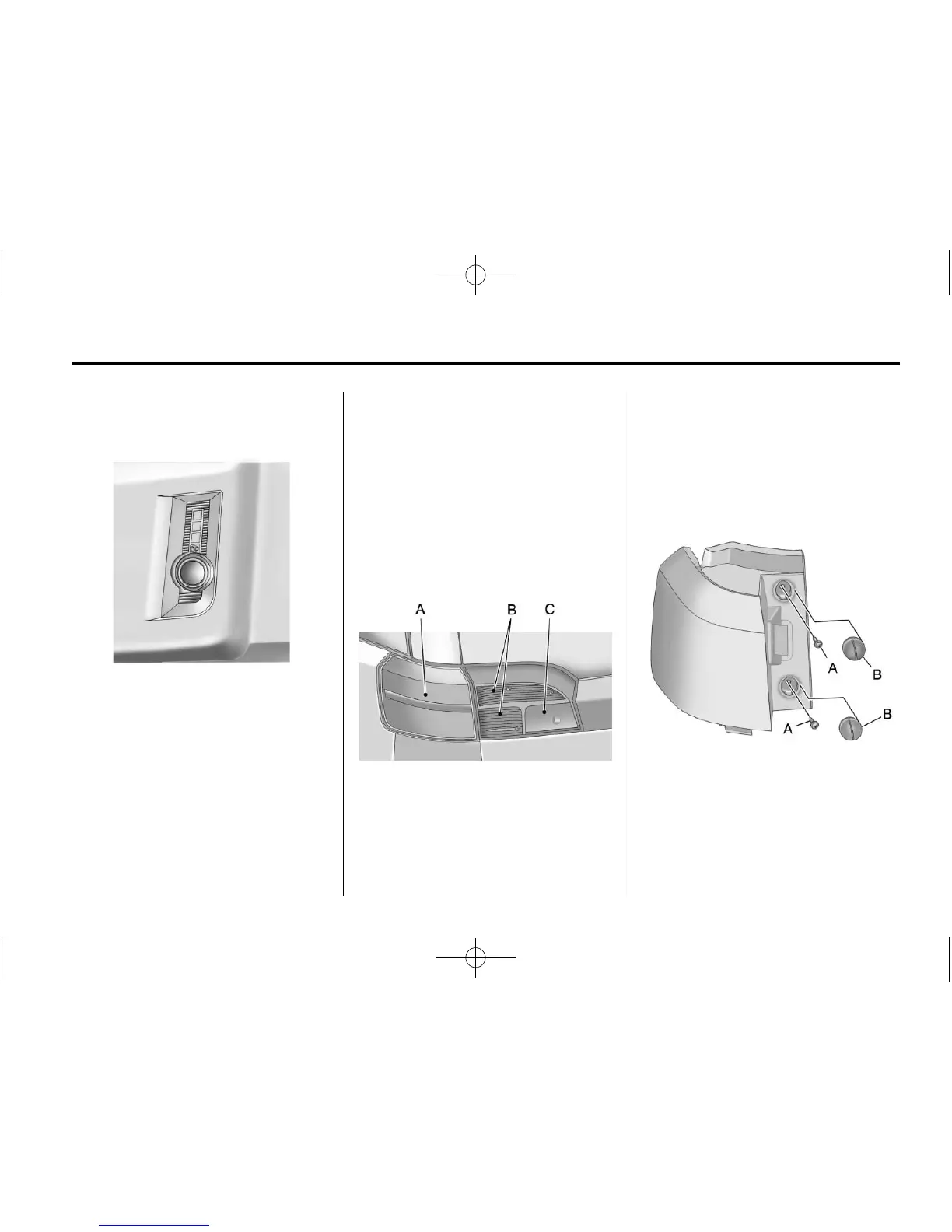

Fog Lamps
To replace one of these bulbs:
1. Locate the fog lamp assembly
under the front facia.
2. Disconnect the bulb socket from
the electrical connector, turn,
and pull out the bulb assembly.
3. Remove the old bulb from the
bulb socket and push the new
bulb straight into the bulb socket
until it connects.
4. Push the bulb socket into the
fog lamp assembly and turn
clockwise to lock it into place.
5. Reconnect the bulb socket to the
electrical connector.
Taillamps, Turn Signal,
Sidemarker, Stoplamps,
and Back-Up Lamps
A. Stop/Tail/Turn Signal/
Sidemarker Lamp
B. Auxiliary Taillamp
C. Back-up Lamp
Stop/Tail/Turn Signal/
Sidemarker Lamp
To replace one of these lamps:
1. Open the liftgate. See Liftgate
(Manual) on page 2‑8 or Liftgate
(Power) on page 2‑9.
A. Screw
B. Screw Cover
2. Remove the two screw
covers (B) from the taillamp
assembly.
3. Remove the two screws (A)
securing the taillamp assembly.
