To reinstall the door, insert the tabs
on the bottom of the door into the
console first, then push the door
back into its original location.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.

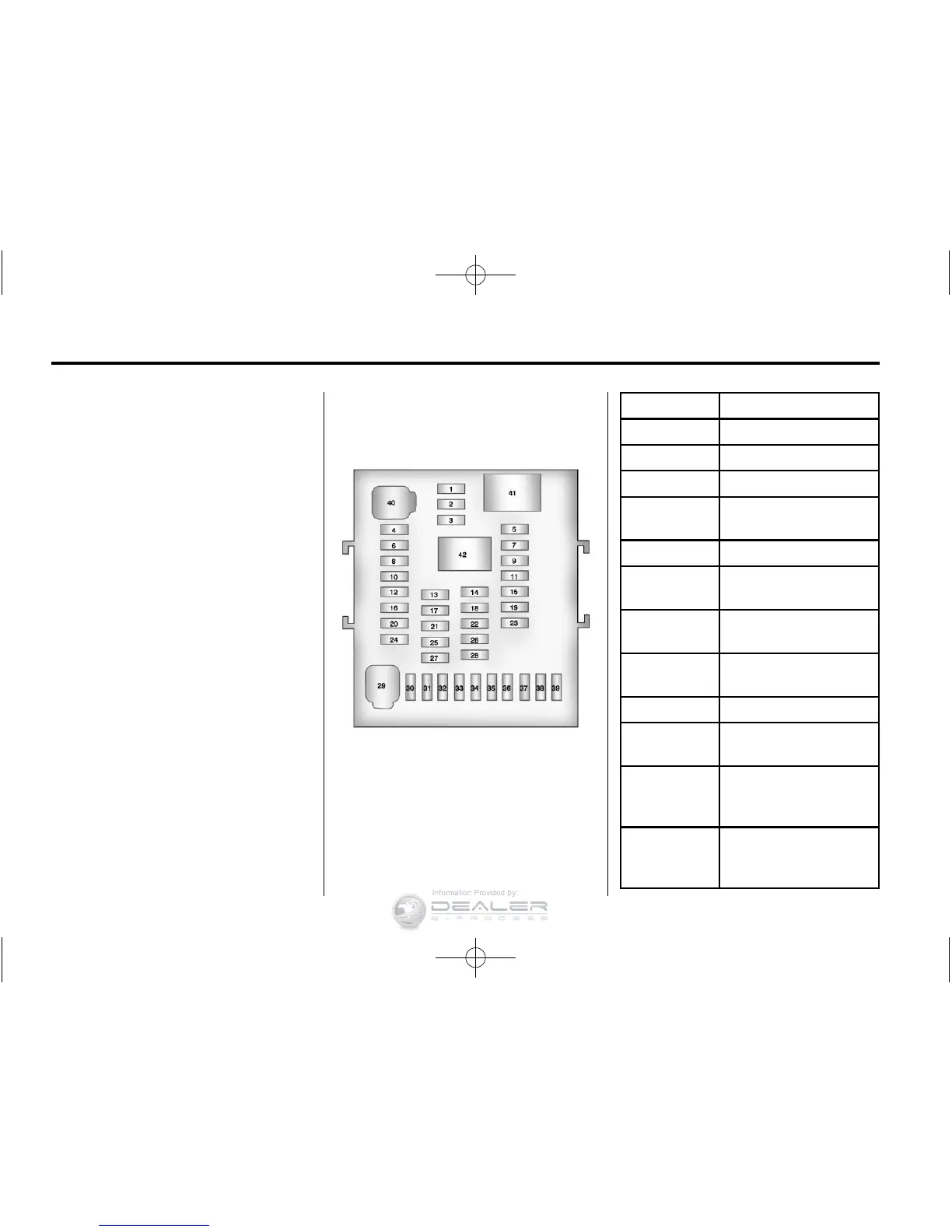

Instrument Panel Fuse Block
Mini Fuses Usage
1 Steering Wheel DM
2 Spare
3 Spare
4
Body Control
Module 1
5 Infotainment
6
Body Control
Module 7
7
Noise Control
Module
8
Body Control
Module 4
9 Radio
10
Special Equipment
Order Battery
11
Ultrasonic Rear
Parking Assist
Module
12
Heater, Ventilation
and Air Conditioning
Battery
