PAGE 34 I NSTRUCTI ON MA NUA L T X3510S / T X3520S / T X3540S
T X3510S / T X3520S / T X3540S I NSTRUCTI ON MA NUA L PAGE 35

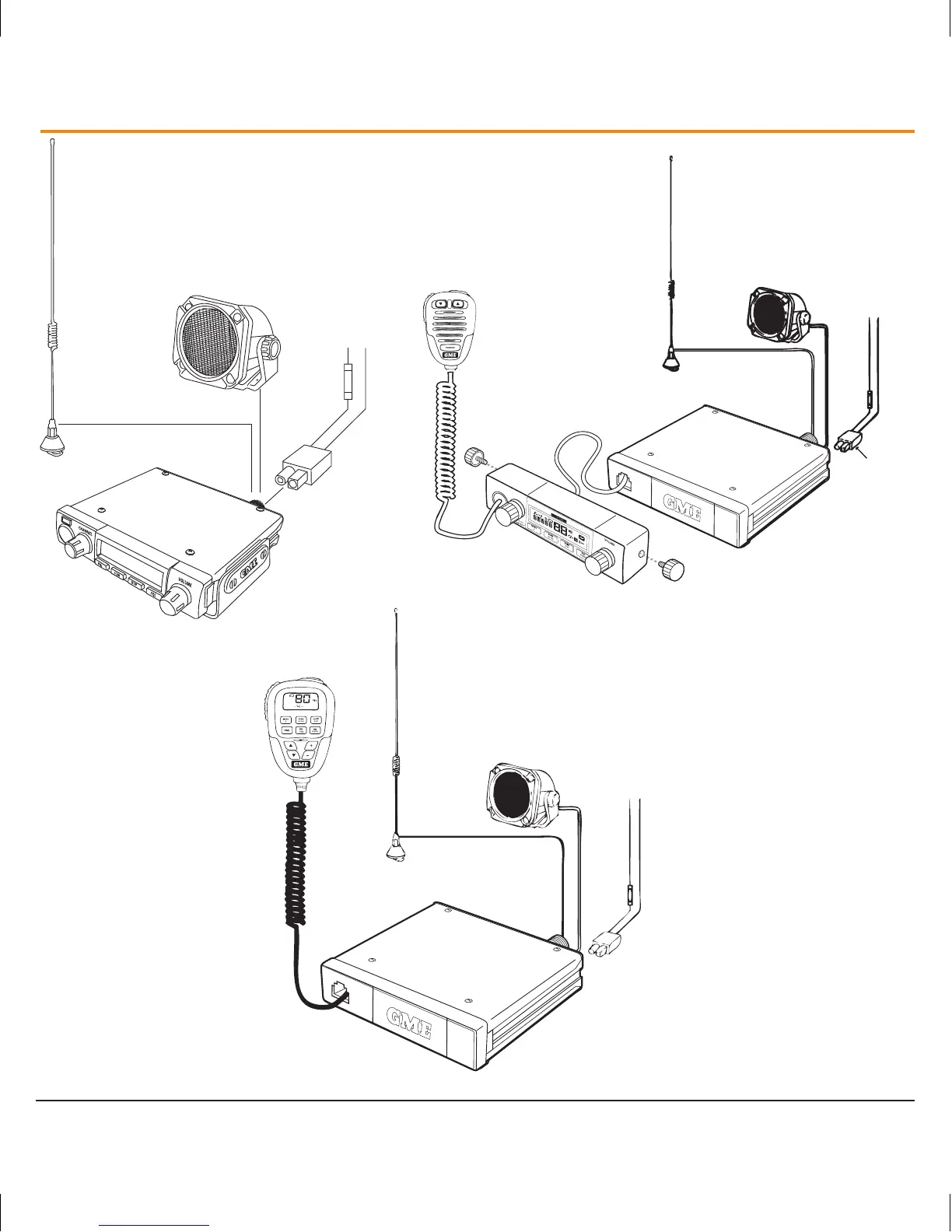

WIRING
RED +
12 V DC
-BLACK
Connector
Plug
Fuse
CHANNEL
TX3520S Main Wiring
Extension Speaker
UHF Aerial
TX3510S Main Wiring
Extension Speaker
Coax Cable
UHF Aerial
RED +
-BLACK
Connector
Plug
DC Socket
Fuse
Antenna
Socket
TX3540S Main Wiring
Coax Cable
Extension Speaker
UHF Aerial
RED +
12 V DC
-BLACK
Connector
Plug
Fuse
