PAGE 6 INSTRUCTION MANUAL TX6100
1. Dual Watch Icon: Appears when the
Dual Watch mode is active.
2. Voice Activated Transmission (VOX)
Icon:
Appears when the VOX mode
is activated.
3. Keypad Lock Icon: Appears when the
keypad is locked.
4. Button Beep Tone Icon: Appears
when the button beep conrmation
tone is selected.
5. High Power Icon: Appears when High
transmitter power is selected.
6. Low Power Icon: Appears when Low
transmitter power is selected.
7. Channel Memory Indicator: Appears
when selected channel is stored in
Scan Memory.
8. Scan Indicator Icon: Appears
when SCAN is enabled and the radio
is scanning.
9. Battery Level Icon: Indicates battery
charge level. Flashes when battery is
almost empty.
10. Channel Display: Indicates the
channel number in use.
11. CTCSS (CTC) Icon: Indicates that
CTCSS tones are enabled on the
selected channel.
12. CTCSS Tone: Displays the selected
CTCSS tone (from 00 – 38) on the
selected channel.
13. DCS Icon: Indicates Digital Coded
Squelch is enabled.
14. Roger-Beep Tone Icon: Appears
when the Roger-Beep tone is
enabled.
15. Squelch/Monitor Icon: Appears
when the Monitor function is
activated. (Squelch is open)
16.
Transmit Icon: Appears when
transmitting.
17. Duplex Icon: Indicates that Duplex
communication has been enabled.

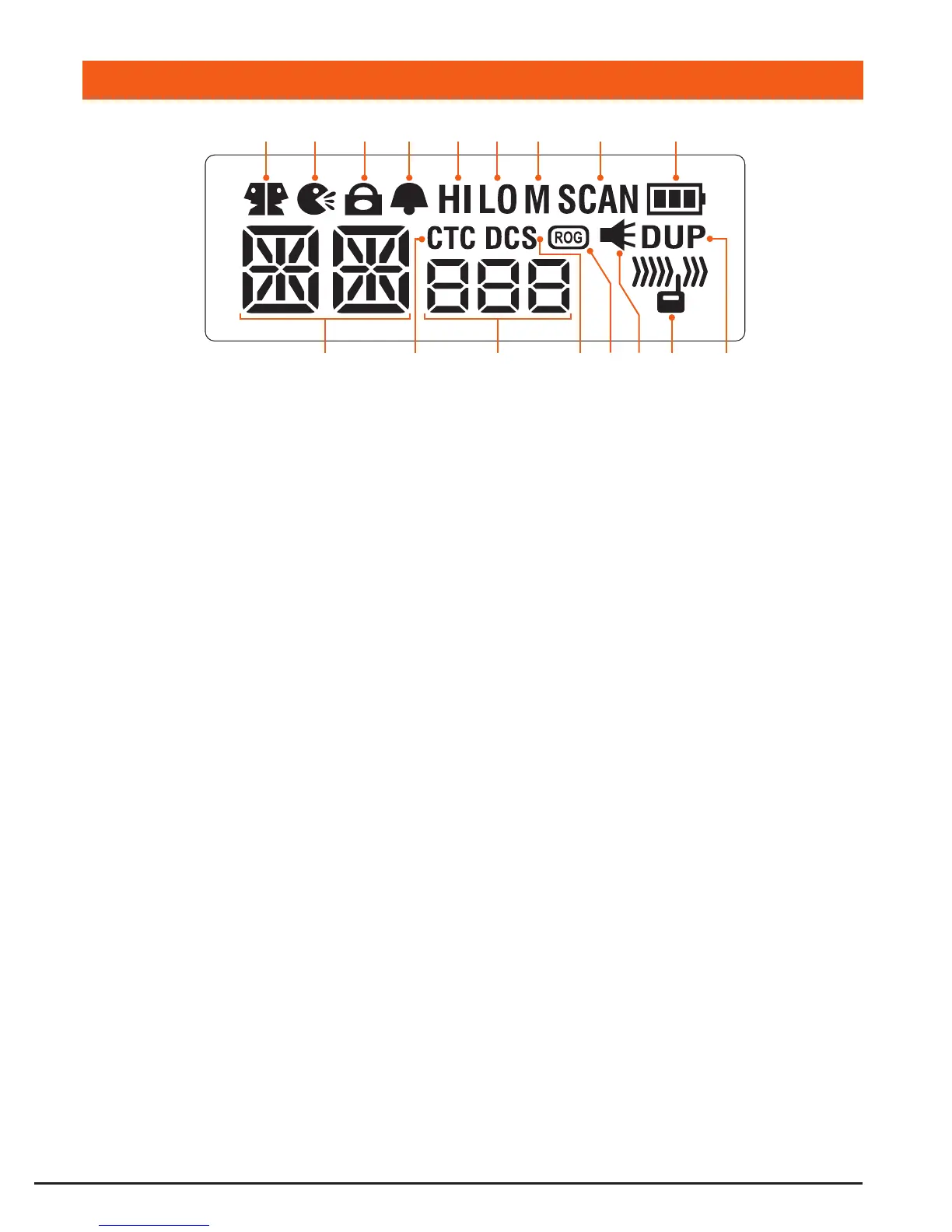

LCD INDICATORS
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17
