Find the 4 legs.
Remove the two bolts from each leg.
Note the numbers on the legs.
Insert so numbers match as in Figure 1.
Your results should look like this.
Please note that the nuts on the legs should
be opposite the hole on the frame. Insert the
bolts through the frame holes and tighten.
Remove the 3 bolts from the right side of the grill.
Install the chimney using those three bolts. Make
sure the gasket is between the chimney and the grill.
Your results should look like this.
Please note that the nuts on the legs should be
opposite the hole on the frame. Insert the bolts
through the frame holes and tighten. Leave a 2 finger
gap opening and always keep this open.
Turn the grill right side up and remove
the box.
Having fun yet?
13 14

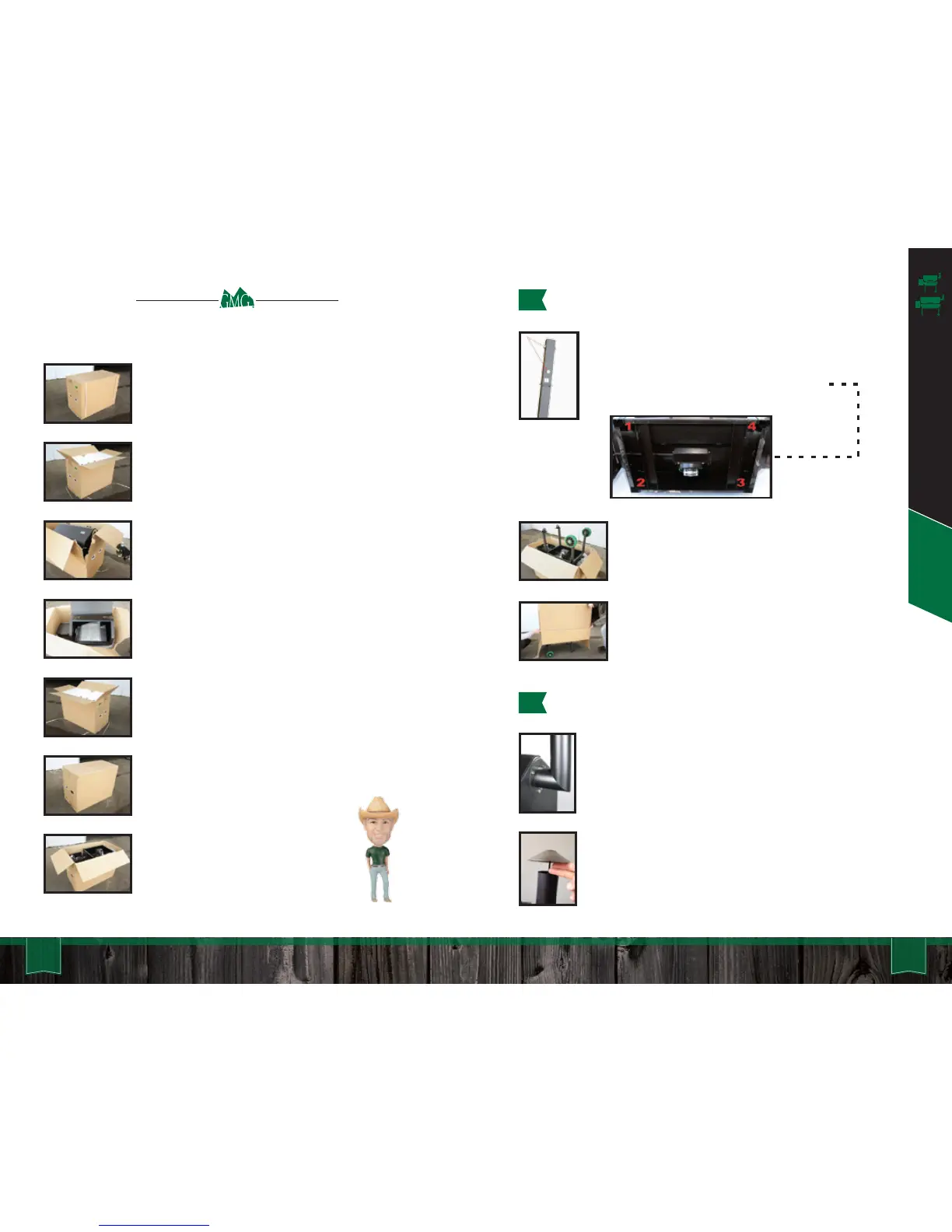

Daniel Boone & Jim Bowie - Assembly
Daniel Boone & Jim Bowie Assembly
INSTALL THE LEGS
Stand the box upright on a level surface.
1
2
INSTALL THE CHIMNEY
Cut and remove the straps.
Cut the packing tape.
Remove the Styrofoam.
2
Cut the right hand corner down about 12”.
This will allow you to open the lid and save
the box to throw away the dunnage.
3
Open the lid on the grill.
Remove all pieces inside the cooking cavity.
Unwrap each piece.
Replace the styrofoam.
Close the cardboard flaps.
Turn the box upside down.
Cut the tape and open the flaps.
Remove the Styrofoam.
Preparation
To Next Page
