D5090 - 5 A SIL 3 Relay Output Module for NE Load G.M. International ISM0109-16
Ordering Information

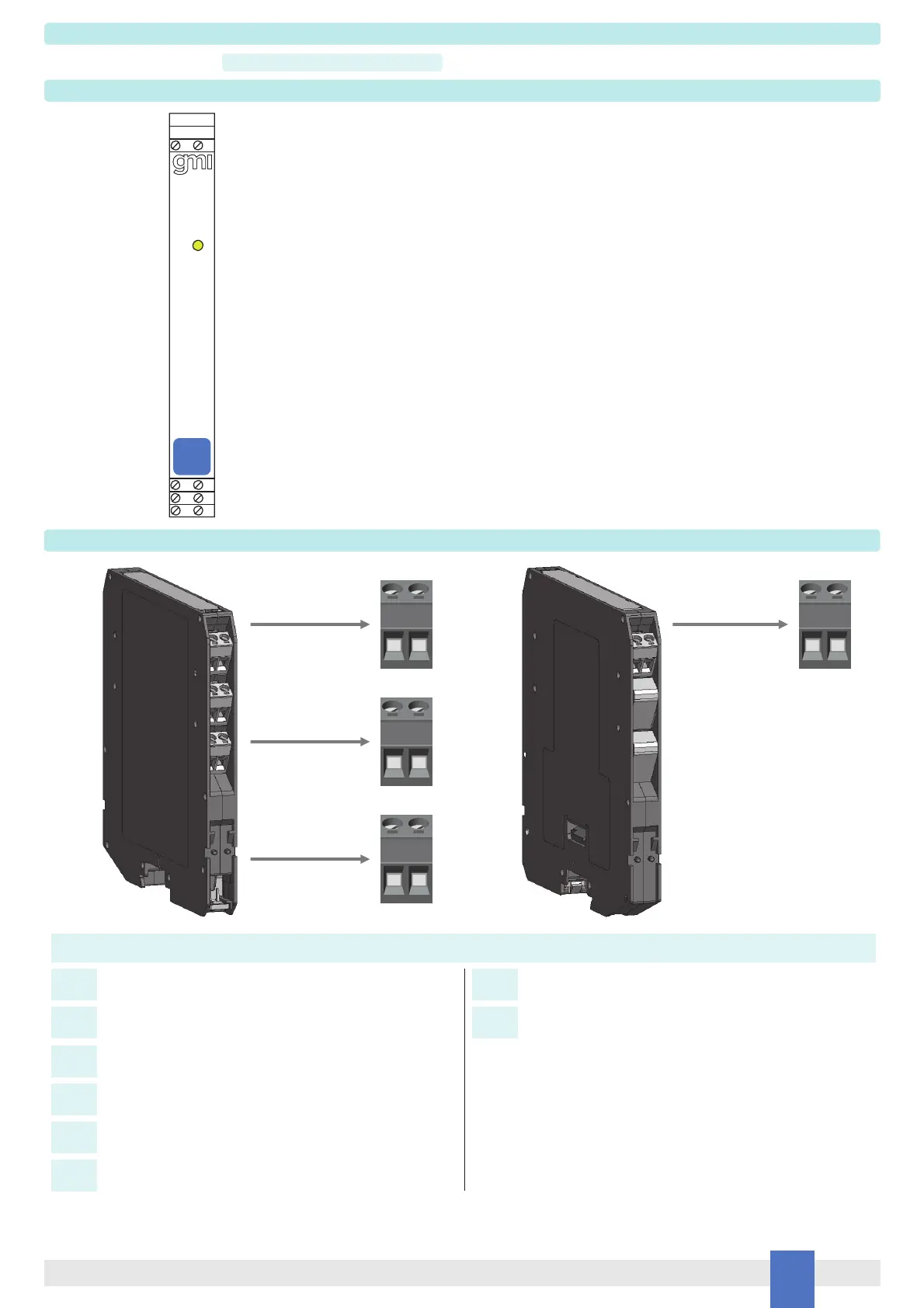

Front Panel and Features
SIL 3 according to IEC 61508:2010 Ed. 2 for Tproof = 14 / 20 yrs (≤10% / >10 % of total SIF).
PFDavg (1 year) 7.01 E-06, SFF 99.17 % for NE Load.
Systematic capability SIL 3
Installation in Zone 2 / Division 2.
SIL 3 contact for NE load and contact for service purpose.
6 A inrush current at 24 Vdc / 250 Vac.
Line input monitoring in-field DIP Switch selectable.
Driving input voltage monitoring.
Input/Output isolation.
EMC Compatibility to EN61000-6-2, EN61000-6-4, EN61326-1, EN61326-3-1 for safety system.
TÜV Functional Safety Certification.
ATEX, IECEx, UL & C-UL, FM & FM-C, INMETRO, EAC-EX, CCC, UKR TR n. 898, TÜV Certifications.
Type Approval Certificate DNV and KR for maritime applications.
Simplified installation using standard DIN-Rail and plug-in terminal blocks or customized Termination Boards.
Model: D5090S
DIN-Rail accessories: Cover and fix MCHP196
CM1 Common pole of Normally Open contact (Out 1)
Terminal block connections
SAFE AREA
NO1 pole of Normally Open contact (Out 2)
CM1 Common pole of Normally Closed contact (Service Load (Not SIL) out)
NC1 pole of Normally Closed contact (Service Load (Not SIL) out)
