D5090 - 5 A SIL 3 Relay Output Module for NE Load G.M. International ISM0109-16
4

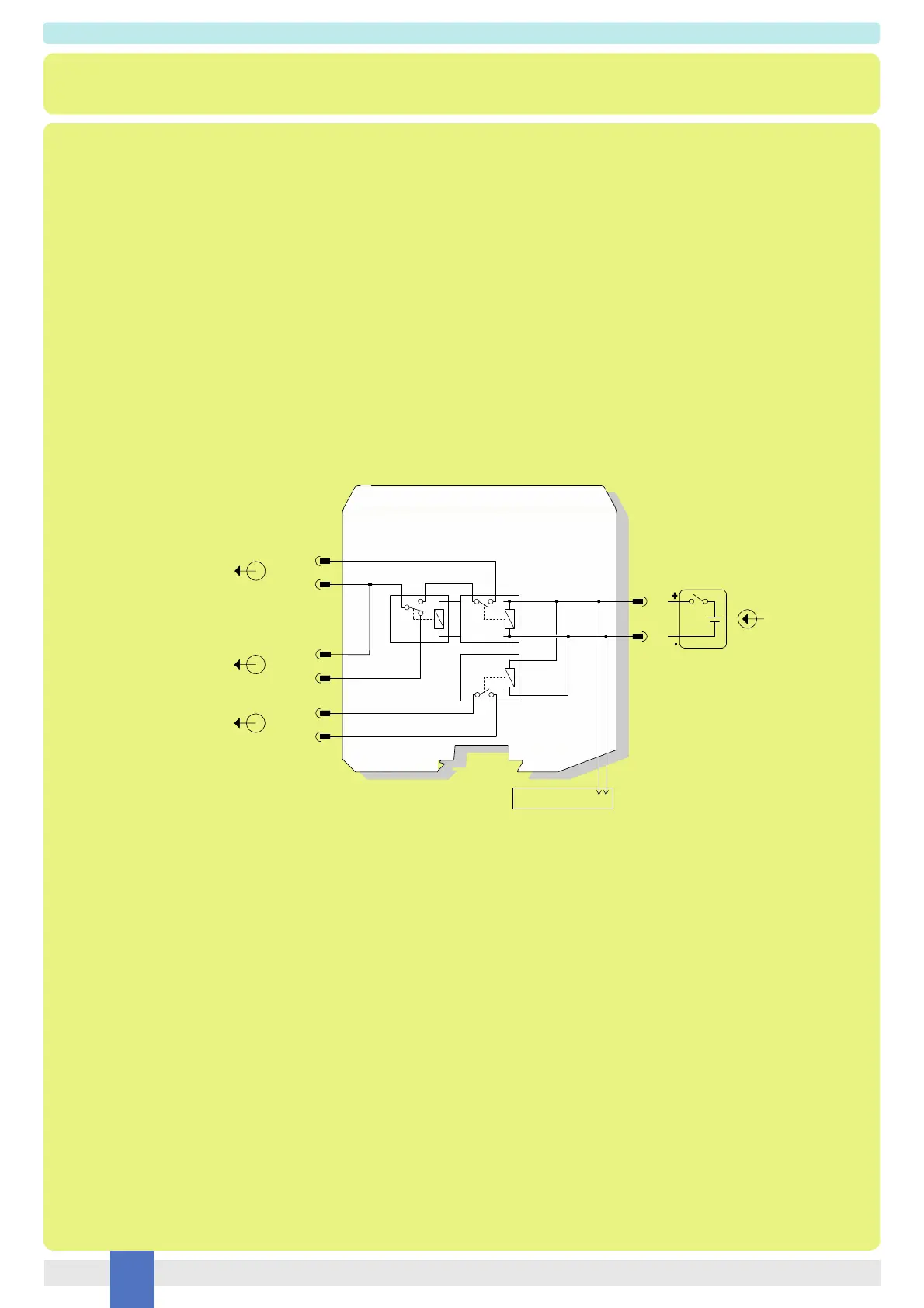

Function Diagram
SAFE AREA, ZONE 2 GROUP IIC T4,
NON HAZARDOUS LOCATIONS, CLASS I, DIVISION 2,
GROUPS A, B, C, D T-Code T4, CLASS I, ZONE 2, GROUP IIC T4
Relay contact shown in de-energized position.
Terminals 7-11 and 8-12 are open; terminals 9-10 are closed.
MODEL D5090S
+
Out 1 (NO contact)
(NO2) 11
(CM1) 7
In
1
2
Service Load Out
Termination
board
connector
Not SIL
Out 2 (NO contact)
(NO1) 8
(NO3) 12
(CM1) 9
(NC1) 10
See the following pages for Functional Safety applications with related SIL value.
