4. INTRODUCTION

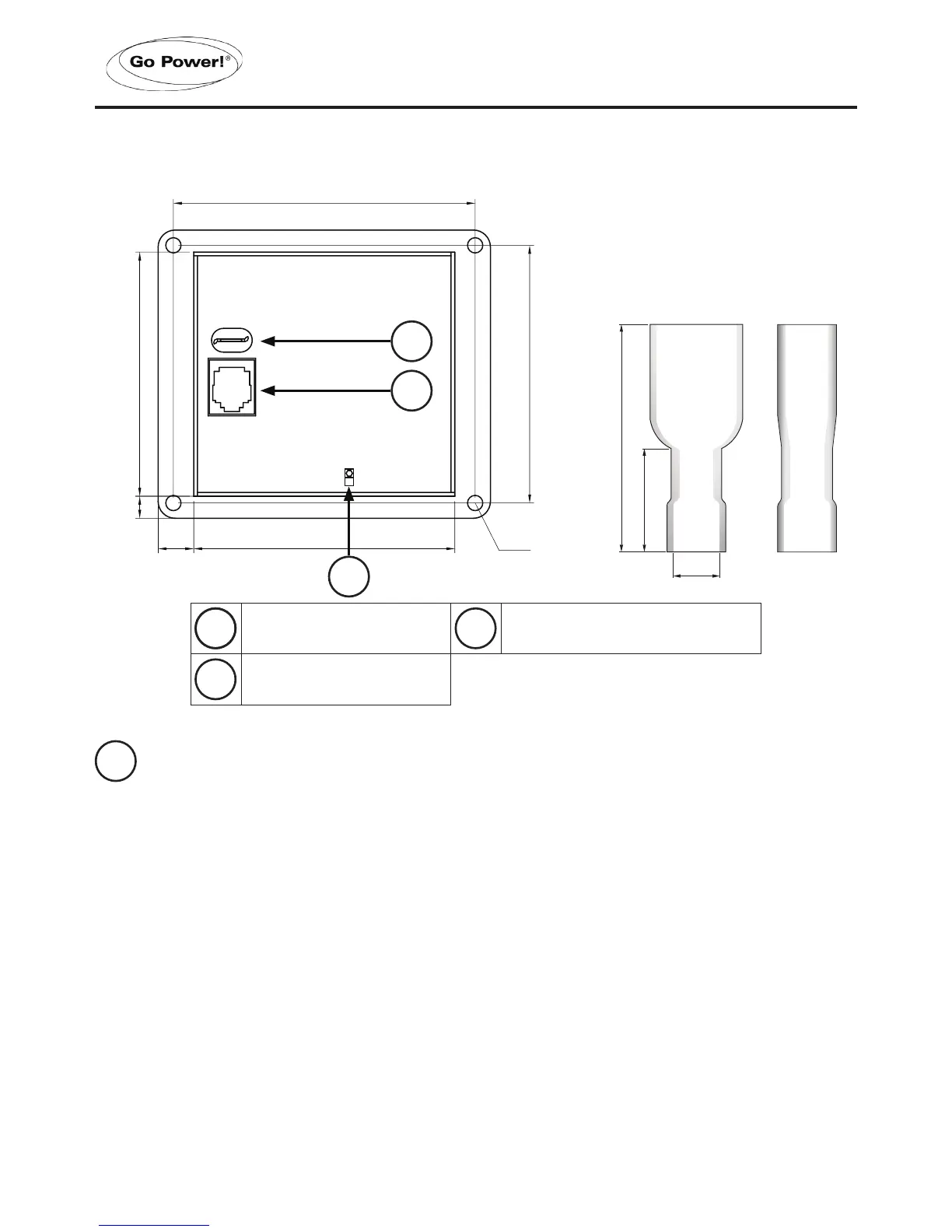

4.2 REAR PANEL INTRODUCTION
89
76
Ø4.5
77
10.5
6.5 72
AUX
22±1.0
10±0.5
Ø4.5±0.3
5
6
7
5 AUX PORT
Note: the AUX port is only used in work trucks.
The connector (shown above) attached to AUX wire (AWG 14 or 16) must be con-
nected with a 12V / 0.5A fuse.
• Ignition Lockout function:
Turns OFF the inverter when the auxiliary input wiring is connected to the ACC
with 12 volts.
• Return Override function:
Turns ON the inverter when the auxiliary input wiring is connected to the
reversed gear shift with 12 volts.
Connector
AUX port JP1
Phone jack connector
5 7
6
