[page 12] | gpelectric.com
PLANNING LOCATIONS
Vent Cover
Solar Charge
MC4 Red Postive
Extension Cable (25 ft)
MC4 Black Negative
Extension Cable (25 ft)
Items Supplied in
Weekender Kit Only
3.3 LOCATING THE GP-PWM-30 AMP SOLAR CHARGE CONTROLLER
The GP-PWM-30 is included in all Go Power! RV Solar Kits detailed in this manual except for the expansion kits (Retreat-E,
Overlander-E). The GP-PWM-30 provides the necessary protection for the RV battery system. A condensed version of the
installation instructions appear in this manual. However, please read the full installation manual included with the GP-PWM-30
Solar Charge Controller.
1. Plan where the GP-PWM-30 solar charge controller will mount, see Figure 3-B.
• The GP-PWM-30 is designed to be mounted vertically in an indoor location inside a weatherproof enclosure.
•
Ideally the GP-PWM-30 should be located so it can be easily seen for monitoring system operation. Locate at
eye level (the backlit LED aects viewing angle)
• The location will need access to the cable ends from the solar panels and the battery compartment.
Note
WARNING: Failure to secure the GP-PWM-30 could cause it to become dislodged while the RV is in transit and
cause severe damage to the unit and/or the RV.

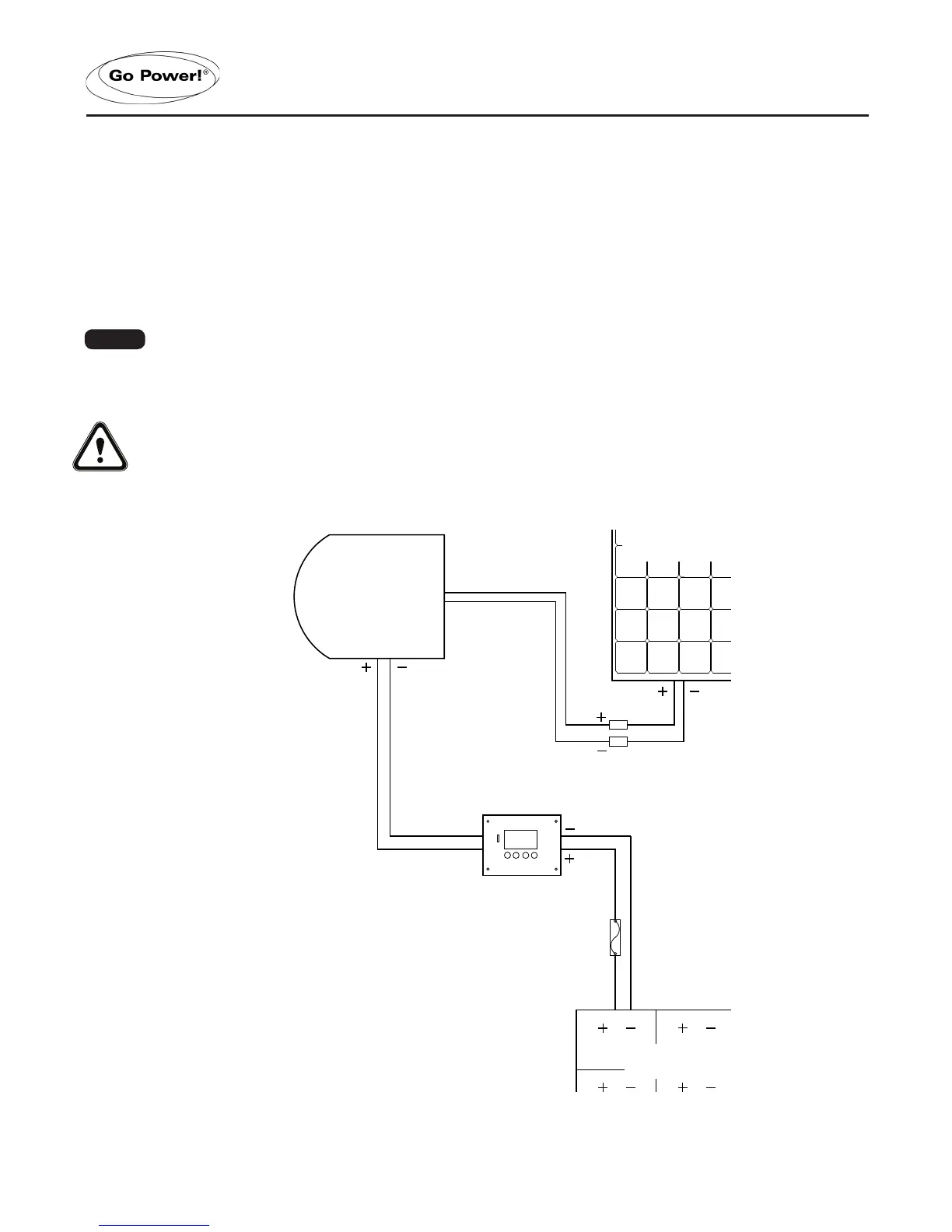

FIGURE 3-B
To Next Page
