Godex RT200i User Manual

26
3 Setting and Control for Operation Panel
3.3 LAN Setting

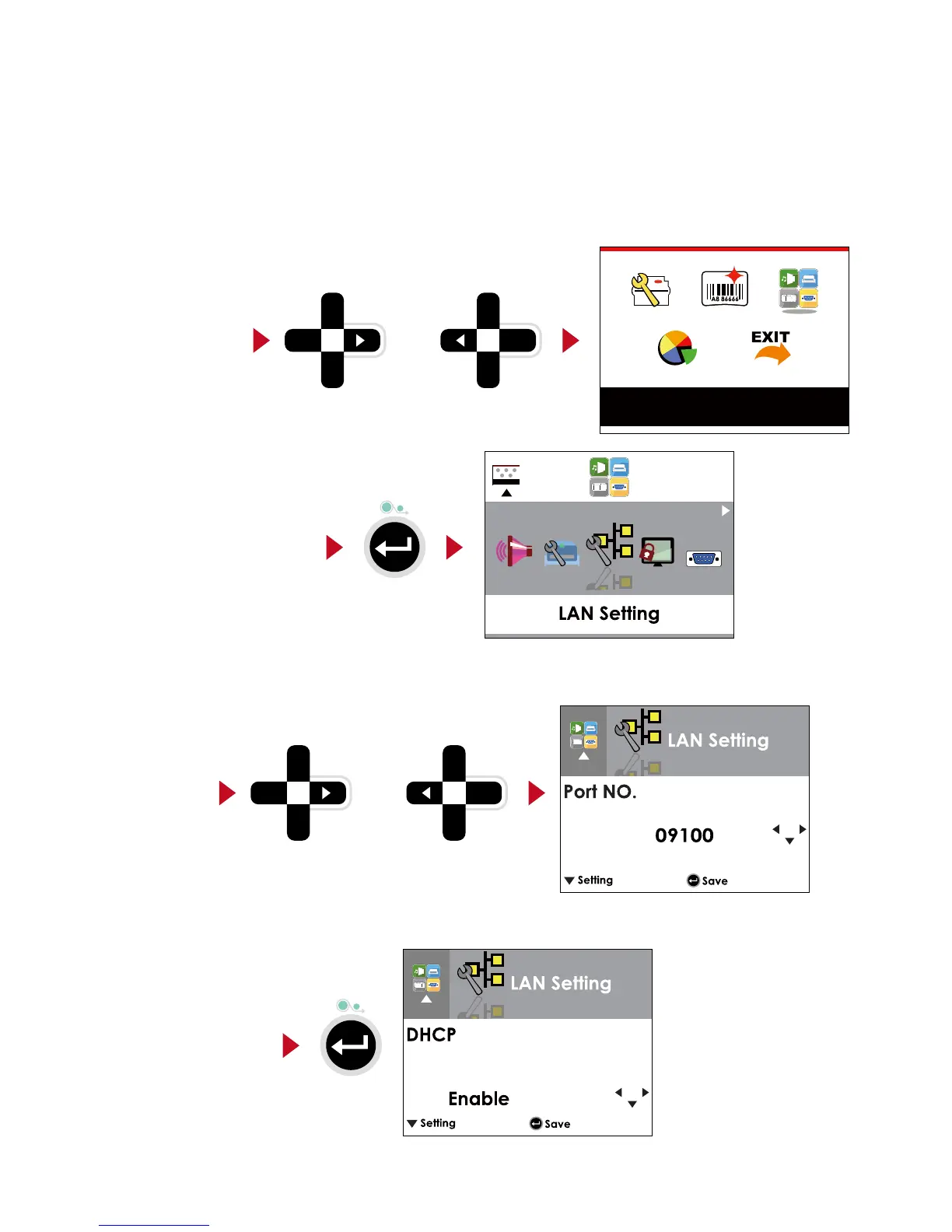

Operations on Setting Page
On MAIN PAGE
，
press

or

button to move the cursor and select the functions.
Select a designated function and press FEED button, you will enter the SETTING PAGES for the function.
Device
or
Select Device
Enter LAN Setting
On LAN Setting PAGE
，
press

or

button to select the setting items.
Select DHCP and press FEED button, you will be able to setup DHCP function
or
Select a
designated funcition

Godex RT200i Specifications

General

Print technology	Direct thermal / Thermal transfer
Maximum resolution	203 x 203 DPI
Maximum print height	1727 mm
Maximum printing width	54 mm
Display	LCD
Product color	Black
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Flash memory	8 MB
Certification	CE (EMC), FCC Class A, CB, CCC, cUL
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, EAN128, EAN13, EAN8, MaxiCode, PDF417, POSTNET, QR Code, UPC-A, UPC-E
Windows code pages supported	1250, 1251, 1252, 1253, 1254, 1255, 1257
Ribbon width	59 mm
Core diameter	25.4 mm
Ribbon length	110 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	127 mm
Storage temperature (T-T)	-20 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	30 - 85 %
Power requirements	100-240V, 50-60Hz
Compatible operating systems	Windows 2000, XP, Vista, 7, Windows Server 2003, 2008

Weight and Dimensions

Depth	254 mm
Width	136 mm
Height	175 mm
Weight	2000 g
