04. Focus Assist Beam
01. Flash Head
02. LED Modeling Lamp(01~10)
09. LCD Panel
08. Hotshoe
03. Wireless Sensor
06. Type-C USB Port
10. Hotshoe Fixing Buckle
11. Lithium Battery
07. Battery Remove Button
05. Sync Cord Jack
● Body
● Control Panel
● LCD Panel

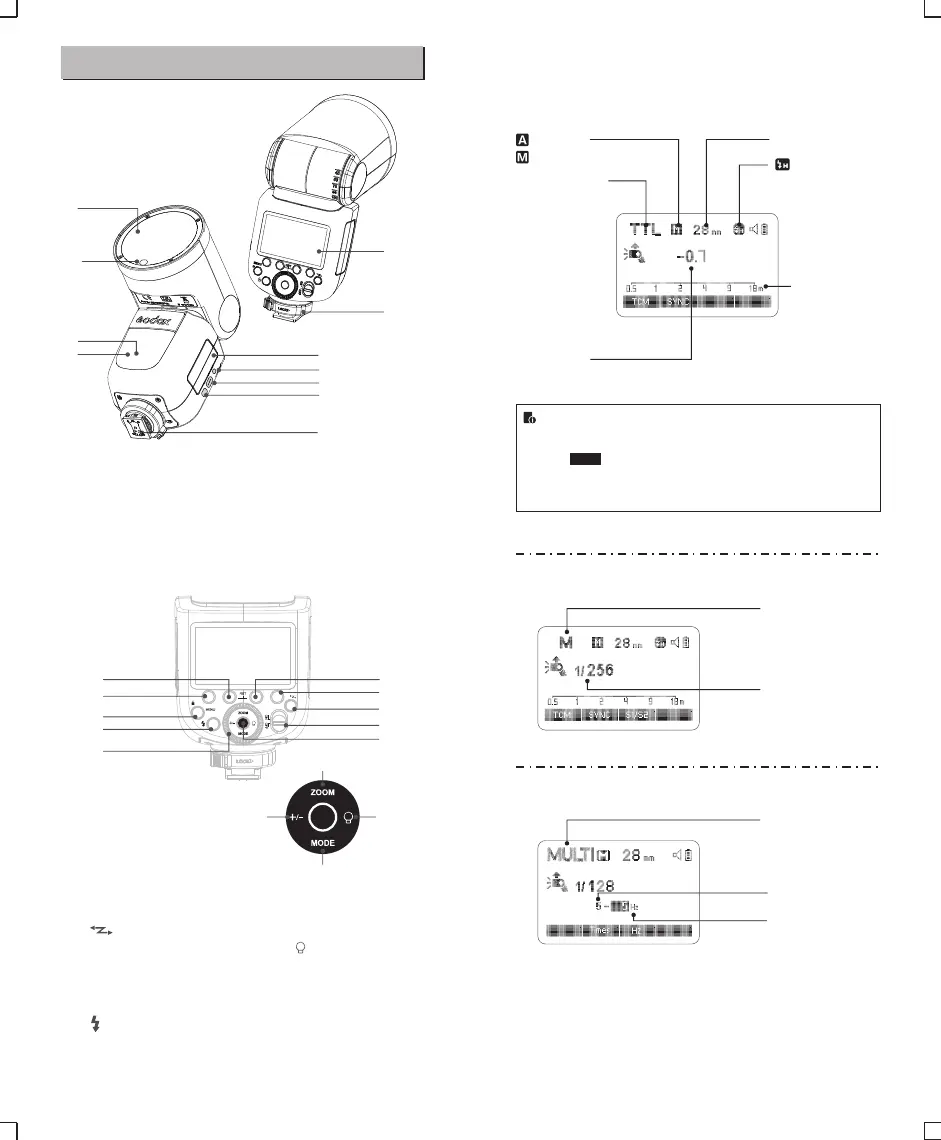

Name of Parts
(1)TTL Autoflash
Zoom : zoom display (Page 51)
: Automatic
: Manual(Page 41)
TTL : TTL autoflash
Focus length (Page 1)5
: High-speed sync
(Page 40)
Distance indicator
display
Flash exposure
compensation amount
(2)M Manual Flash
● The functions displayed above function buttons 1 to 4, such
as and <M/A/B/C/D> , change according to settings’
status.
● When a button or dial is operated, the LCD panel illuminated.
● The display will only show the settings currently applied.
M : Manual flash
Manual flash output
(3)Multi Flash
Multi : Stroboscopic flash
Number of flashes
Flash frequency
23. Function Button 2
22. Function Button 1
16. ON/OFF Power Switch
12. <MENU>Flash Menu
Button/Locking Button
14. Select Dial
17. < > Test Button / Flash
Ready Indicator
15. Set Button
13. < >Wireless Selection
Button
18. <ZOOM> Focus Length
Setting
20. < >Modeling Lamp Setting
19. <MODE>Mode Selection
Button
21. <+/->Power Output
24. Function Button 3
25. Function Button 4
SYNC
- 33 - - 34 -
09
05
07
08
04
03
01
06
02
10
11
17
23
24
15
13
12
25
16
22
14
18
19
21 20
