START-UP

Operation elements and display

The device is adjusted once when it is put into operation. After start-up the device operates in

display mode with the top closed.

From device version V4.xx the display is a two-line LCD display with 2 x 16 characters.

The display has green background lighting for best readability in all lighting conditions.

SmartBox

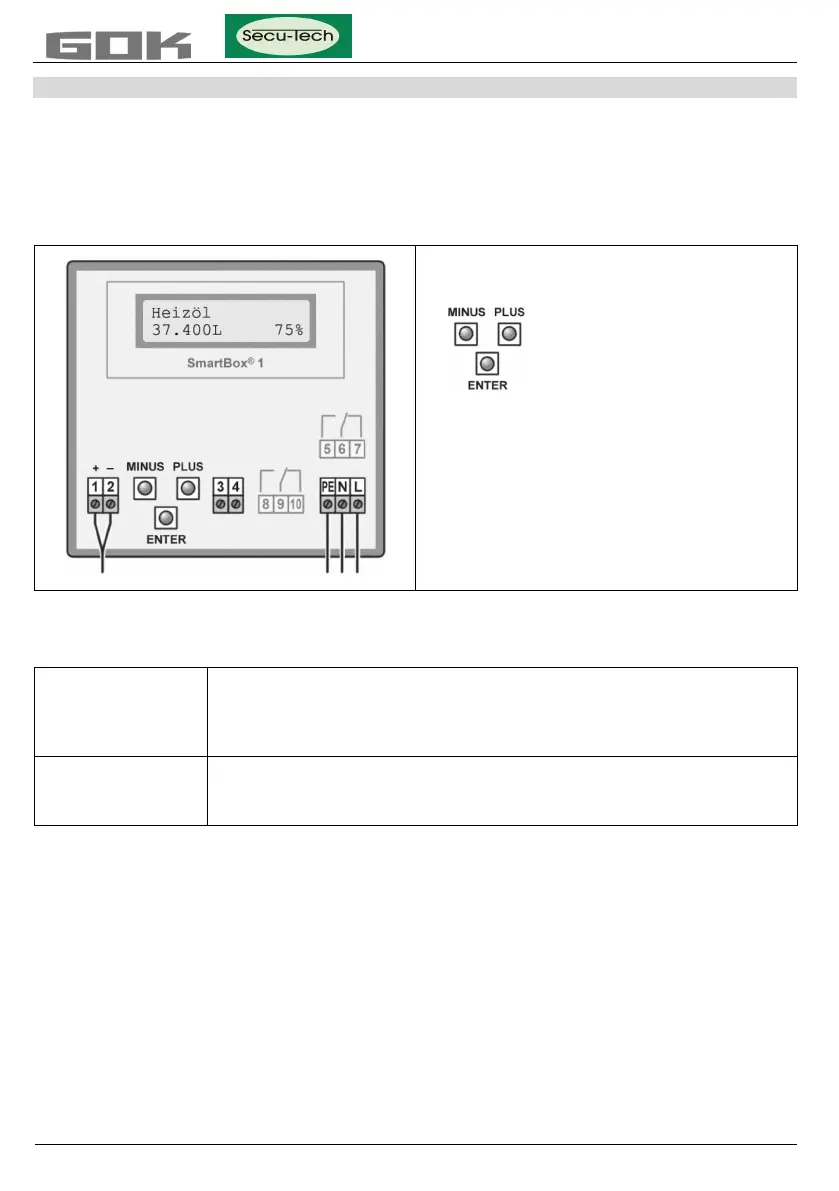

1, 2 and 3 has the following display:

The device is adjusted via the three small

blue buttons:

These are located on the

motherboard between the

terminals.

Select the language (German, English or

French) in menu step 18.Language (see

page 11).

After the level indicator has been installed, it

can be started up.

Before programming, you need to ascertain the tank data and enter the values into the right

column input value of the following table. Then, enter the values for the individual entry steps.

Optionally, the device can also be programmed as explained in the enclosed Quick Guide.

Setting a

parameter:

Press [Enter] to open setup mode.

Select the desired setting parameter via PLUS [+].

Press [Enter] to call up the value selection for the parameter.

Set the value with MINUS [-] / PLUS [+], press [Enter] to save.

Quitting the

setup mode:

You can quit the setup mode at any time.

Select “8.Exit“ and press [Enter]

 to go back to the standard display mode.
