GL102B USER’S GUIDE GOLANDERUSA.COM
8 9 10
1 2
3
4 5
7
6
11
12
13
14
RRW
12V DC
Buzzer
PT100
9-30V DC
+
-
+
-
12V
DC

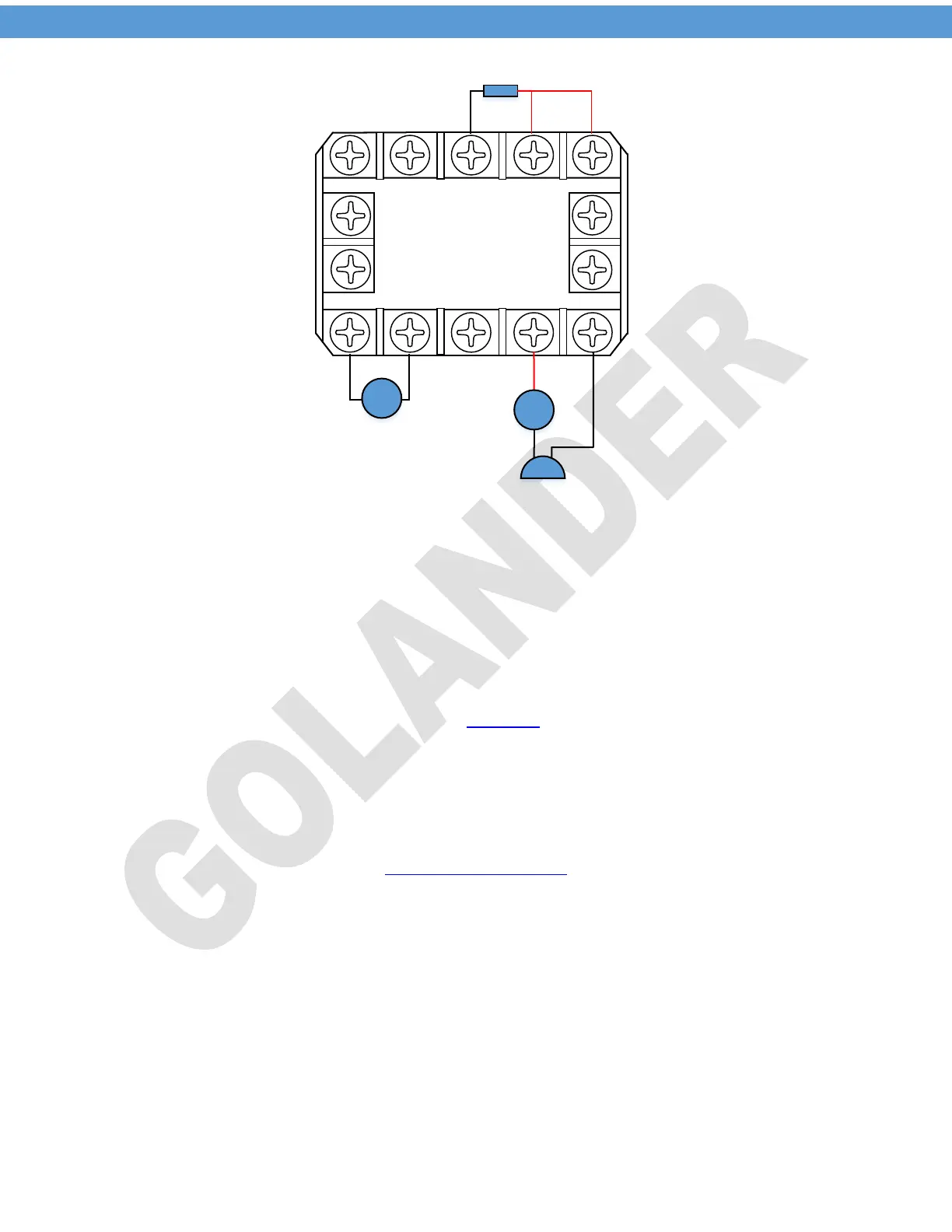

Figure 9. Use J1 Relay for Alarm
12 Quick Guide
First, set the parameter Inty to the sensor type connected to the controller if it is not a K type thermocouple,
set the parameter Outy for the output control mode. For controlling a mechanical relay in PID mode, change
the cycle time ot to 5~60 seconds to save the lifetime of the relay. Then you are ready to go. For PID mode,
if the system is not able to hold the temperature, run Auto tune
. Set the alarm parameters AH, AL if needed.
If the controller displays EEEE, that means something wrong with the input or with the setting of the input.
Please check the sensor connection and the Inty parameter setting. Questions? Please contact us.
