Golander GL102B - Page 9

GL102B USER’S GUIDE GOLANDERUSA.COM
8 9 10
1 2
3
4 5
7
6
11
12
13
14
9-30V DC
+
-
+
-
24V DC
24V DC Solenoid Valve
PT100
RRW

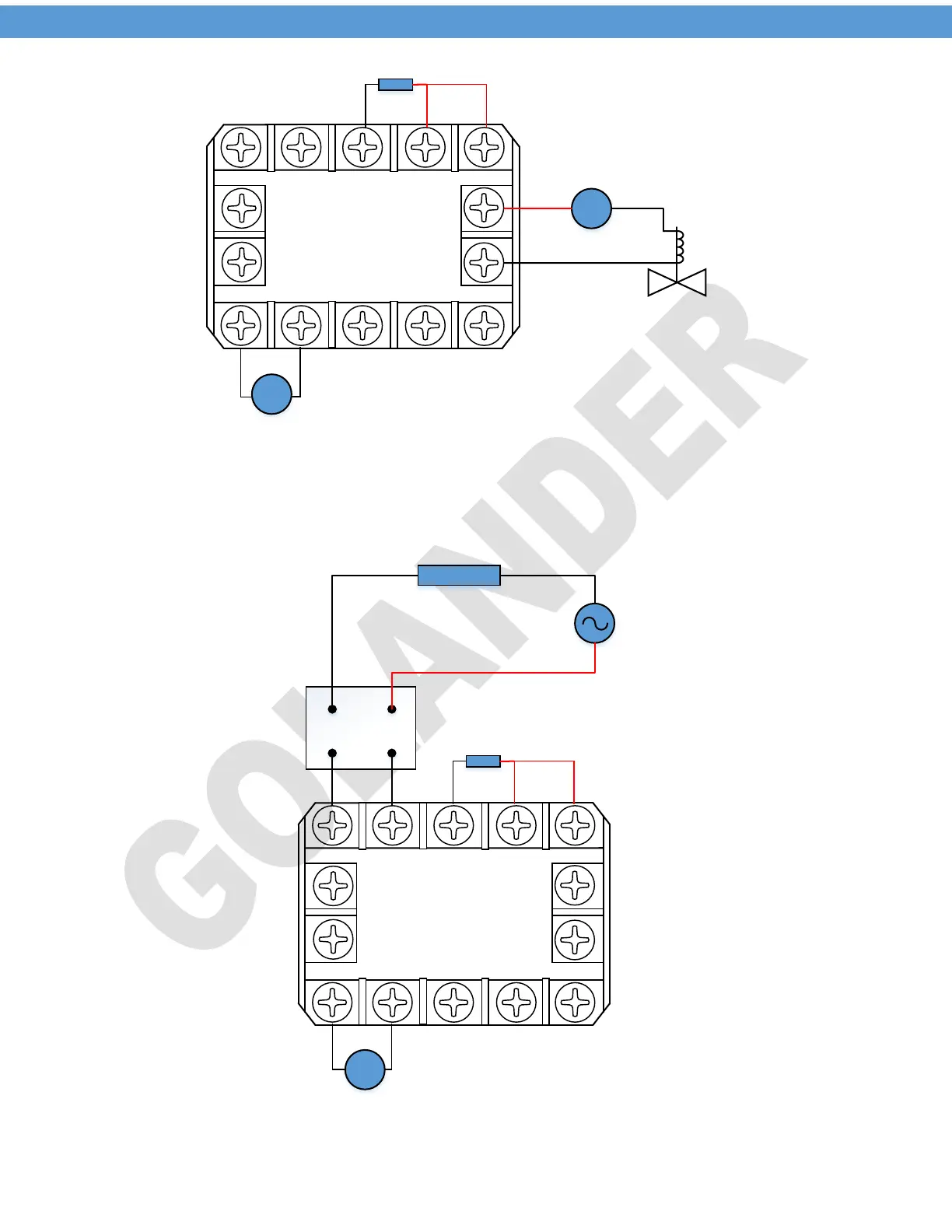

Figure 6. Solenoid Valve Wiring
11.3 Control a 110V Heater via SSR
8 9 10
1 2
3
4 5
7
6
SSR
11
12
13
14
110V
AC
Heating Element
N
L
+
-
3 4
2 1
PT100
RRW
9-30V DC
+
-
Figure 7. Heater Wiring
