GOLDONI IDEA Series User Manual

94
6.9.1 Electric schematic legend for Model 35-37-40-1046-1047-1247
(see last page)
1 Multi-system instrument
2 Light switch
3 Ignition switch
4 Fuse box
5 Turning indicator switch
6 Maxi main fuse 60A
7 Horn
8 Floodlight
9 Hydrostop
10 Light rear light
11 Right light licence plate light
12 7-pin socket
13 Left rear light licence plate light
14 Left rear light
15 Left parking light turning indicator
16 Left front headlight
17 Right front headlight
18 Right parking light, turning
indicator
19 Hazard light
20 Blinkers
21 Lift control select switch
22 Cab connector
23 Power supply connector (optional)
24 Alternator
25 Starter motor
26 Battery 12V
27 Start enable switch
28 Lift raise solenoid
29 Lift raise enable switch
30 Lift lower solenoid
31 Lift lower solenoid connector
32 Controlled position and draft
central control unit power supply
33 Motorstop solenoid
34 Parking brake indicator light switch
35 PTO clutch indicator light switch
36 Front drive engaged indicator light
switch
37 Glow plug
38 Air filter clogged sensor indicator
light
39 Engine oil pressure sensor
indicator light
40 Hydraulic fluid filter clogged
sensor indicator light
41 Water temperature sensor
42 Fuel level detector

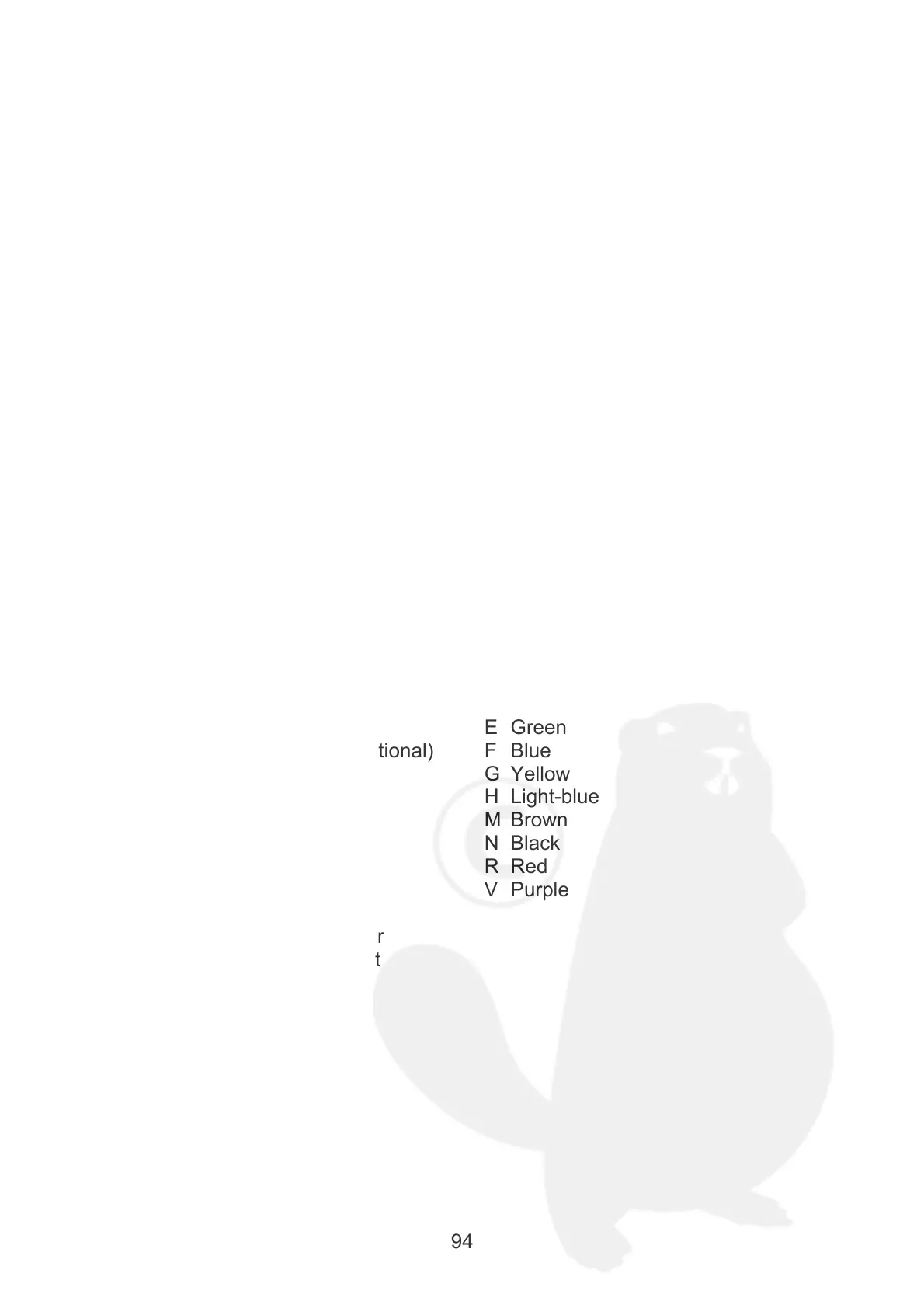

WIRE COLOURS
A Orange
B White
C Pink
D Grey
E Green
F Blue
G Yellow
H Light-blue
M Brown
N Black
R Red
V Purple
