POWER SUPPLY UNIT INSTALLATION
FA-GB2/A power supply installation instructions:
Replace the protective cover once the input terminals have been wired.
Please note that current regulations stipulate that the power
supply must be protected by a circuitthermo-magnetic
breaker.
Connect the FA-GB2/Apower supply to the earth connection.
Mount the DIN rail to the wall with the plugs and screws
supplied.
Then attach the power supply by applying slight
pressure.
The power supply can be installed on a DIN 46277 rail.
.

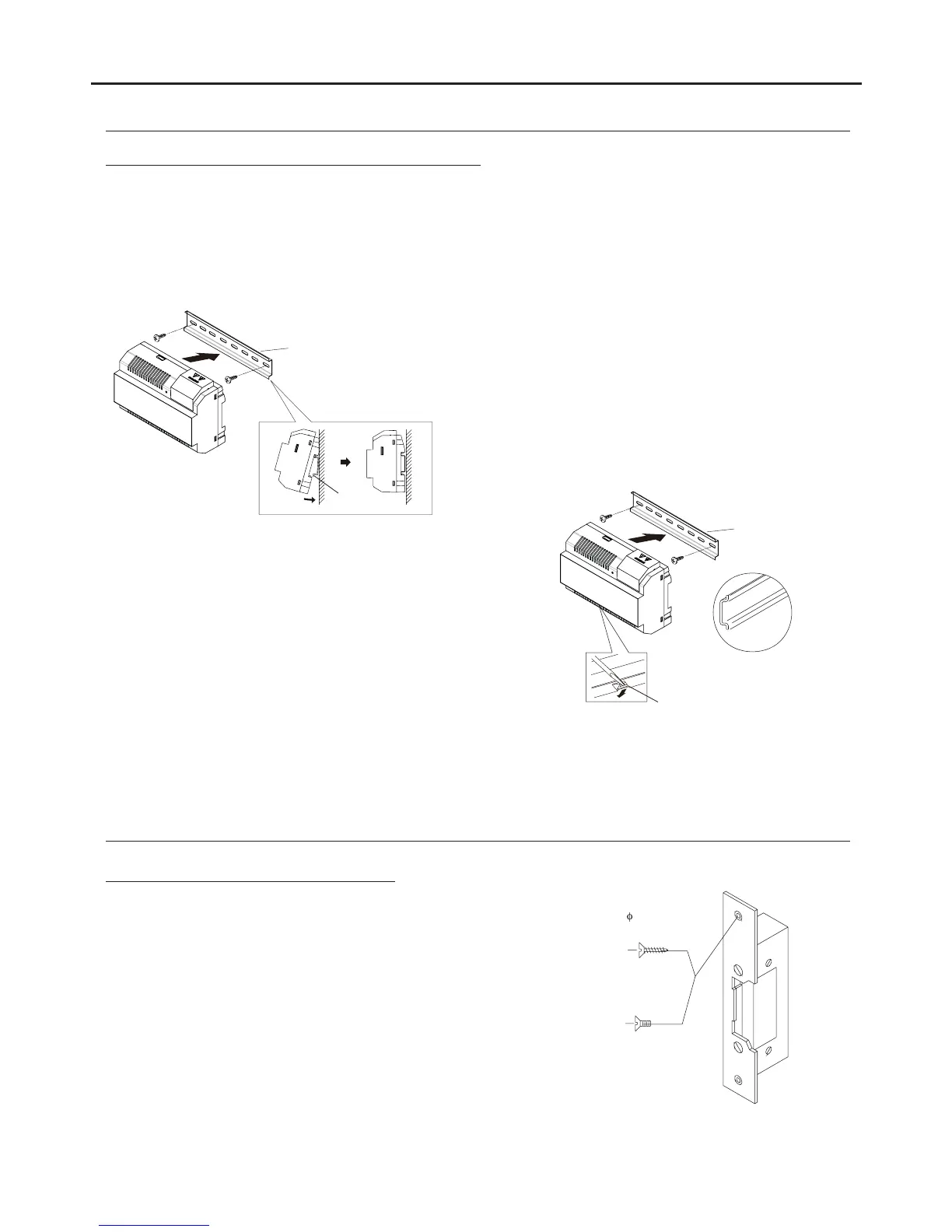

To remove the power supply from the DIN rail, use a flat
screwdriver to lever it off, as shown in the drawing.
The FA-GB2/A model requires 8 elements on the rail.
the maximum number of units that can be connected to an FA-GB2/A power supply is 23 VESTA 2IMPORTANT:
GB2 monitors.
Install the power supply in a dry and protected place free from the risk of water .drip or projections
To prevent electric shock, do not remove the protective cover of the primary or handle the wiring.
The and handling of this device must be carried out by in the absence ofinstallation authorised personnel
electrical current.
To avoid damage, the power supply .has to be firmly fixed
Lock release installation instructions:
LOCK RELEASE INSTALLATION
DIN rail.
DIN rail.
DIN rail.
DIN 46277
DIN rail latch release.
M 4 x 8
3.5 x 25
DIN-7972
DIN-963
IMPORTANT:
- The lock release must be 12V DC orAC (Golmar).
(See page 19 forAC lock releases and pages 12-19 for DC lock releases).
- .The kit is supplied with two varistors If connecting an AC lock release to one of the outputs, fit the varistor
supplied directly to the lock release terminals to ensure the device functions correctly.
If the lock release is to be fitted to a metal door, use a Ø3.5mm drill bit and
thread the hole made. For wooden doors, use a Ø3mm drill bit.
NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS
