Preparing the cable entry:
DOOR PANEL INSTALLATION INSTALLATION
Break the flange to allow entry of cables through
the bottom part of the embedding box.
Pass the cable through the hole made
in the embedding box.
Embed the box and ensure that it is level and flush.
Once embedded, remove the protective stickers
from the screw holes.
Fastening the frame to the embedding box:

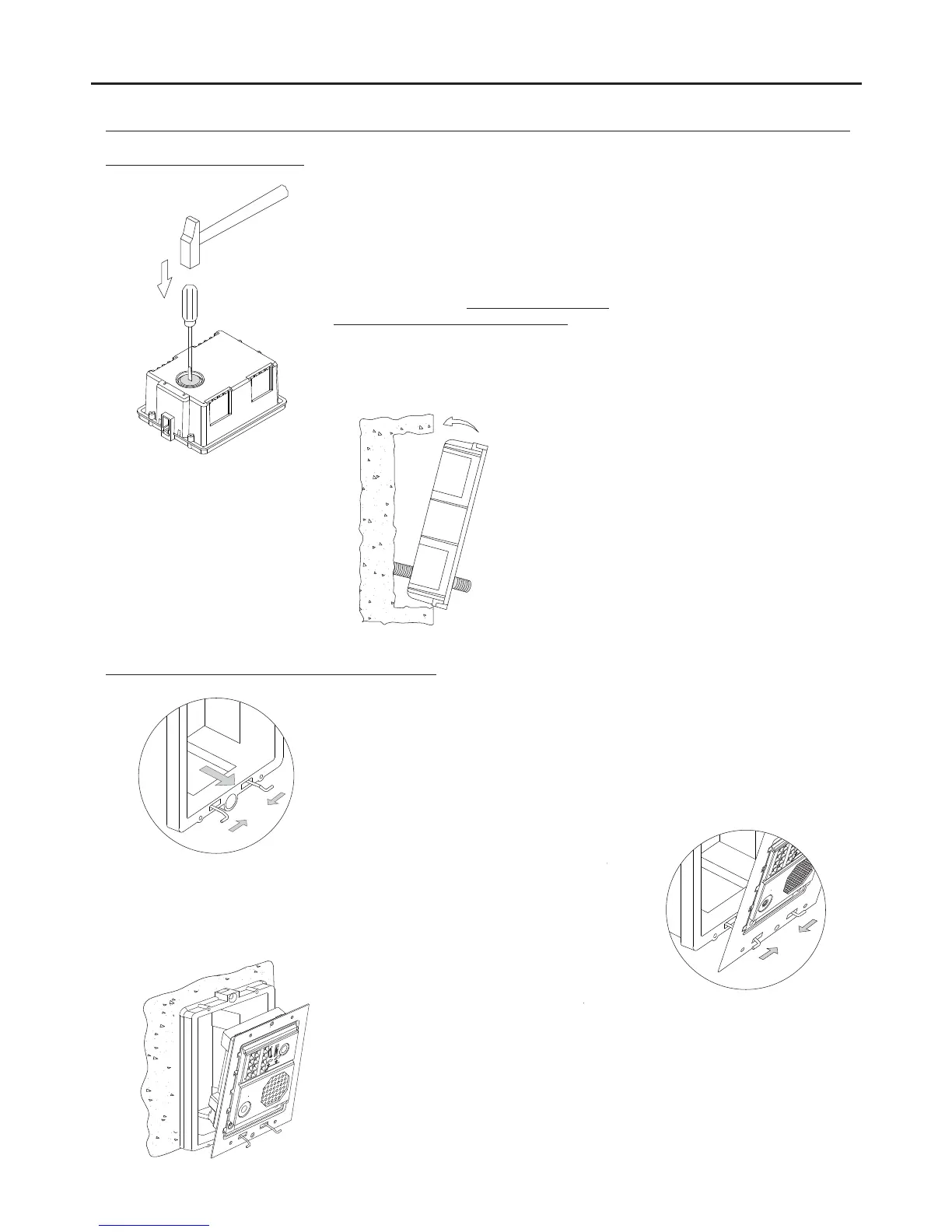

Insert the spring hinge which attaches to the product in
the embedding box, as shown in the drawing.
To fasten the frame to the embedding box, insert the spring
hinge into the housings provided for this purpose
in the frame, as shown in the drawing.
The frame can now be tilted horizontally to enable
sound module connection and setting.
NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS
