Access paneldoor
ON
1 2 3 4 5 6
SW1
NA2
+
AP-
C1
NA1
AP+
C2
AP+ AP-
P1 P2
BUSBUS
_
AP1
NA2
+
AP-
C1
NA1
AP+
C2
AP+ AP-
P1 P2
BUSBUS
Relay 2Relay 1
_
12Vdc
Connection of 2 DC lock releases without “AP”:
Important: With 2 DC lock releases, it is not possible to use the AP door opening buttons.
(1)
Mains
230Vac
SEC
~~ ~~
PRI
TF-104
Lock release
max. 12 Vac/850mA.
Connection of 1 AC lock release with “AP”:
NA2
+
AP-
C1
NA1
AP+
C2
AP+ AP-
P1 P2
BUSBUS
Relay
2Relay 1
_
12Vdc
(1)
To the FA-GB2/A
power supply
(1)
Lock release
max. 12 Vdc/270mA.
Connection of 2 AC lock release with “AP”:
SEC
PRI
TF-104
or
Access paneldoor
ON
1 2 3 4 5 6
SW1
or
Access paneldoor
ON
1 2 3 4 5 6
SW1
or

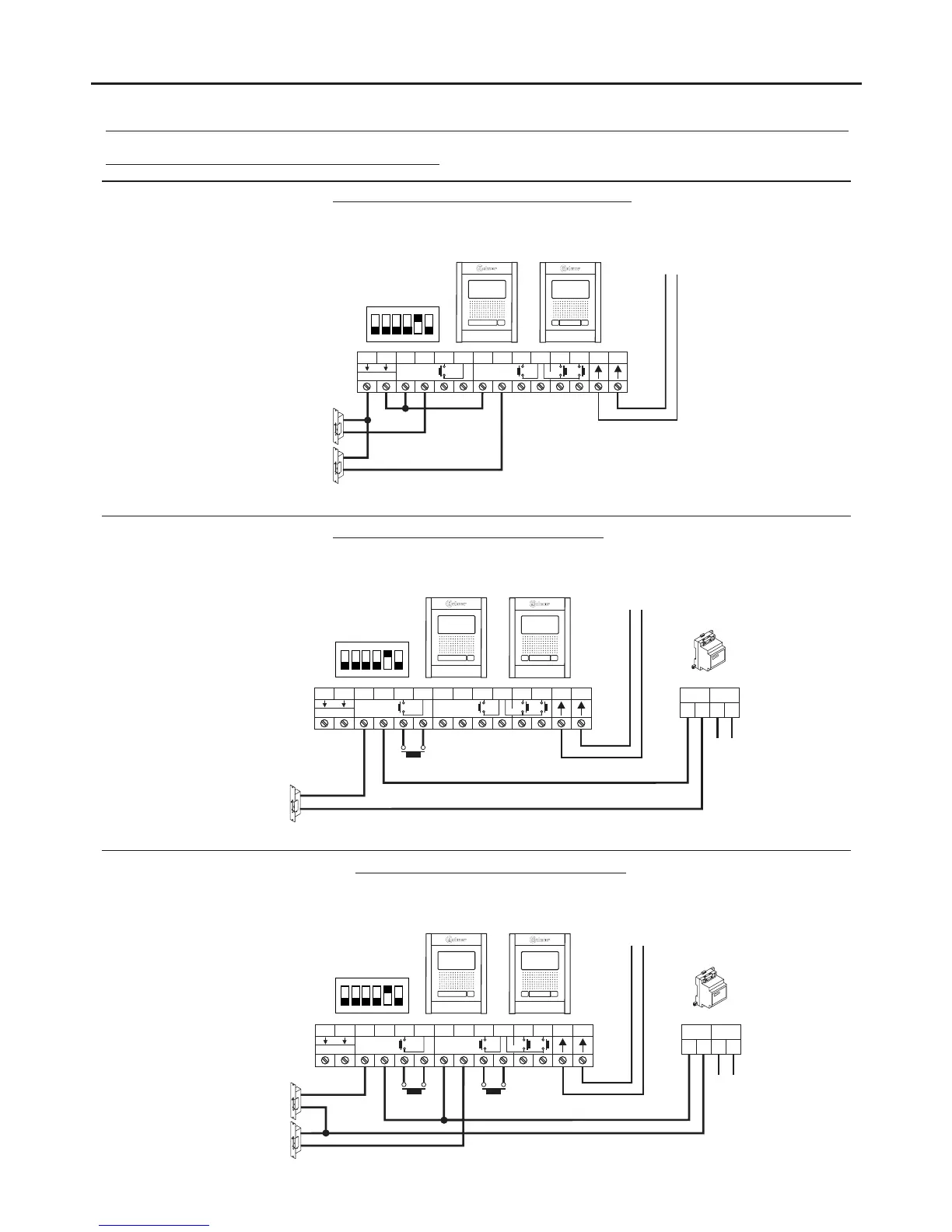

WIRING DIAGRAMS:
19
Relay 2Relay 1
12Vdc
Lock release
max. 12 Vac/850mA.
~~ ~~
AP1 AP2
Mains
230Vac
Connection of Golmar AC and DC lock releases.
Important: Fit the varistor supplied with the kit directly to the terminals of the lock release.
Important: Fit the varistors supplied with the kit directly to the terminals of each o the 2 lock releases.f
*
*
*
*
*
To the FA-GB2/A
power supply
To the FA-GB2/A
power supply
