golmar MEL4503/NFC User Manual

11
: 'C' contact for electric lock. Relay 3.
: 'NO' contact for electric lock. Relay 3.
: Positive, negative.
: Digital communication.
: Audio output communication.
: Audio input communication.
: Balanced video signal input (through twisted pair).
: Balanced video signal output (though twisted pair).
: Coaxial cable mesh.
: Video signal input through coaxial cable.
: Video signal output through coaxial cable.
CV1
CV2
+,
D
Aout
Ain
Vi+,Vi-
Vo+,Vo-
Mesh
Vi+
Vo+
_
CN8 NEXA Bus connector. (Not used in this mode).

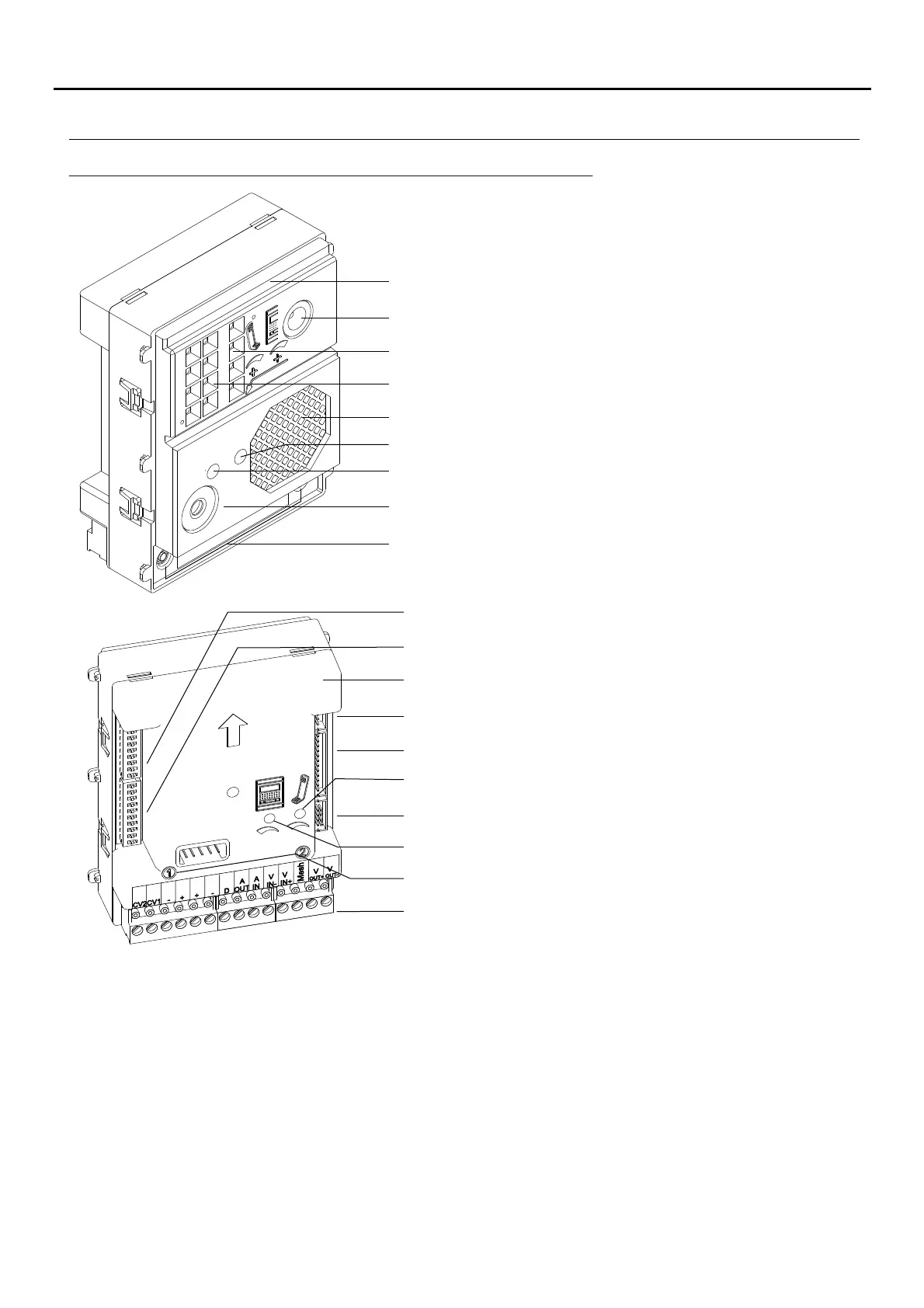

Description of the EL632 PLUS P/T / EL642/PLUS sound module:
DESCRIPTION OF THE SOUND MODULES
AUDIO AND VIDEO DOOR ENTRY SYSTEM - NFC ACCESS CONTROL
Microphone.
Speaker.
Front.
Sound module buttons (x2).
Monitor connector.
CN6 button connector.
Back.
Television camera. (Only the EL632 PLUS P/T module).
Telephone speaker volume control potentiometer.
LEDs (visual signals for people with impaired hearing).
LEDs (Only functions with the EL632 Plus P/T
.sound module)
S configuration DIP switch.W2
Door panel speaker volume control potentiometer.
CN3 function connector.
SW configuration DIP switch.1
Button number.
Telephone speaker volume control potentiometer.
Door panel speaker volume control potentiometer.
