DESCRIPTION OF THE DOOR PANEL
5
Sound modules
EL632/PLUS P/T video door entry system with colour television camera, 3 wires + COAX.
EL642/PLUS audio door entry system, 4 common wires.
EL632/R5 P/T video door entry system with colour television camera, 5 common wires.
EL642/R5 audio door entry system, 5 common wires.
EL655 audio door entry system, 4+n.
EL651 audio door entry system, several access doors, 4+n+CO.
EL620/2PLUS audio door entry system, 2 wires.
Access control module
EL4503/NFC access control module.

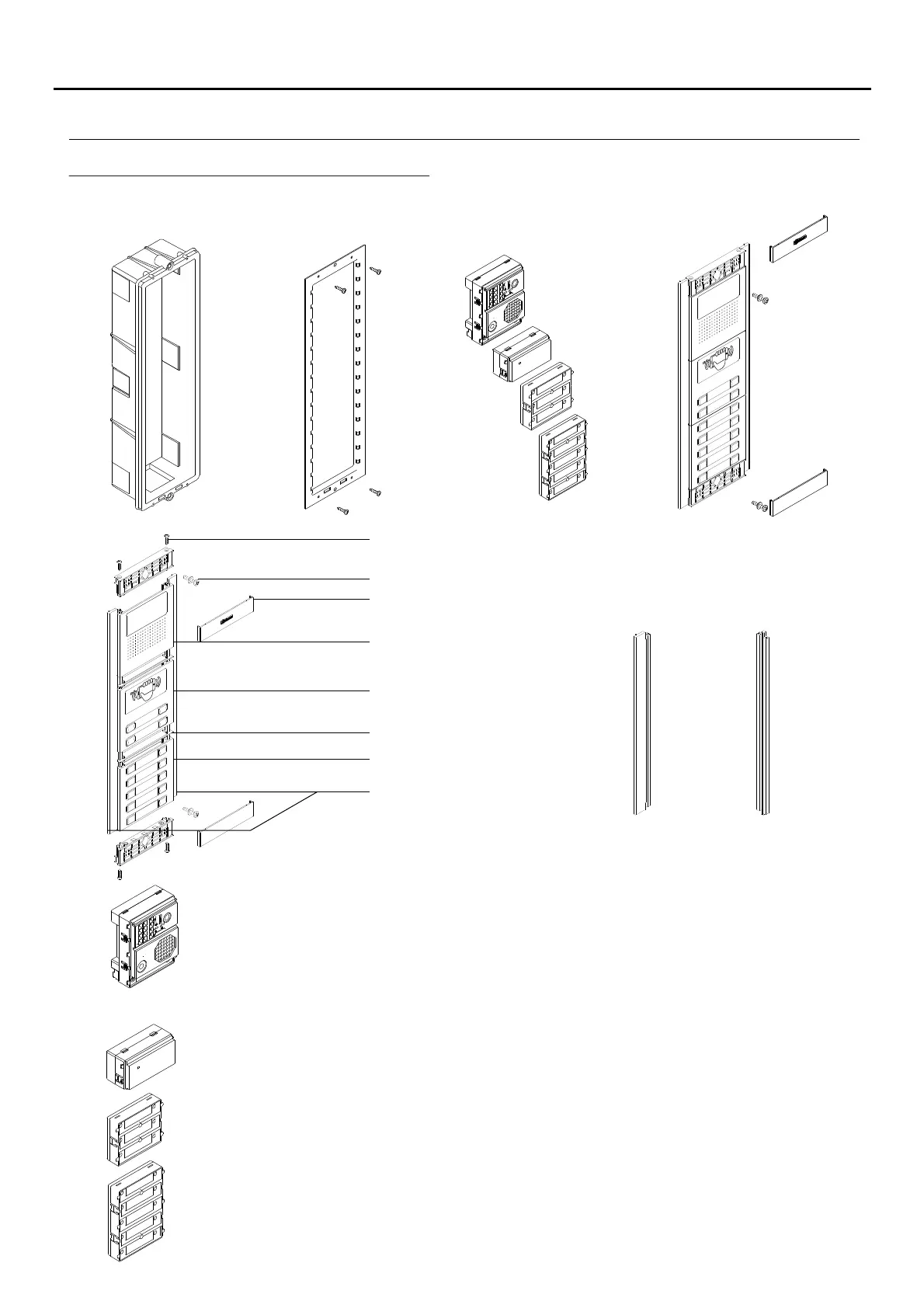

Exploded view of the parts of the panel.
Aluminium panel
Electronic
modules
Frame modulesEmbedding boxes
Description of the door panel.
Description of the Nexa modular door panel:
Grille modules:
N1000/AL
N1110/AL 1P.
N2220/AL 2P.
Clip-on covers: 60xx
N3001/AL blind viewer module
Nexa module separator (x2)
Fixing screws for clip-on covers (x4)
Side profile (x2)
Side profile Door panel UNE rod
*
Fixing screws for embedding box (x2)
Door panel UNE rod: Enables 2 door panels to be joined.
Button module
EL610A for 5 individual or 10 double buttons (4+n devices).
EL610D for 5 individual or 10 double buttons.
*
N3XXX button modules
N3XXX
AUDIO AND VIDEO DOOR ENTRY SYSTEM - NFC ACCESS CONTROL
Button modules
EL606D for 3 individual or 6 double buttons.
Call viewer module:
N31X1/AL and N32X1/AL.
