TS200 / TS250
Translation of the original operating instruction and spare parts list
- 19-
5007090-00
BA-E
®

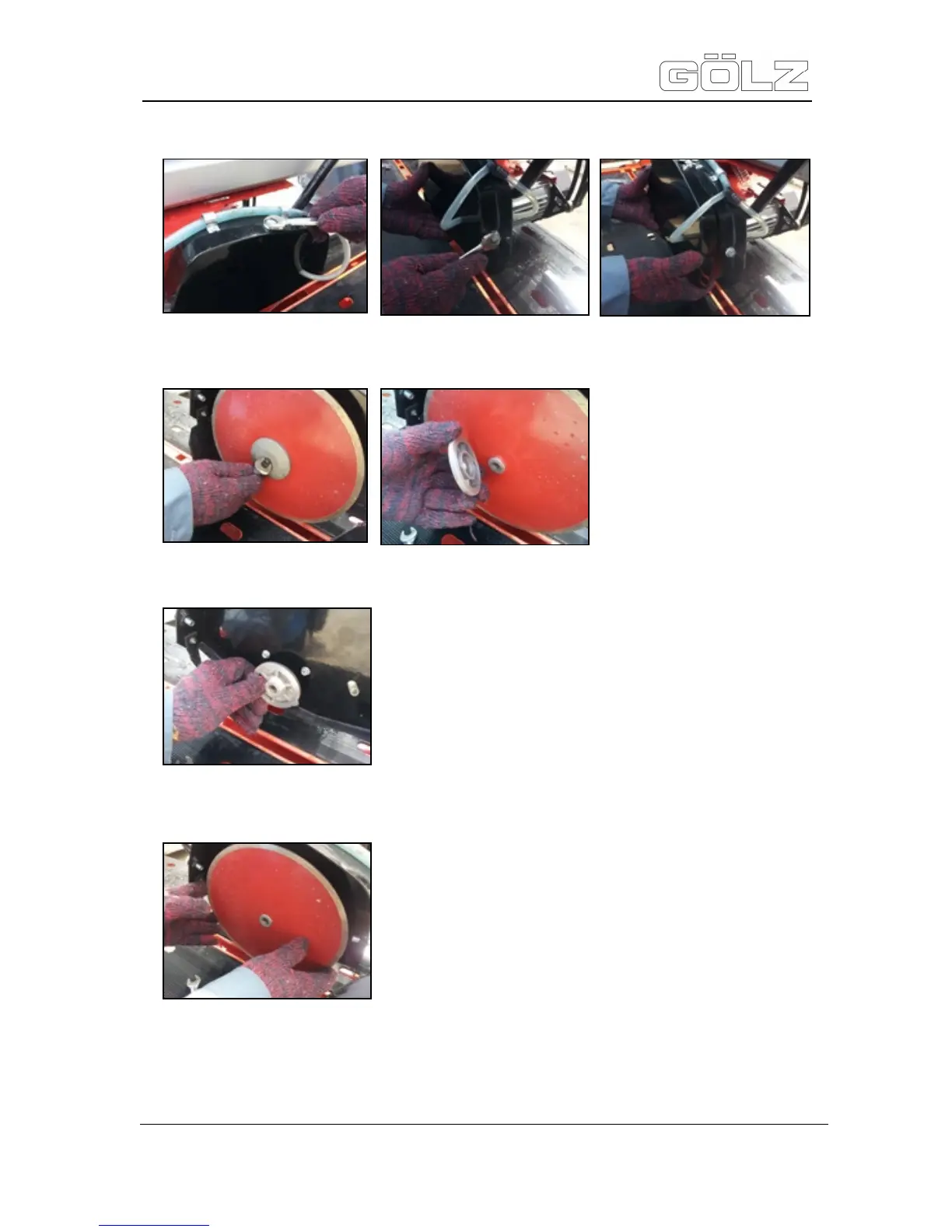

Loose the 3 screws (front-up-back) of the blade guard. Then remove the mobile part of the
blade guard.
Loose the left threaded hexagonal nut on the motor shaft and remove the outer flange and the
tool.
Clean the tool shaft and flanges and inspect for wear
.
Mount the new blade. Make sure the tool rotation is correct and the bore corresponds to the
shaft diameter.
