3.2.3 WAP-30
3.2.3.1 WAP-30 Wireless Conference AP Installation
Wireless transmission is at all directions and can not be affected by visible rays. So this wireless AP could be used
outdoors. Because of the all-direction transmission, that wireless AP could be installed in the control room directly
and make the deployment easier. The longest connection distance between the wireless access point and the
server can reach 40m. Theoretically speaking, wireless AP could be installed in any place of the control room. The
best way is to wall hung 2m above ground.
Notice: It should not have any metal within one meter of the installation site, otherwise, the signal transmission
would weaken to some extent
15
3.2.3.2 WAP-30 Wireless Conference AP Installation
3.3 Functions and Indicators of Charging Case
The charging case can charge 16 batteries at the same time. It is powered by the universal power supply and
automatically matched by the voltage of the city power. Each charging grid has a charging indicator light. The
charging circuit can automatically detect the battery and control the charging process.
Notice: CHG-16 charging case can charge the DSC-3021 conference terminal. Don’t use it to charge other types of
conference terminals.
Product model: CHG-16
3.3.1 Basic Functions
1. Smart management of batteries: ensure security and reliability of charging process, manage battery capacity
and charging current, extend service life
2. Red/green LED indicator to indicate charging different states
3. Charging is implemented by an independent module with battery capacity detection function. When no battery is
inserted, the charging module does not work.
4. Up to 16 batteries can be charged at the same time; charging duration: 5h

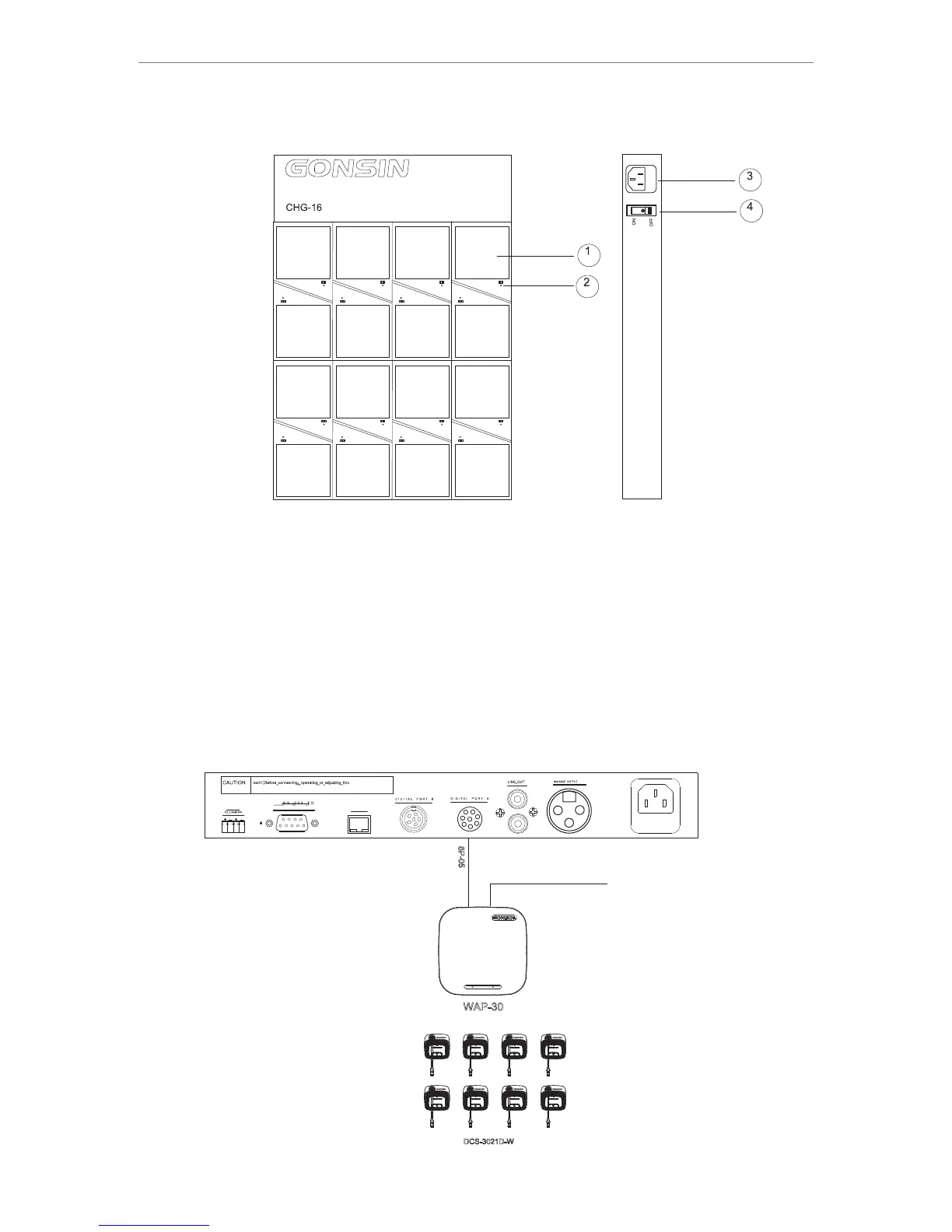

1、Battery grid
2、LED indicator (red indicates "being charging"; green indicates "charging completed")
3、Power interface(AC 110-220v 50Hz)
4、 Power switch(power)
3.4 Connection of Congress Terminal
To connect the congress server with wireless terminals, use an 8PS-03/05/10/20/40 extension cable to connect the
8P interface (female connector) of the server to a WAP-30 AP, with one male connector of the cable connected to the
congress server and the other female connector connects the male connector of 8P2-01 male-male connector cable, the
other male connector of 8P2-01 connects to the female connector of WAP-30 AP. Theoretically, the maximum distance
between the AP and a congress terminal is 30m.
Refer to the following figure:
3.3.2 Indicators
16
DCS-3021 Congress System
( rack mounting ) (ceiling mounted or wall-mounted)
Connect the next ap
