This document is applicable to the following product models:
Congress server
GONSIN30000
Wireless AP
WAP-30
Pluggable Gooseneck Microphone Stem
MIC-310*￠14. 5-Y 310mm Pluggable Microphone Stem (Black)
MIC-410*￠14. 5-Y 410mm Pluggable Microphone Stem (Black)
MIC-510*￠14. 5-Y 510mm Pluggable Microphone Stem (Black)
MIC-310*￠14. 5-Y 310mm Pluggable Microphone Stem (Silver)
MIC-410*￠14. 5-Y 4 10mm Pluggable Microphone Stem (Silver)
MIC-510*￠14. 5-Y 510mm Pluggable Microphone Stem (Silver)
Headphone
TC-D3 Stereo Headphone
Chapter 1 Introduction
GONSIN DCS congress system boasts superior performance, and it is applicable to conferences of different
sizes. The congress terminal is easy to operate: press the speaking key to speak and rotate the volume knob in two
directions (“+” and “-”) to adjust the volume of the built-in loudspeaker; system maintenance does not need much
skill as well: technicians can operate the terminal after a short period of training.
System composition:
The DCS congress system is composed of the congress server, wireless congress terminals (for the chairman and
delegates), wireless AP WAP-30, HUB-D45, PC (optional), conference management software (optional), high-
speed dome cameras (optional), and audio devices and display devices.

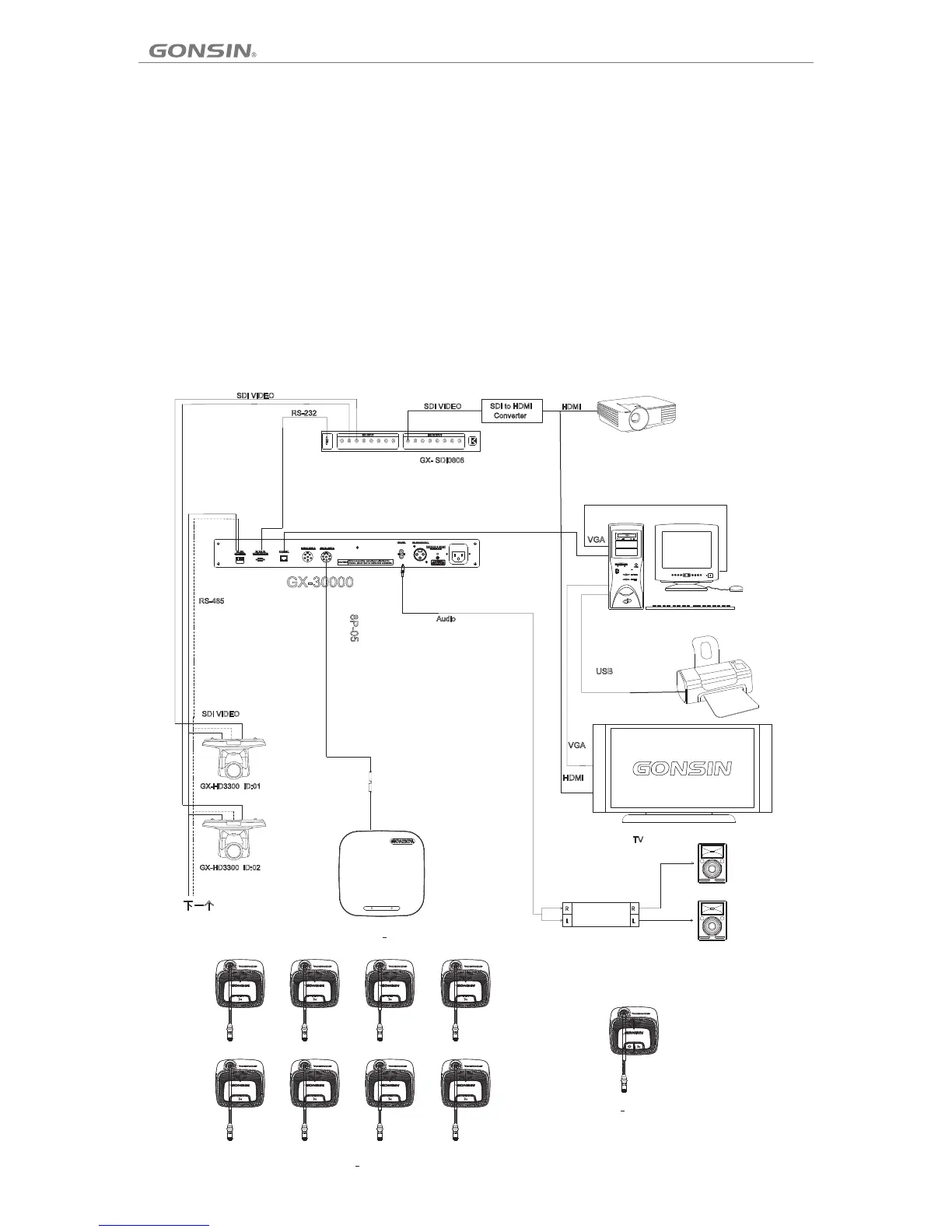

The following figure shows the system wiring diagram:
05
DCS-3021 Congress System
-
+
-
+
WAP-30
Power
Amplifier
Projector
DCS-3021DW
DCS-3021CW
8P2-01
To Next Page
