ACCESSORIES

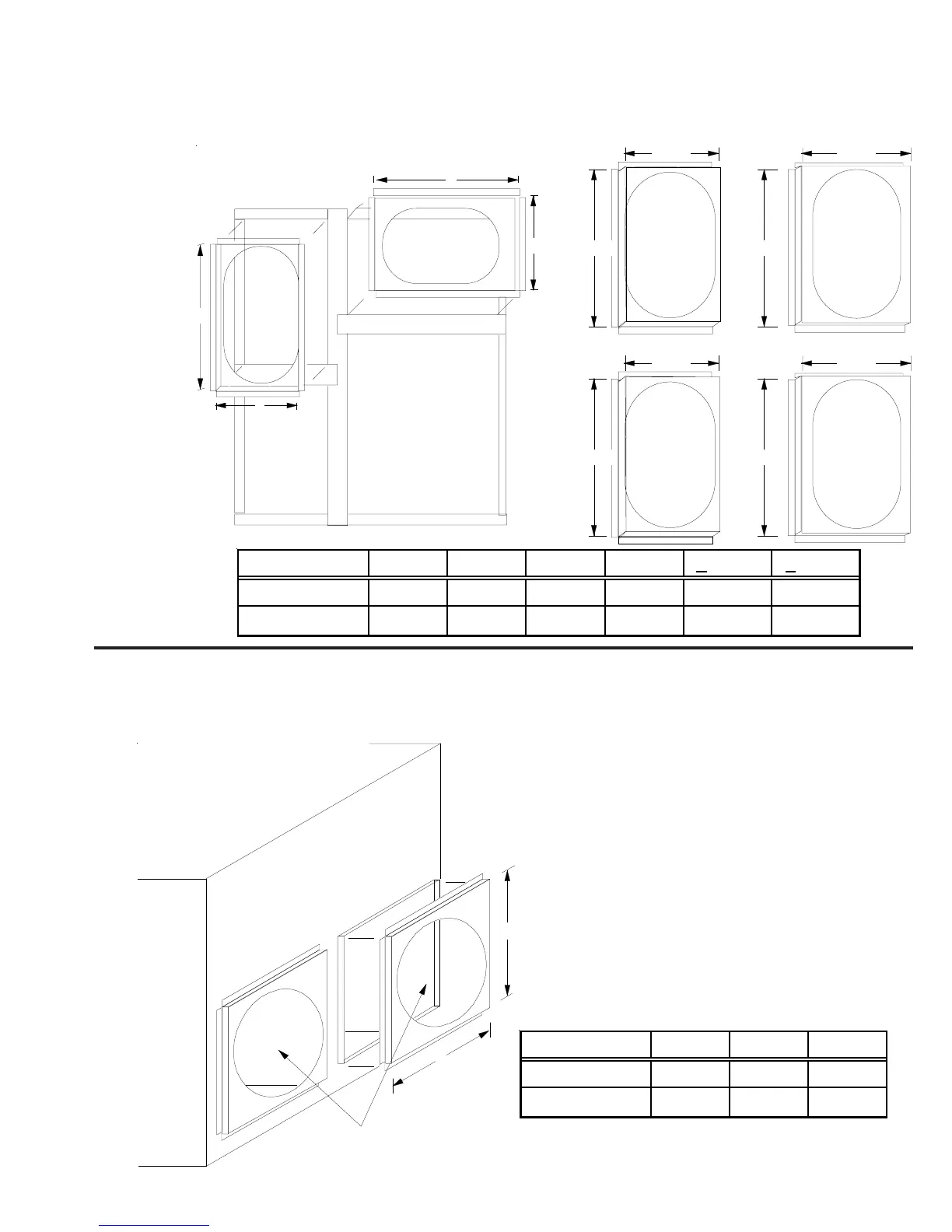

SQUARE TO ROUND CONVERTER
(DOWNFLOW APPLICATIONS)
A
B
R
S
C
D
16 ø 16 ø
18 ø 18 ø
22 3/4 22 1/4
12 1/4 14 3/4
12 1/4 14 3/4
22 3/4 22 1/4
MODEL A B C D RETURN SUPPLY
SQRPG101/102 22 3/4 12 1/4 22 1/4 14 3/4 16 16
SQRPG103 22 3/4 12 1/4 22 1/4 14 3/4 18 18
A
C
B
SQUARE TO ROUND CONVERTER
(HORIZONTAL APPLICATIONS)
MODEL A B C
SQRPG101/102 16 16 1/2 16 1/2
SQRPG103 18 18 1/2 18 1/2
Measurements are in inches.
