Goodman MBE2000 - Wiring Diagrams: Low Voltage Connections; Cooling Unit Wiring with Heat Kit

WIRING DIAGRAMS
9
HIGH VOLTAGE!
DISCONNECT ALL POWER BEFORE SERVICING OR INSTALLING THIS
UNIT. MULTIPLE POWER SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
Wiring is subject to change. Always refer to the wiring diagram on the unit for the most up-to-date wiring.

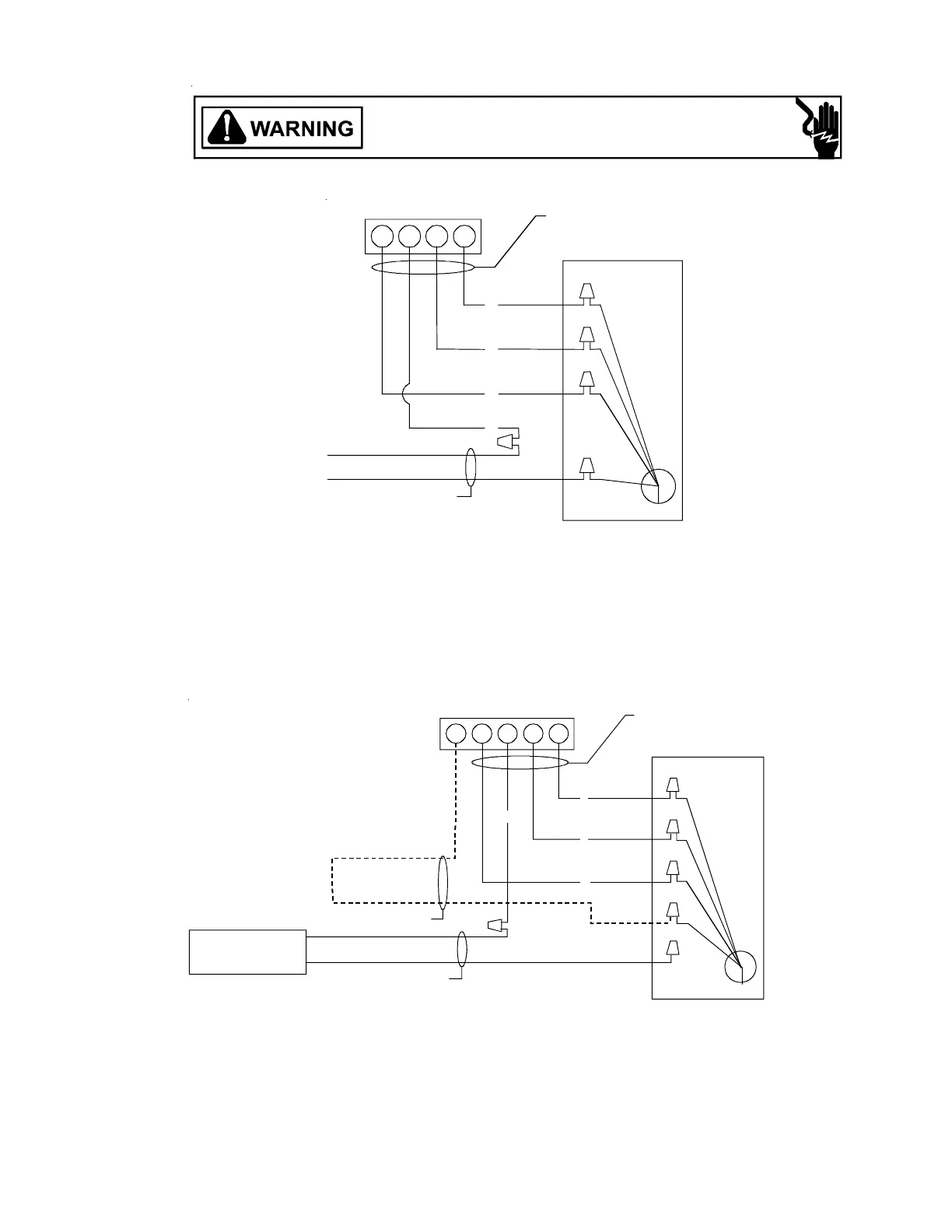

Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 10KW and below
Low Voltage Wiring Diagram for Cooling Unit with optional heat kit 15KW and above
RED
GREEN
WHITE
BLUE
TO CONDENSING
UNIT 24V. CONNECTIONS
#18 GA. 2 WIRES
ROOM THERMOSTAT
W
Y G R
R
G
W
Y
#18 GA. 4 WIRES WITH
COOLING 3 WIRES WITHOUT
MBR UNIT
ROOM THERMOSTAT
W2 W Y G R
TO CONDENSING
UNIT 24V. CONNECTIONS
#18 GA. 2 WIRES
CONTACTOR
COIL
#18 GA. 2 WIRES
OUTDOOR
THERMOSTAT
(OPTIONAL)
R
G
W
Y
#18 GA. 4 WIRE WITH
COOLING 3 WIRE WITHOUT
GREEN
RED
WHITE
BROWN
BLUE
MBR UNIT
