MBVC BLOWER SPECIFICATIONS
5

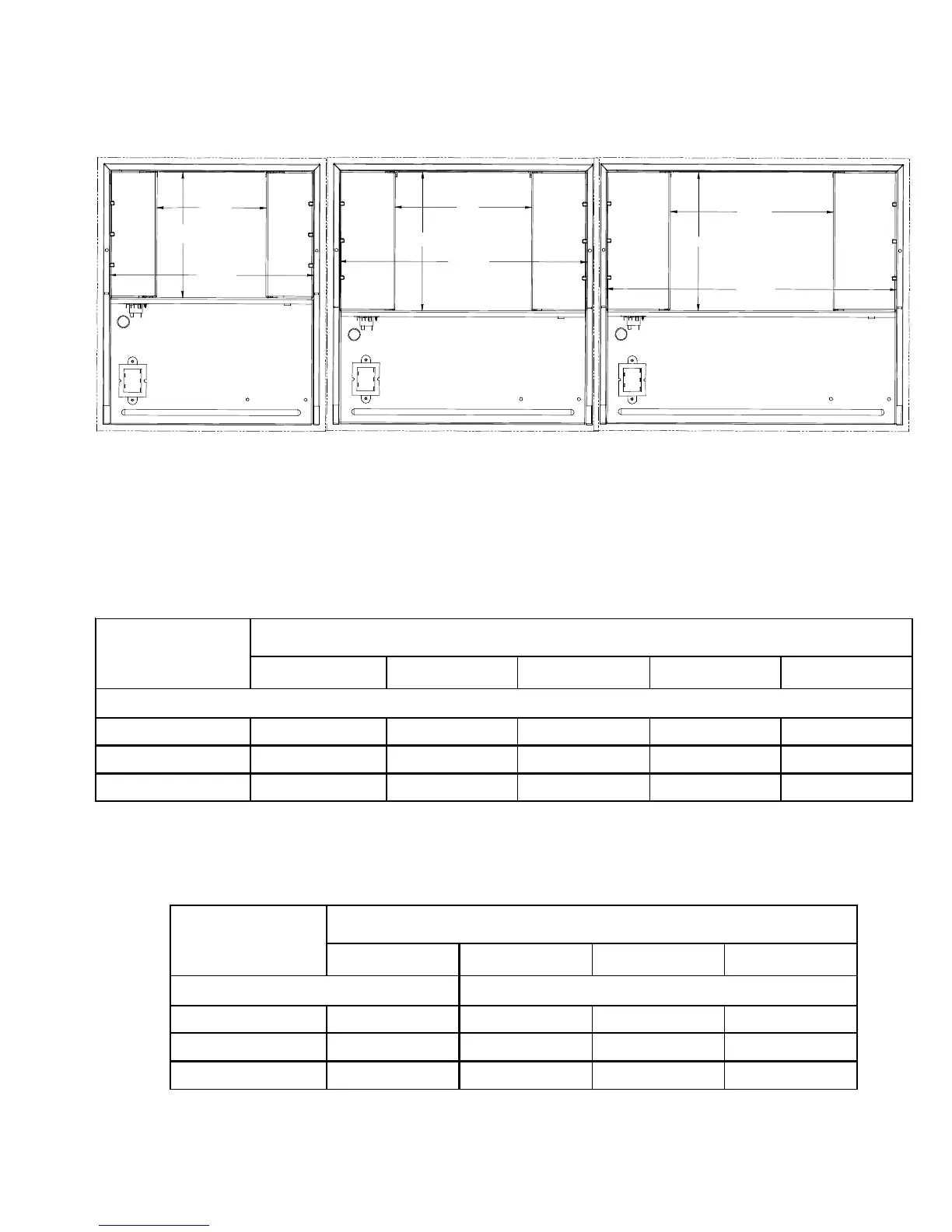

BLOWER OPENING DIMENSIONS
(TOP VIEW)
MBVC1200/1600/2000
HKR HEATER DATA
NO HEAT KIT HKR-03* HKR05-(C)* HKR-06* HKR-08(C)*
MBVC
1200AA-1AA X X X X X
1600AA-1AA X X X X X
2000AA-1AA X X X X X
^ = Circuit 1: Single Phase for Air Handler Motor * = Revision level that my or may not be designated
Circuit 2: 3-Phase for HKR3 Heater Kits C = Circuit Breaker option
X = Allowable combinations
~ = Restricted combinations
BLOWER
HEATER KIT
HKR-10(C)* HKR-15C* HKR-20C* HKR-21C*
MBVC
1200AA-1AA X X ~ ~
1600AA-1AA X X ~ ~
2000AA-1AA X X X ~
^ = Circuit 1: Single Phase for Air Handler Motor * = Revision level that my or may not be desi
g
Circuit 2: 3-Phase for HKR3 Heater Kits C = Circuit Breaker option
X = Allowable combinations
~ = Restricted combinations
BLOWER
HEATER KIT
S
M
A
L
L
M
E
D
I
U
M
L
A
R
G
E
13-1/4”
23-1/2”
11-5/16”
11”
20-1/16”
11-5/16”
10-7/8”
16-1/2”
10-1/4”
