Goodwe DS SERIES User Manual

- 9 -

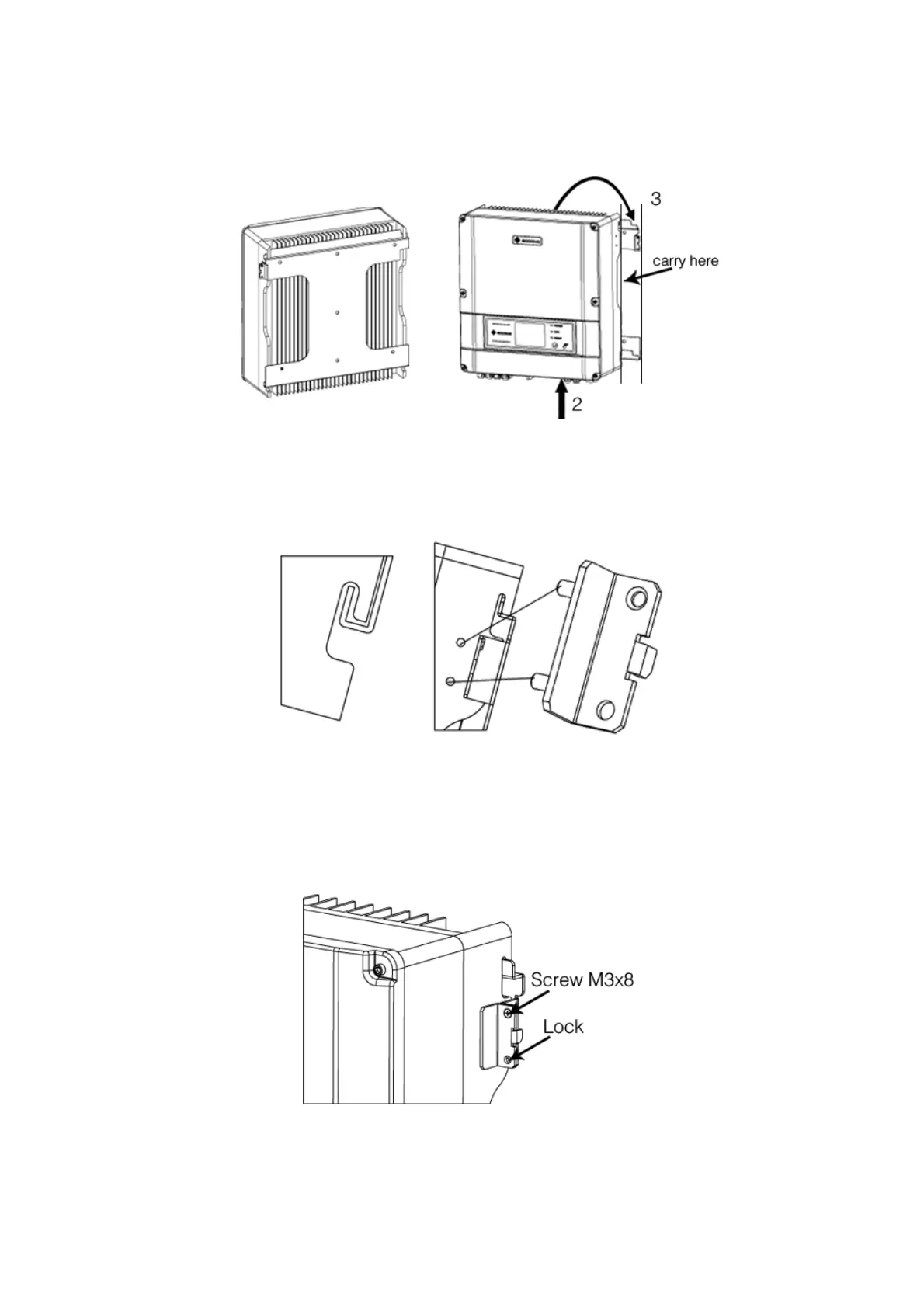

Figure 3.3.2-3 Figure 3.3.2-4
Figure 3.3.2-5
E Insert lock plate into two holes in the heat-sink, then fix the
inverter with a padlock and screw M3x8
Figure 3.3.2-6

Goodwe DS SERIES Specifications

General

Number of MPP Trackers	2
DC Connection Type	MC4
Protection Degree	IP65
Max. Input Current	12.5A
Nominal AC Output Power	Varies by model
Frequency	50Hz/60Hz
AC Connection Type	Plug
Cooling Method	Natural Cooling
Operating Temperature Range	-25°C to 60°C
Dimensions	Varies by model
Weight	Varies by model
Maximum AC Output Power	Varies by model
AC Output Voltage	230V
