Goodwe DS SERIES User Manual

- 10 -
3.4 Electrical Connection
You must comply with the connection requirement of local
regulations.
The inverter is integrate with an RCMU according to VDE0126-
1-1/A1. It monitors residual current from the solar module to grid
side of inverter. The inverter can automatically differentiate
between fault current and normal capacitive leakage currents.
3.4.1 Connection to grid (AC side Connection)
A Check the grid (utility) voltage and frequency at the
connection point of the inverter. It should be 230VAC (or
220VAC), 50/60Hz, and single phase.
B Disconnect the breaker or fuse between PV-Inverter and utility.
C Connect the inverter to the grid as follows:
` Switch off the AC Breaker.
` Disassemble female connector of the AC wire connector
and connect AC wires to connection socket as indicated.

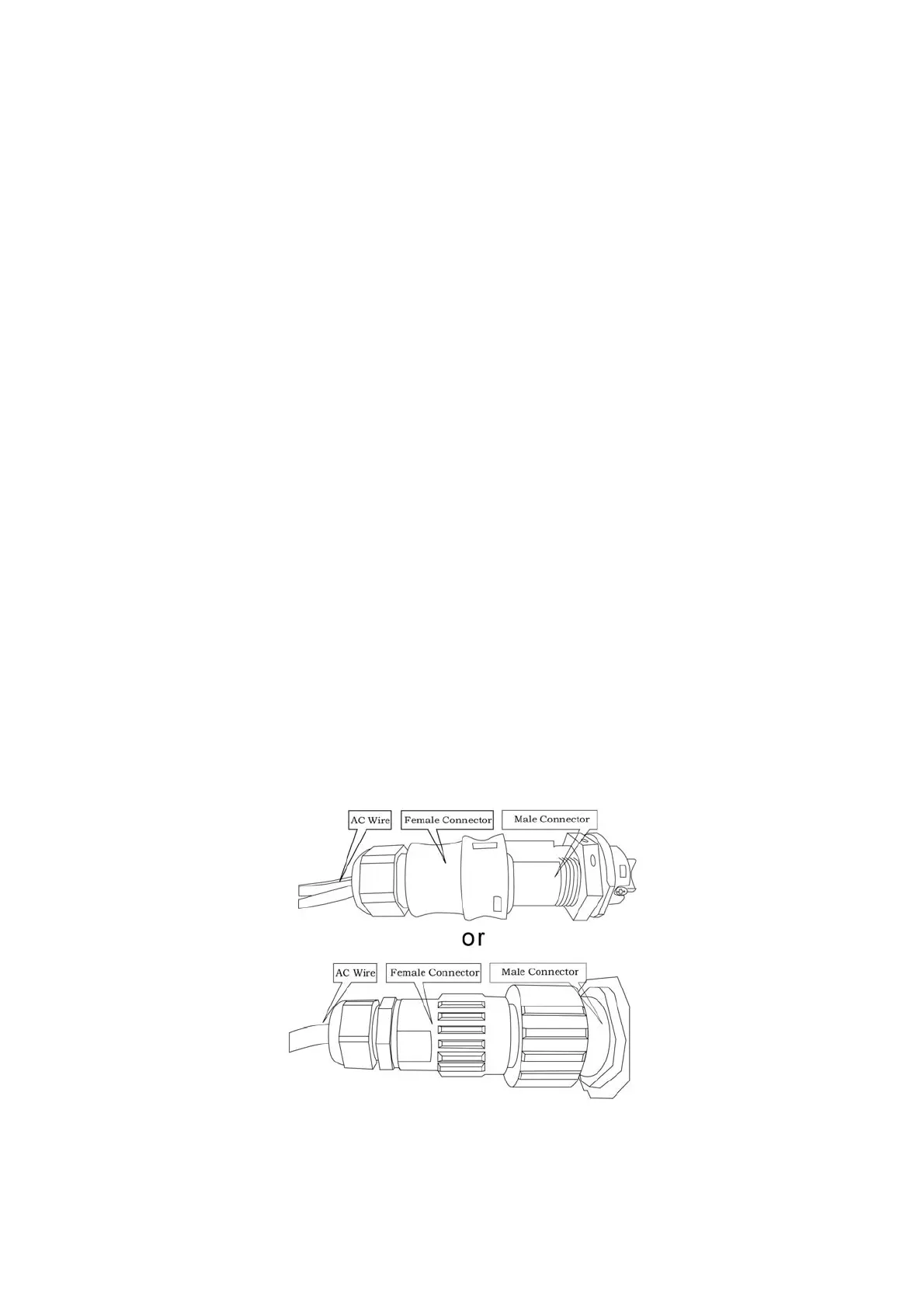

Figure 3.4.1-1

Goodwe DS SERIES Specifications

General

Number of MPP Trackers	2
DC Connection Type	MC4
Protection Degree	IP65
Max. Input Current	12.5A
Nominal AC Output Power	Varies by model
Frequency	50Hz/60Hz
AC Connection Type	Plug
Cooling Method	Natural Cooling
Operating Temperature Range	-25°C to 60°C
Dimensions	Varies by model
Weight	Varies by model
Maximum AC Output Power	Varies by model
AC Output Voltage	230V
