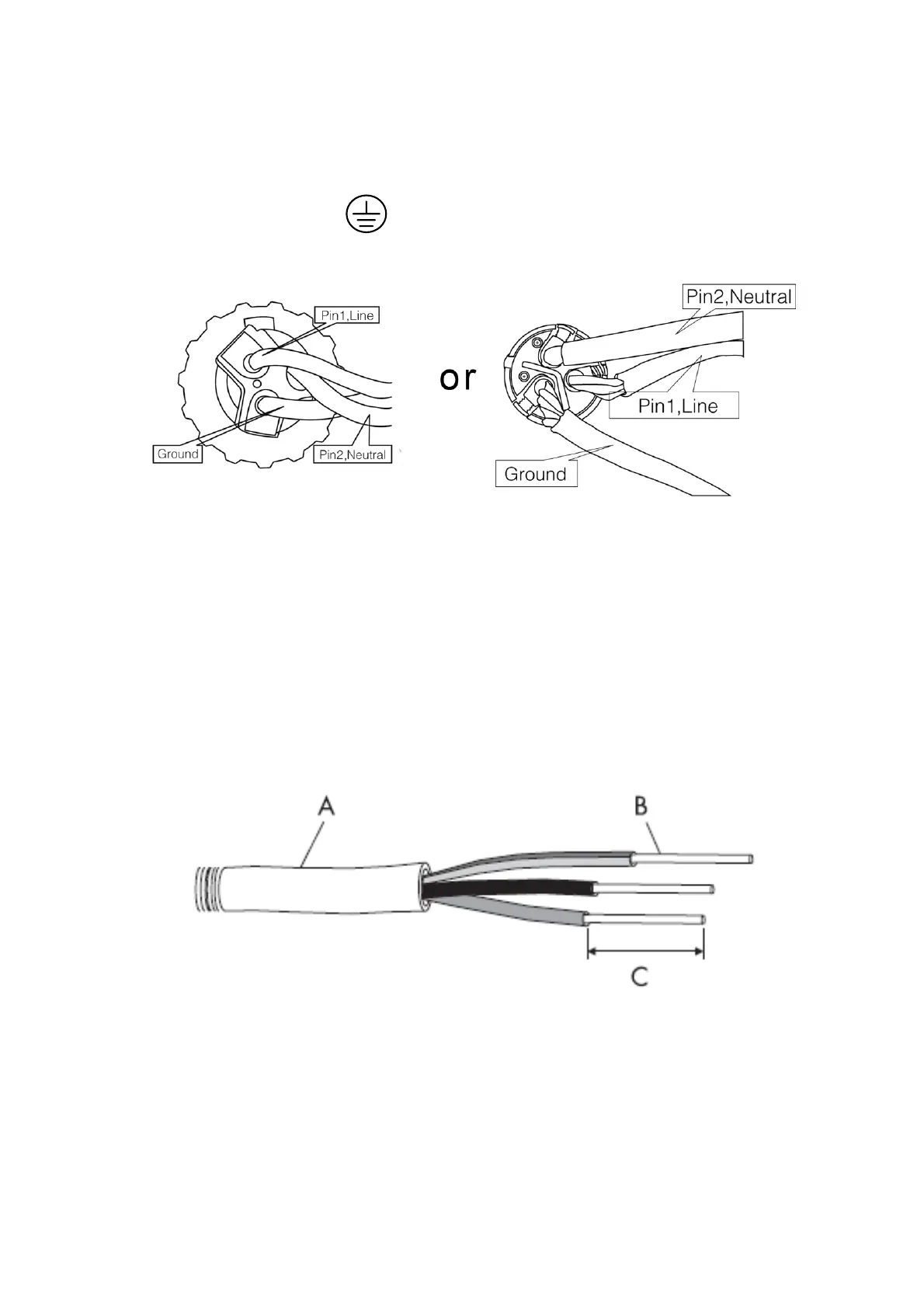

` Insert Line wire to Pin 1, Neutral wire to Pin 2 and Ground
wire to Pin
Figure 3.4.1-2
` After fastening all screws, reassemble the female
connector of the AC wire connector.
` Connect the female connector of the AC wire connector to
the Male connector on the inverter.
D Specifications of the AC wires:
Figure 3.4.1-3
