Goodwe DS SERIES User Manual

- 12 -
Depiction Size
A External diameter of the wire 12mm-25mm
B Sectional area of conducting materials Max.6mm
2
C Length of bare wire Approx.10mm
E AC output connection diagram

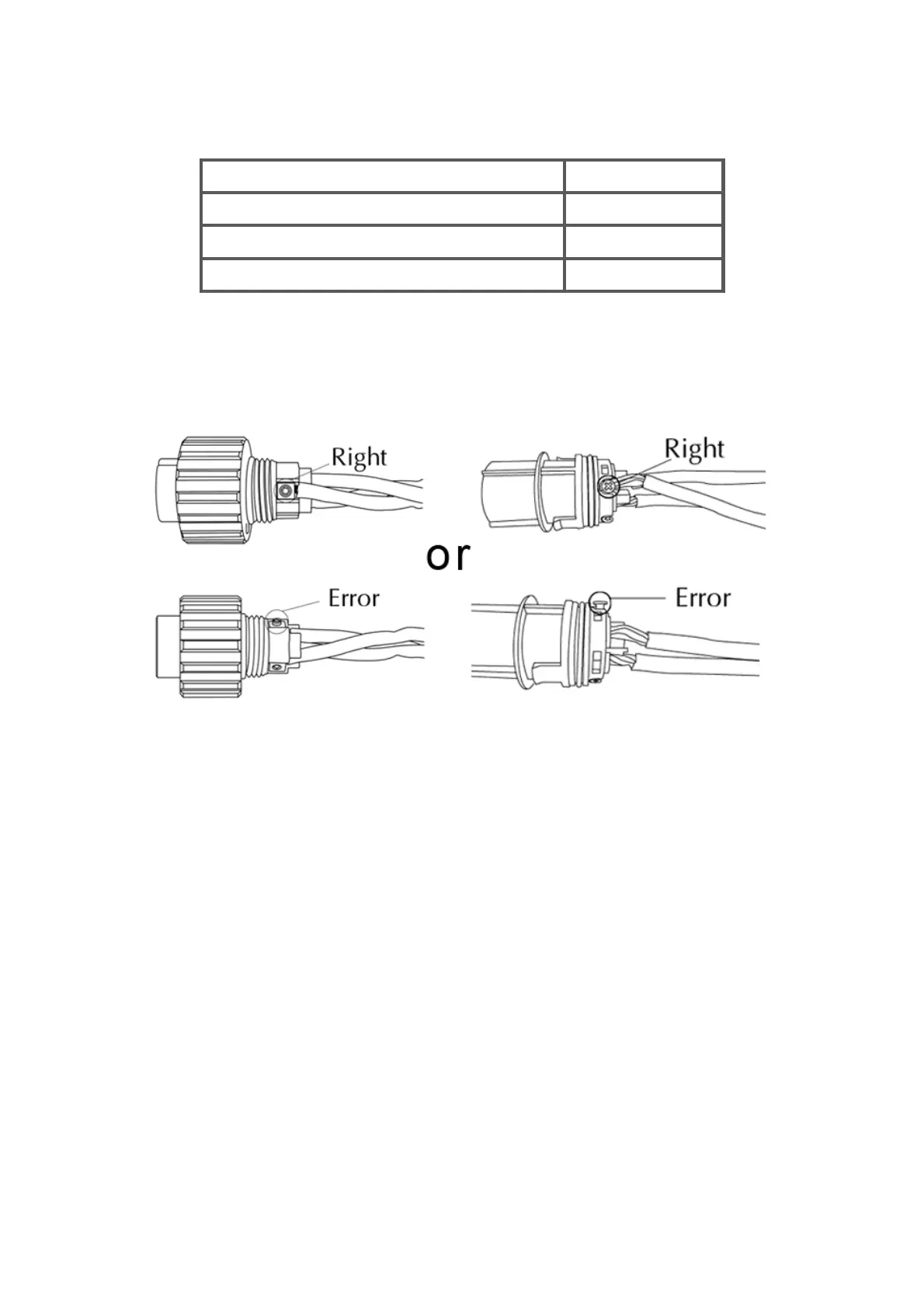

Please tighten the screw with a screw driver until the head of the
screw is inside the connector. Otherwise the wire could be loose.
Figure 3.4.1-4
3.4.2 DC side connection
A Make sure the maximum open circuit voltage (Voc) of each PV
string does not exceed the inverter input voltage Vmax under
any condition.
B Use Phoenix contact or Multi-contact connectors for PV array
terminals.
C Connect the positive and negative terminals of the PV panel to
corresponding terminals on the Inverter. The DC terminal on
each Inverter can bear 20A DC current.

Goodwe DS SERIES Specifications

General

Number of MPP Trackers	2
DC Connection Type	MC4
Protection Degree	IP65
Max. Input Current	12.5A
Nominal AC Output Power	Varies by model
Frequency	50Hz/60Hz
AC Connection Type	Plug
Cooling Method	Natural Cooling
Operating Temperature Range	-25°C to 60°C
Dimensions	Varies by model
Weight	Varies by model
Maximum AC Output Power	Varies by model
AC Output Voltage	230V
