Goodwe DS SERIES User Manual

- 13 -

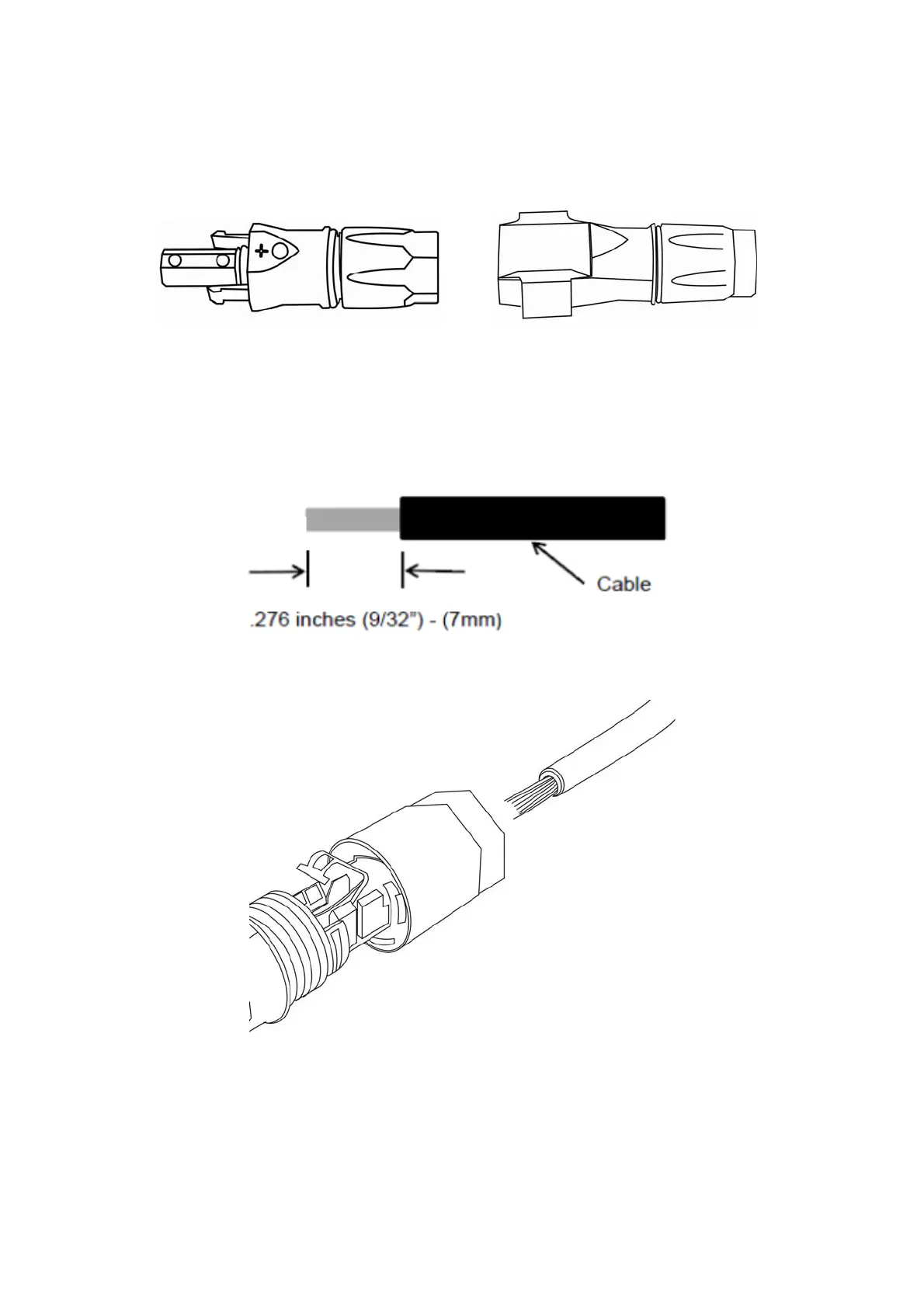

If use Phoenix contact connectors for PV array terminals,
installation as follows.
Female side connector (PV+) Male side connector (PV-)
Both types of connectors must be equipped in pair strictly
according to above graphs
Figure 3.4.2-1
Figure 3.4.2-2
1. Insert the stripped PV conductor

Goodwe DS SERIES Specifications

General

Number of MPP Trackers	2
DC Connection Type	MC4
Protection Degree	IP65
Max. Input Current	12.5A
Nominal AC Output Power	Varies by model
Frequency	50Hz/60Hz
AC Connection Type	Plug
Cooling Method	Natural Cooling
Operating Temperature Range	-25°C to 60°C
Dimensions	Varies by model
Weight	Varies by model
Maximum AC Output Power	Varies by model
AC Output Voltage	230V
