Goodwe DS SERIES User Manual

- 6 -
3.3 Equipment Installation
3.3.1 Selecting the installation position
Installation position should be selected based on the following
aspects:
` The installation method and mounting location must be suitable
for the inverter's weight and dimensions.
` Mount on a solid surface.
` Select a well ventilated place sheltered from direct sun radiation.

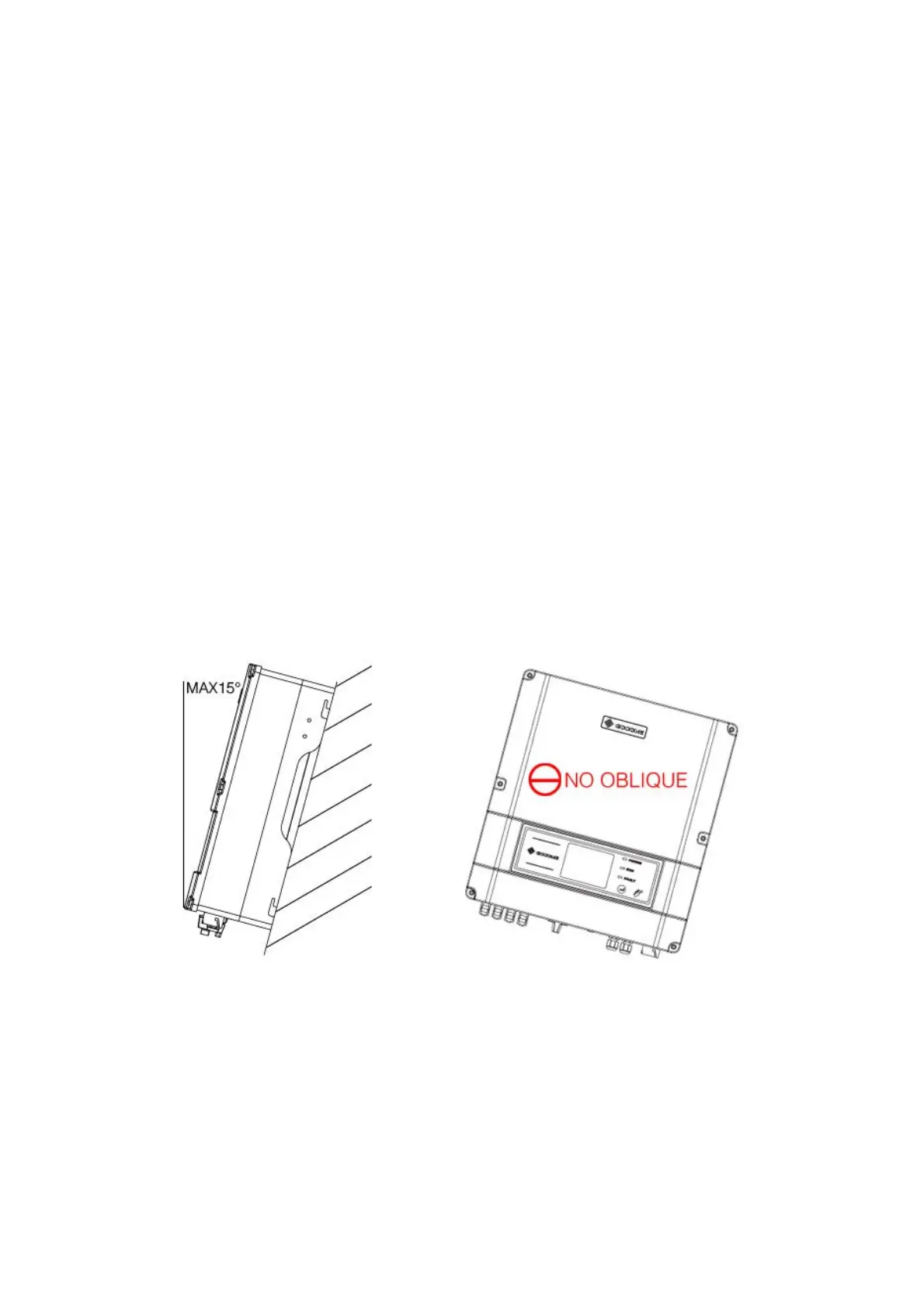

` Install vertically or tilted backward by max 15°. The device
cannot be installed with a sideways tilt. The connection area
must point downwards.
Figure 3.3.1-1

Goodwe DS SERIES Specifications

General

Number of MPP Trackers	2
DC Connection Type	MC4
Protection Degree	IP65
Max. Input Current	12.5A
Nominal AC Output Power	Varies by model
Frequency	50Hz/60Hz
AC Connection Type	Plug
Cooling Method	Natural Cooling
Operating Temperature Range	-25°C to 60°C
Dimensions	Varies by model
Weight	Varies by model
Maximum AC Output Power	Varies by model
AC Output Voltage	230V
