Goodwe GW10K-ET Quick Guide

4

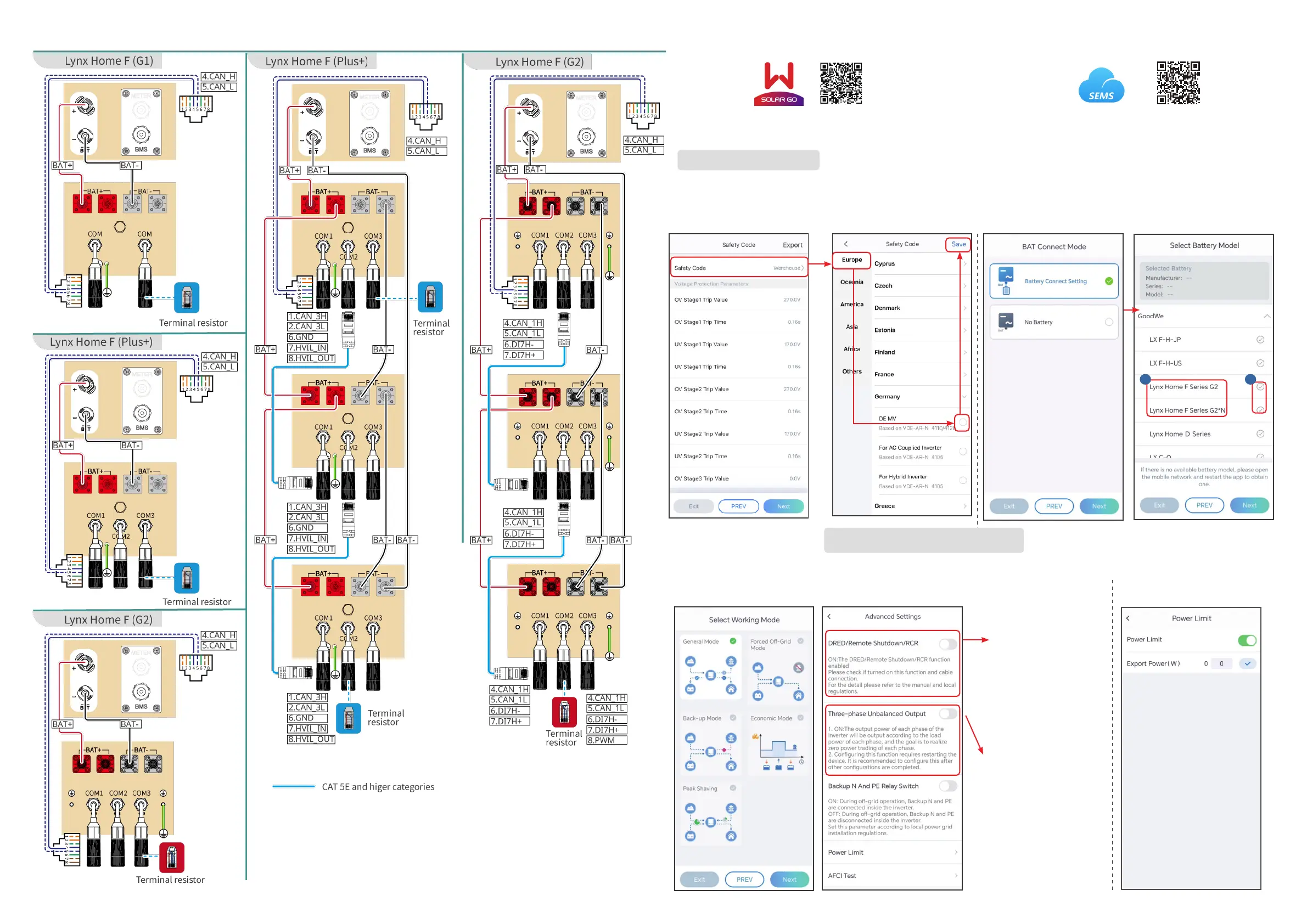

Battery System Wiring Diagram
Quick Settings
Click SolarGo APP Home>Settings>Quick Settings to complete quick settings step by step.
Installer password: goodwe2010
05 Equipment Commissioning
SolarGo APP
Download and open the APP, follow the prompts to connect the device.
Setting the BAT Connect Mode
Setting the Safety Code
1 2
Setting the Working Mode
Setting the Power Limit
Function
Setting the Advanced Parameters
The function is disabled
by default,if you
need DRED/Remote
Shutdown/RCR
function, enable it.
Enable Three-phase
Unbalanced Output
when the utility grid
company adopts phase
separate billing.
SEMS Portal app
Tap Home > Settings > Advanced Settings to set the following functions.

Goodwe GW10K-ET Specifications

General

Model	GW10K-ET
Max. DC Input Voltage	1000 V
Number of MPPTs	2
Rated AC Output Power	10000 W
Max. AC Output Power	11000 VA
Frequency	50 Hz / 60 Hz
Efficiency	98.3%
Dimensions	516 x 415 x 180 mm
Weight	25 kg
Max. DC Input Power	13000 W
Start Voltage	180 V
MPPT Voltage Range	200V - 1000V
Number of MPP Trackers	2
Max. Short Circuit Current per MPPT	15 A
Nominal AC Output Power	10000 W
Max. AC Apparent Power	11000 VA
Nominal AC Voltage	230 V / 400 V
Nominal Grid Frequency	50 Hz / 60 Hz
THDi	<3%
DC Switch	Yes
Protection Class	IP65
Operating Temperature Range	-25°C to +60°C
Cooling Method	Natural Convection
Rated Output Power	10000 W
Grid Frequency	50 Hz / 60 Hz
Max. Efficiency	98.3%
Noise Level	<30 dB
Protection Degree	IP65
Type	Three Phase
AC Voltage Range	180V - 280V
Power Factor	0.8 leading - 0.8 lagging
Rated Grid Voltage	230 V
