• Set language
Short press the button to enter the "Set Language" menu. Long press the button to enter the
second level menu. Short press the button to browse the languages available.
• Set time
From the first level "Set Language" menu, short press the button to enter the "Set Time" menu.
Long press the button to enter the second level menu. The initial display is "2000-00-00 00:00", in
which the first four numbers represent the year (e.g. 2000~2099); the fifth and sixth numbers
represent the month (e.g. 01~12); the seventh and the eighth numbers represent the date (e.g.
01~31). The remaining numbers represent the time.
Short press the button to increase the number in current location, and press to move the cursor
to next position.
• Set protocol:
The function is only used for service personnel, setting a wrong protocol could lead to
communication failure. From the first level "Set Time" menu, short press the button to enter
"Set Protocol Display" menu. Long press the button to enter sub menu. The circulatory sub
menu including two protocols can be found. The protocol can be chosen by short pressing the
button.
• MPPT function for shadow:
The default setting for shadow optimizer is disabled.
Please enable shadow optimizer when there is shadow on PV panel. The function could help the
system generate more power under shadow condition. Please do not enable the function when
there's no shadows being casted onto the panel. Otherwise it could lead to lesser generated
power. Press the button until it enters the shadow optimize menu. When LCD displays "Shadow
MPPT OFF", it means the MPPT function for shadow is switched off. Long press the button to
enable the function. If LCD displays "Shadow MPPT ON" it means the shadow optimizer is on.
Long press the button to disable the function.
•
70% rated power limit
The function is only available for inverters in Germany. It can only be used by network operators.
Otherwise it will cause a loss of power generated from the PV plant.
Press the button till LCD displays the 70% rated power menu. If LCD displays 70% rated enable it
means the function to limit the inverter working under 70% of rated output is switched off. Long
press the button will switch this function on. If LCD displays recover rated power it means the
inverter is working under 70% of rated output power. Long press the button to recover inverter
to 100% of its rated output power.
5.2.8 Power Limiting Function Setting
• Enter Password:
Please enter the password (valid for 10 minutes) before changing the power limiting state (the
Long Press
Long Press
Long Press
Long Press
Long Press
Long Press
Long Press
Long Press

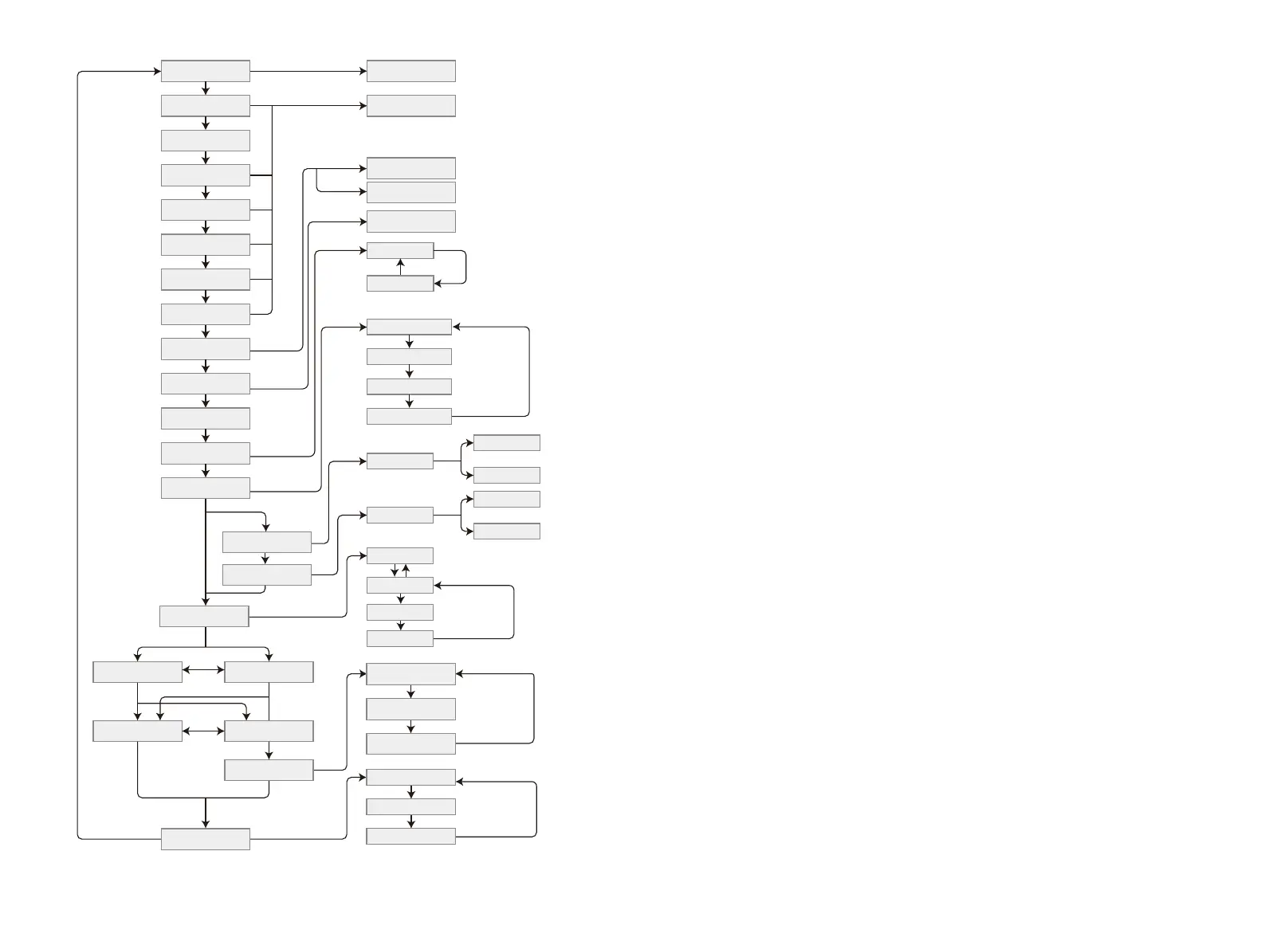

No Error
E01 110822 01:01
Short press for
safety country select
50Hz GridDefault
English
Lock
50Hz Grid Default
Second Level Menu
Short Press
Short Press Short Press
Short Press
2000-00-00 00:00
2000-00-00 00:00
2000-00-00 00:00
······
Short Press
Short Press
Long Press
Long Press
Long Press
Long Press
Long Press
Short Press
Short Press
Short Press
Short Press
Short Press
RS485
WiFi
WiFi Reset
Pac=2595.5W
WiFi Reload
Pac=2595.5W
PF Adjust
Pac=2595.5W
Shadow MPPT ON
Pac=2595.5W
Shadow MPPT OFF
Pac=2595.5W
Or
Or
Power Limit ON
Pac=2595.5W
Power Limit OFF
Pac=2595.5W
Set Power Limit
XXX%
Set Power Limit
XX%
Set Modbus Addr
Pac=2595.5W
Short Press
Long Press
Short press short press to select
"Leading" or "Lagging"
Short Press to select
number 8 or 9
Short Press to select number 0 ~ 9
Short Press to select
number 0 ~ 9
Long Press
Disable
Lagging 0.95
Lagging 0.95
Lagging 0.95
Long Press
Wait
WiFi Reloading
WiFi Reload OK
WiFi Reload Fail
Wait
Long Press
Long
press 2S
Long Press
Long Press
Long Press
Long Press
Long Press
Short press to select
number 0 ~ 9
Short press to select
number 0 ~ 9
Short press to select
number 0 ~ 2
Short press to select
number 0 ~1
Short press to select
number 0 ~9
Short press to select
number 0 ~9
Set Addr: XXX
Set Addr: XXX
Set Addr: XXX
WiFi Reset OK
WiFi Reset Fail
WiFi Resetting
Angielski
Set Power Limit
XXX%
Set Power Limit
XX%
First Level Menu
Normal
Pac=2595.5W
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
Short Press
E-Today=15.2KWh
Pac=2595.5W
E-Total=533.17KWh
Pac=2595.5W
Vpv=325.2/325.5V
Pac=2595.5W
Ipv=4.1/4.1A
Pac=2595.5W
Vac=229.5V
Pac=2595.5W
Iac=11.3A
Pac=2595.5W
Fac=50.00Hz
Pac=2595.5W
Error History
Pac=2595.5W
GWXXXXD-NS
Pac=2595.5W
Ver:V1.XX.XX
Pac=2595.5W
Set Language
Pac=2595.5W
Set Time
Pac=2595.5W
Long
Press
Long
Press
21 22
To Next Page
