Thermostat wires
Compressor
(AC) Unit Wires
14 15
ENGLIS H
Your system may have extra wires,
like a G wire (to the thermostat)
and C and Y wires (to the compressor).
Keep them connected.
Properly terminate any loose wires
Optional: Use the sticky pad to aach
the power connector to the panel

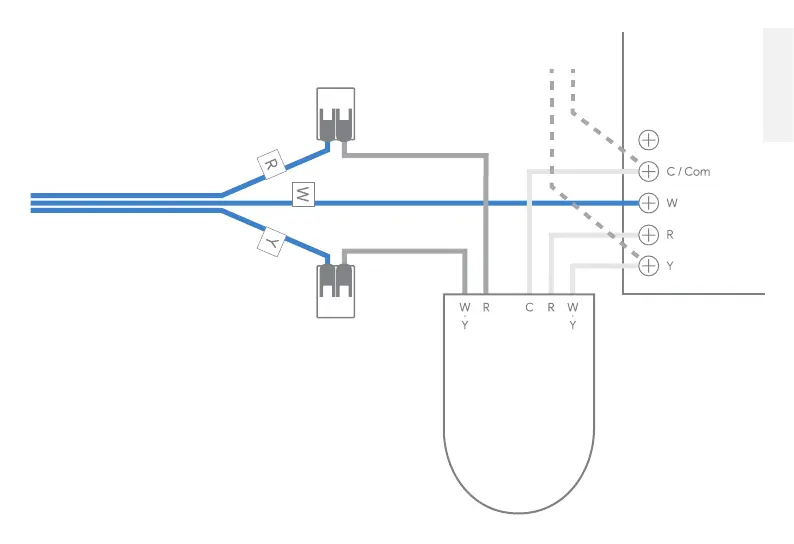

7. Install the power connector
A. Cooling and heating system
Wire the power connector to Y
