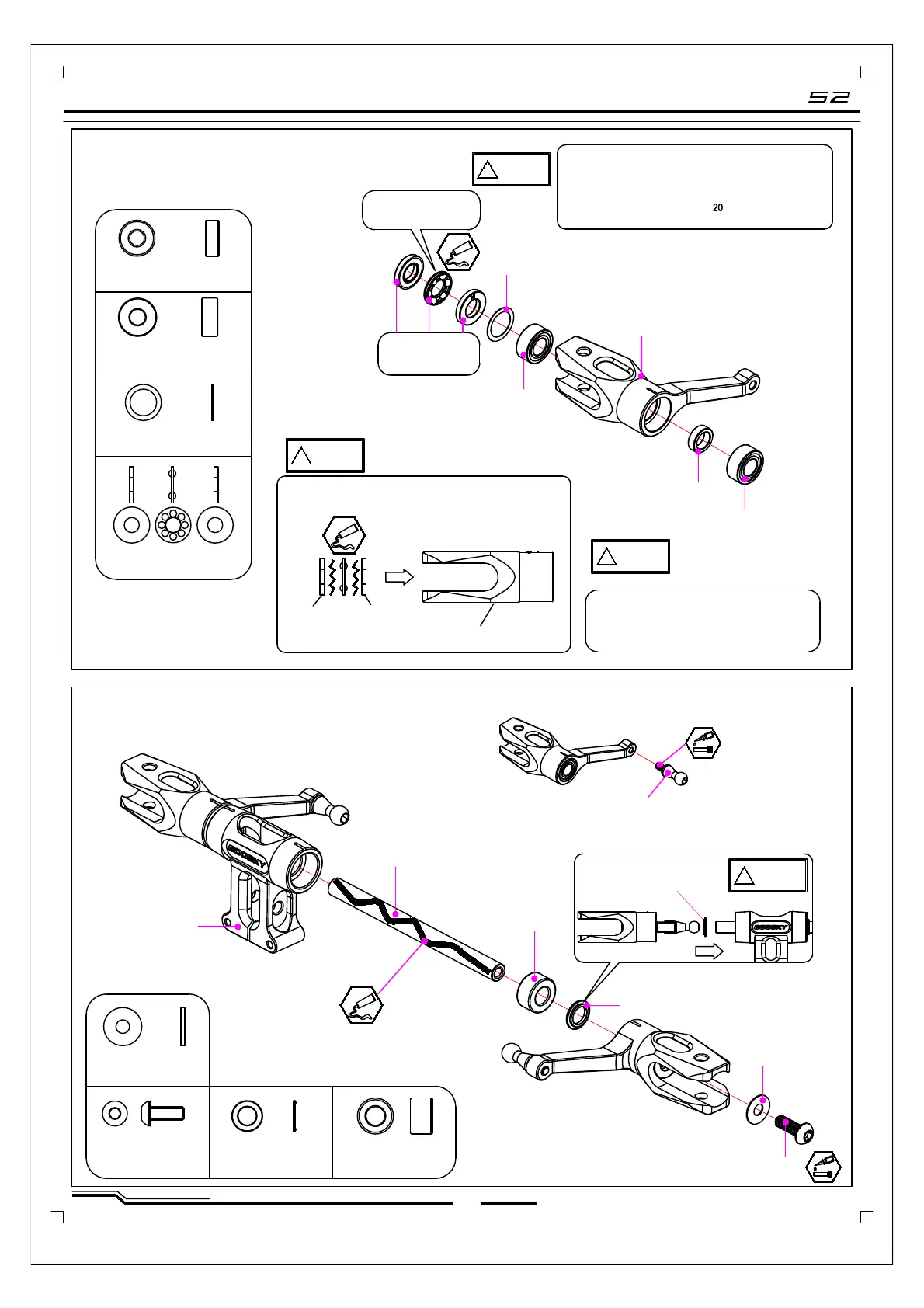

step 1 步骤一
!
CAUTION
(OUT)
(IN)
(Ø3xØ6x2.8)
!
CAUTION
一
(Ø3*Ø6*2.5mm)x4
Φ3.1*Φ4.4*1.4mm)x2
(Ø3*Ø4.5*0.1mm)x2
!
CAUTION
6
EN
WWW.GOO-SKY.COM
Ball Bearing-MR63ZZ
Main collet bearing bushing
Flat bearing gasket
Thrust bearing
Thrust braring and washer for radial bearing are wear items,and thus should be
inspected for replacement after every 20 flights.
For flights with high headspeed ,the inspection interval should be reduced to
ensure flight safety.
Thrust bearing
Ø3*Ø6*2.8mm)
Thrust bearings
(Ø3*Ø4.5*0.1mm)
Flat bearing gasket
(Ø3*Ø6*2.5mm)
Ball Bearing-MR63ZZ
Φ3.1*Φ4.4*1.4mm)
Main collet bearing bushing
Concave opening of bearing face
inside
(Ø3*Ø6*2.8)
Φ3*Φ6*3mm)x2
(Φ3.1*Φ4*Φ4*0.3*0.55)x2
Ø2*Ø5*0.2mm)x2
(M2x5mm)x2
Washer
Socket screw
Damper rubber-red
Washer
Damper rubber
!
CAUTION
Pay attention to the direction
of the copper washer
(Φ3.175x9.5mm)
(Ø3*Ø6*2.5mm)
Ball Bearing-MR63ZZ
Ball head screw
Φ3x38.9mm
Feathering shaft
(Φ3.1*Φ4*Φ5*0.3*0.55)
Washer
Φ3*Φ6*3mm
Horizontal shaft
damper rubber
Washer
Ø2*Ø5*0.2mm
M2x5mm
Socket screw
Center Hub
main propeller clip
Grease
Grease
Grease
Main Blade Clip
The original assembled product, please confirm
whether the screw is glued and will not loosen
before each flight.
To Next Page
