33

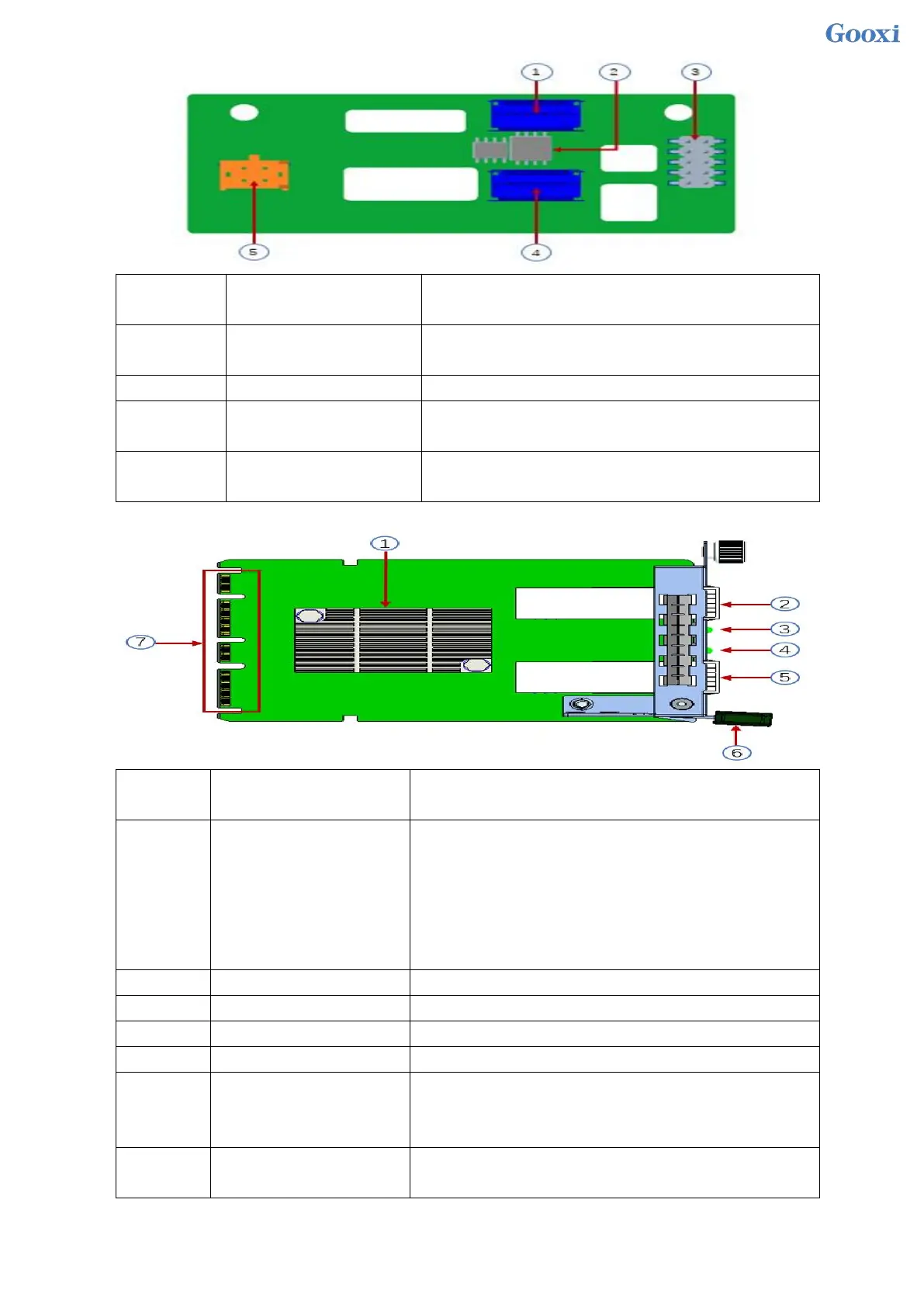

Serial
number
Description
Function
1, 4
Slimline 4i Connector
Provides PCIe×4 interface to connect to CPU and NVME
SSD1 (including CPU PEHP I2C and BMC I2C signals)
2
CPLD chip
For data logic processing
3
JATG debugging interface
JTAG debug interface for programming and version
upgrade of CPLD
5
Power outlet
4 Pin power socket for docking with PSU or docking with
MB 4 Pin plug to power the board
OCP3.0 network card as shown in the figure
Serial
number
Description
Function
1
Intel 82599ES chip
Mainly connected to the network port controller of the
motherboard CPU via PCIe Gen2 X8, which is converted
into a 2-port optical port SFP+ at the network card end, and
the 82599ES chip also provides a port for communication
with motherboard BMC NCSI for info transfer between
BMC & NIC.
2
SFP+ LAN1
Provide SFP+ 10G optical port signal
3
LED1
LED status indicator
4
LED2
LED status indicator
5
SFP+ LAN2
Provide SFP+ 10G optical port signal
6
Network card buckle
It is used to lock the network card. When removing the
network card, you need to press down to pull out the
network card.
7
OCP3.0 port
Used to connect to the motherboard OCP3.0 PCIe X8
signal/12V power supply/Sideband signal
