Gorgy Timing 93000011 - Assembly Principle; Wall Mounting; Flush Mounting

12
MDE-LEDI-ORIGINAL-1101V3.0
2. GENERAL CHARACTERISTICS

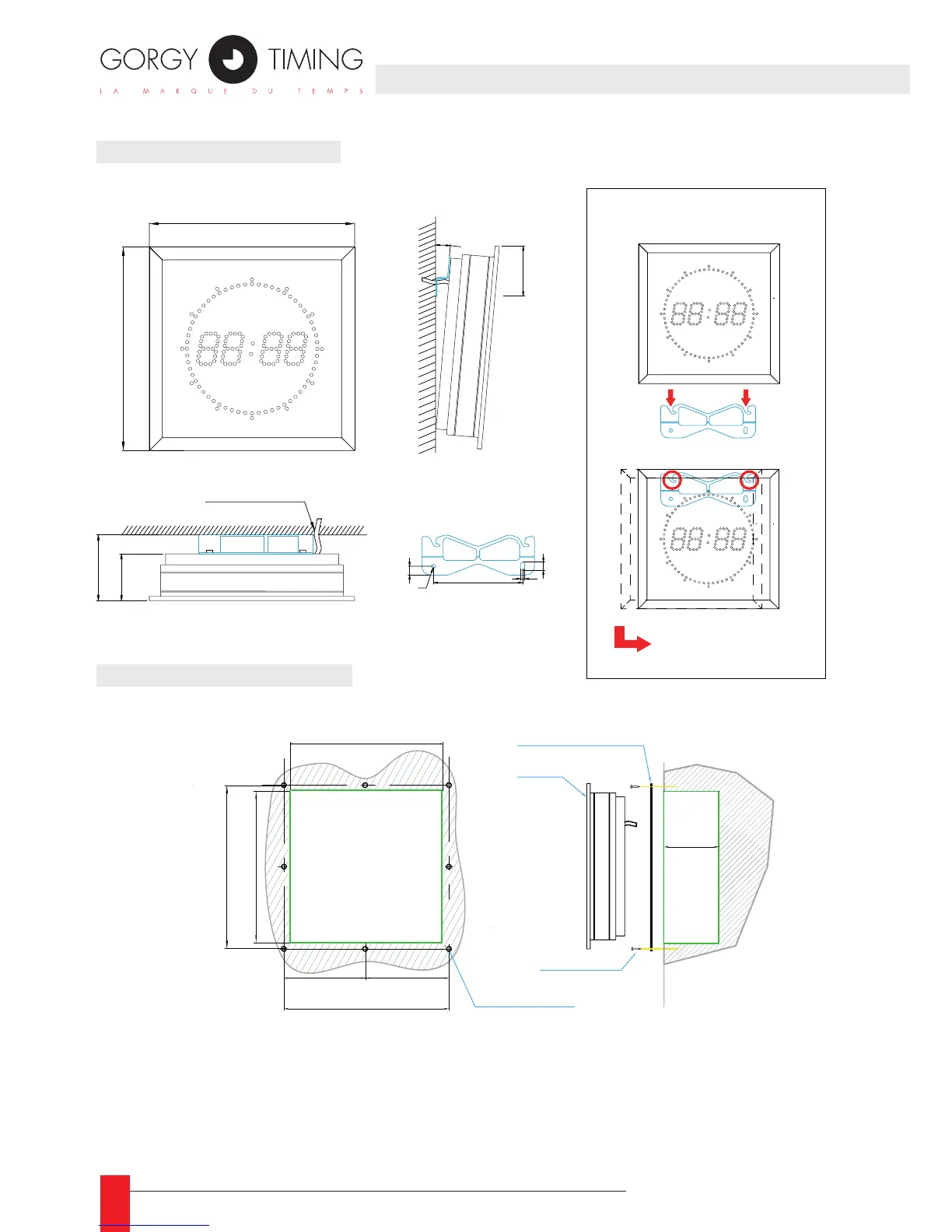

1. ASSEMBLY PRINCIPLE
1.1. WALL MOUNTING
1.2. FLUSH MOUNTING

► Prepare an opening based on your clock dimensions.
► Position the bracket plate and secure it with Ø 3 mm screws (not supplied).
► Insert the clock in the slot. It will be held in place automatically by magnetisation.
150 mm
7 mm
15 mm
14 mm
ø7
5°
85 mm
270 mm
270 mm
Power cable
62 mm
86 mm
HANGING OF THE CLOCK
WITH LOCKING SYSTEM
1
2
Lock done by moving
the clock to the right
250 mm
250 mm 260 mm
Mounting hole
260 mm
= =
Alimentation
Clock
Screw Ø 3mm
Support built
Clock wall
opening
mini
65mm
