A
4 X 4 X 55"
ROCK WALL
ROPE SUPPORT
5/16" WASHER
5/16 X 6"
HEX BOLT
4 X 4 X 88"
ROPE LADDER
SUPPORT

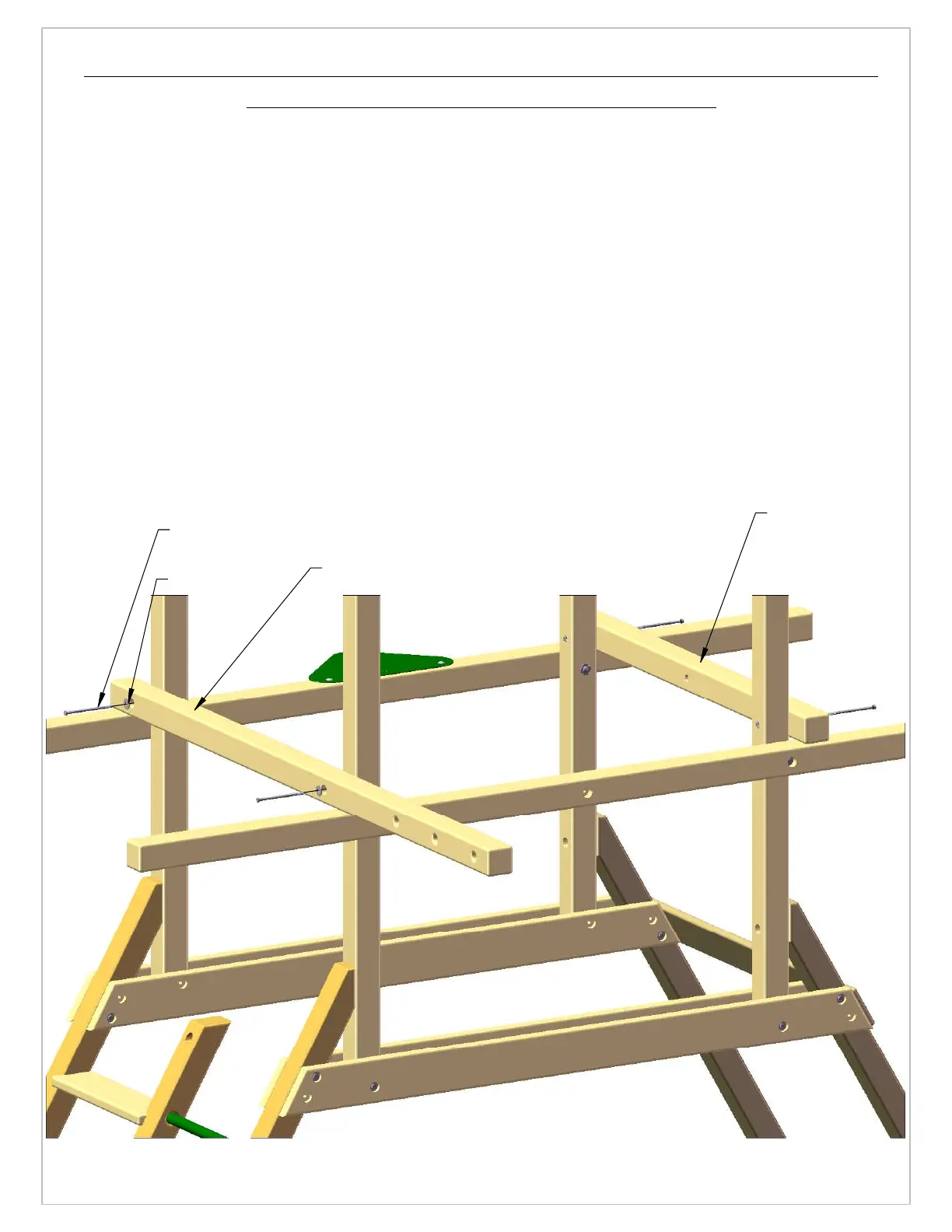

STEP 14: ATTACHING THE ROPE LADDER RUNNER AND
THE ROCK WALL ROPE SUPPORT
1: FIND THE 4 X 4 X 88" ROPE LADDER SUPPORT AND LAY IT ON TOP OF THE SIDE RAIL AND THE SWING BEAM SIDE
RAIL ON THE LADDER SIDE OF THE FORT.
2: LINE UP THE COUNTER-SUNK HOLES OF THE ROPE LADDER SUPPORT WITH THE HOLES IN THE CORNER POSTS AND
ATTACH WITH 5/16 X 6" HEX BOLTS WITH 5/16" WASHERS. THE THREE HOLES ON THE END OF THE ROPE LADDER
SUPPORT SHOULD BE ON THE OPPOSITE SIDE OF THE SWING BEAM PLATE BEFORE INSTALLING.
3: FIND THE 4 X 4 X 55" ROCK WALL ROPE SUPPORT AND LAY IT ON TOP OF THE SIDE RAIL AND THE SWING BEAM
SIDE RAIL ON THE ROCK WALL SIDE OF THE FORT.
4: LINE UP THE COUNTER-SUNK HOLES OF THE ROCK WALL ROPE SUPPORT WITH THE HOLES IN THE CORNER POSTS
AND ATTACH WITH 5/16 X 6" HEX BOLTS WITH 5/16" WASHERS.
