3/8" WASHER
3/8" WASHER
3/8 X 5"
LAG SCREW
3/8 X 3-1/2"
LAG SCREW
3/8" x 3-1/2"
LAG SCREW
WITH 3/8"
WASHER
3/8" x 3-1/2"
LAG SCREW
WITH 3/8"
WASHER
3/8" x 3-1/2"
LAG SCREW
WITH 3/8"
WASHER
3/8" x 5"
LAG SCREW
WITH 3/8"
WASHER
3/8" x 5 "
LAG SCREW
WITH 3/8"
WASHER
3/8" x 5 "
LAG SCREW
WITH 3/8"
WASHER
3/8" x 5 "
LAG SCREW
WITH 3/8"
WASHER
(NOTE: SCREW
GOING UPWARDS
IS HIDDEN)
3/8" x 3-1/2 "
LAG SCREW
WITH 3/8"
WASHER

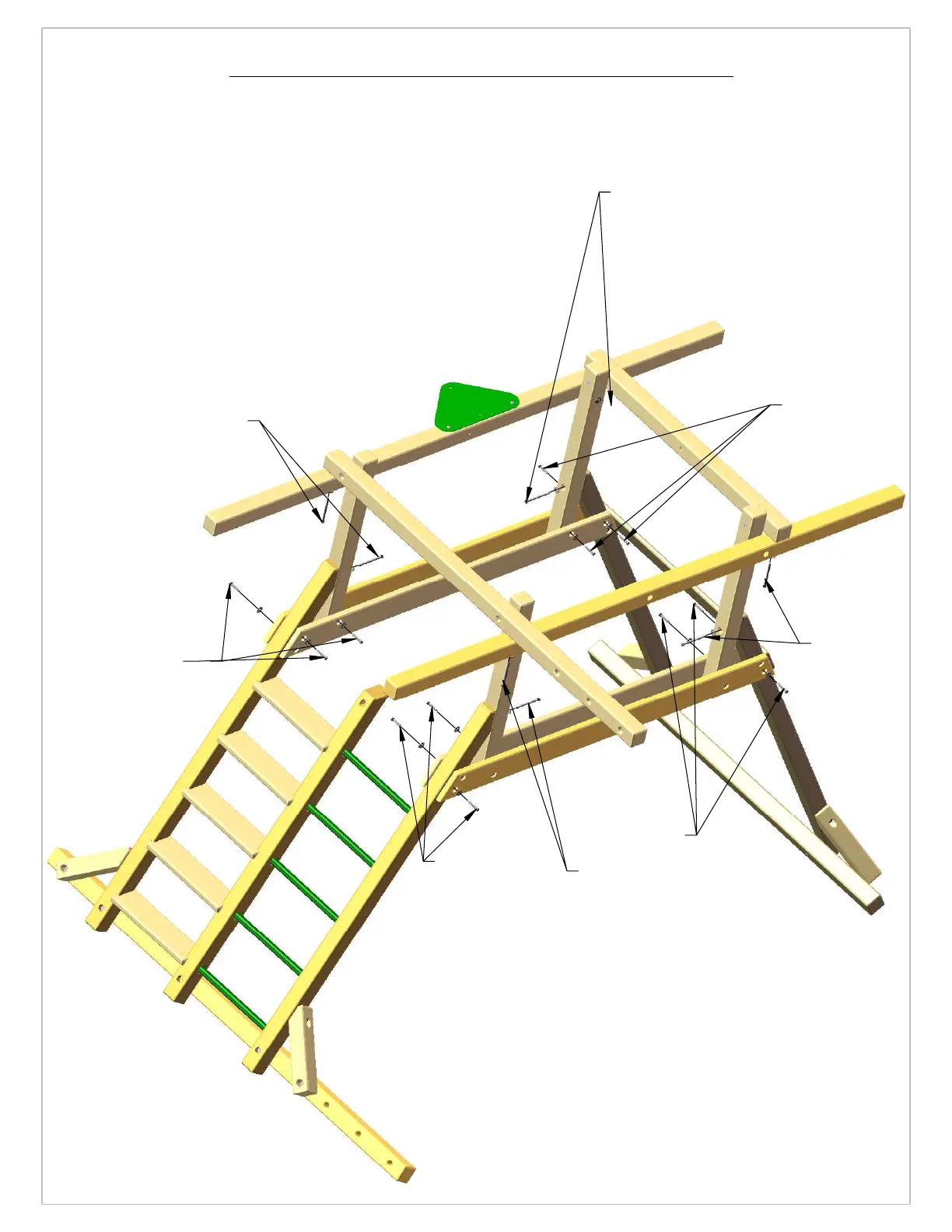

STEP 15: INSTALLING LAG SCREWS
1: MAKE SURE THAT THE UNIT IS LEVEL AND SQUARE.
2: STARTING AT THE INNER AND OUTER FORT SUPPORTS, USE 3/8 X 3-1/2" LAG SCREWS WITH 3/8" WASHERS IN THE
EMPTY HOLES ON THE 2 X 6 PARTS TO SECURE THE BASE OF THE FORT.
3: THE UPPER PART OF THE FORT NEEDS TO BE SECURED WITH 3/8 X 5" LAG SCREWS WITH 3/8" WASHERS IN THE
EMPTY HOLES OF THE 4 X 4 PARTS.
