BOLT CAP
6-1/2" CARRIAGE BOLT
TORQUE WASHER
3/8" LOCK NUT
3/8" WASHER
3/8 X 3-1/2"
LAG SCREW

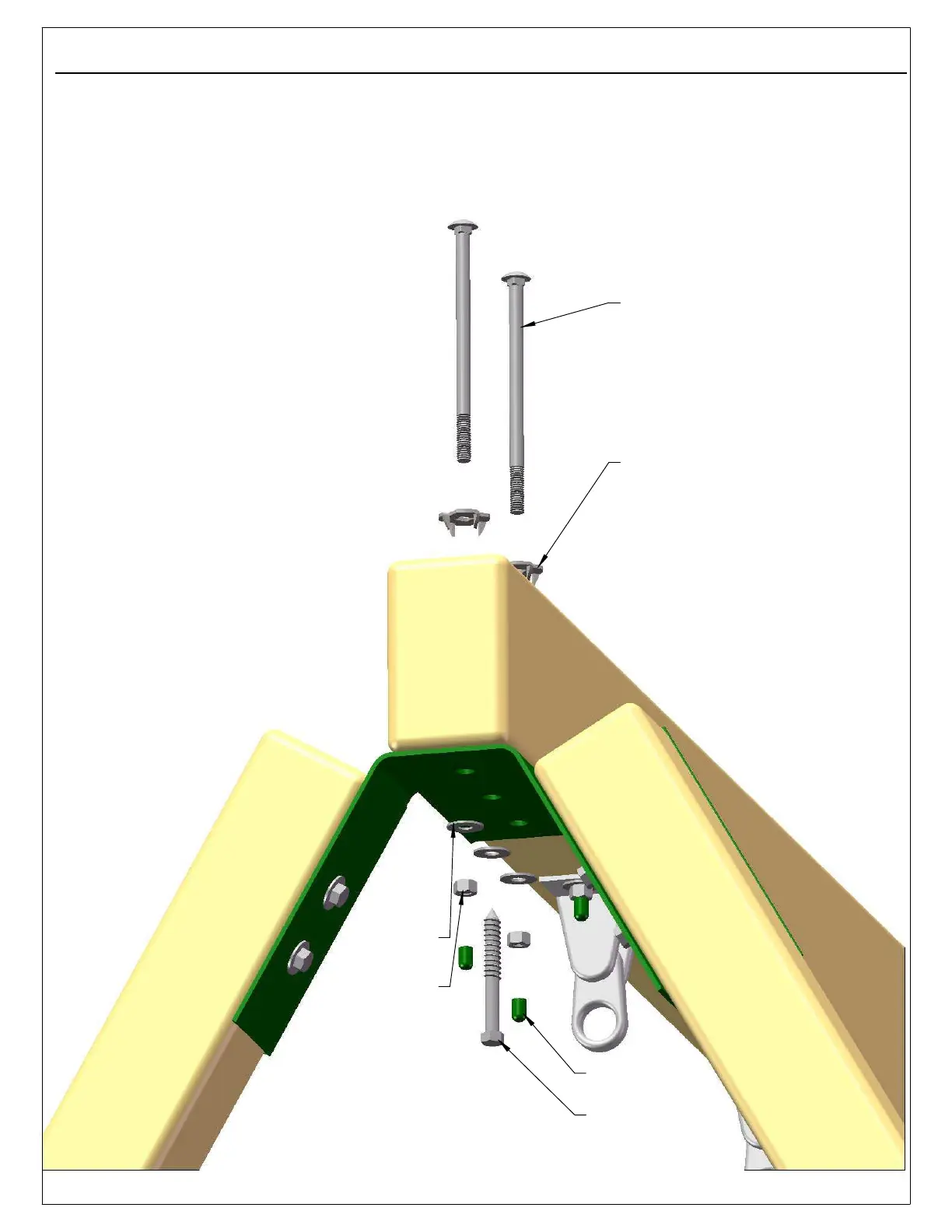

STEP 27: ATTACHING SWING BEAM TO SWING BEAM LEGS
1: FASTEN THE SWING BEAM TO THE SWING BEAM LEG BRACKET USING 6-1/2" CARRIAGE BOLTS WITH TORQUE
WASHERS ON TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS WITH 3/8" WASHERS UNDERNEATH.
2: USE A 3/8 X 3-1/2" LAG SCREW AND 3/8" WASHER IN THE MIDDLE HOLE OF THE SWING LEG BRACKET.
3: PLACE BOLT CAPS OVER EXPOSED THREADS AFTER SECURING.
