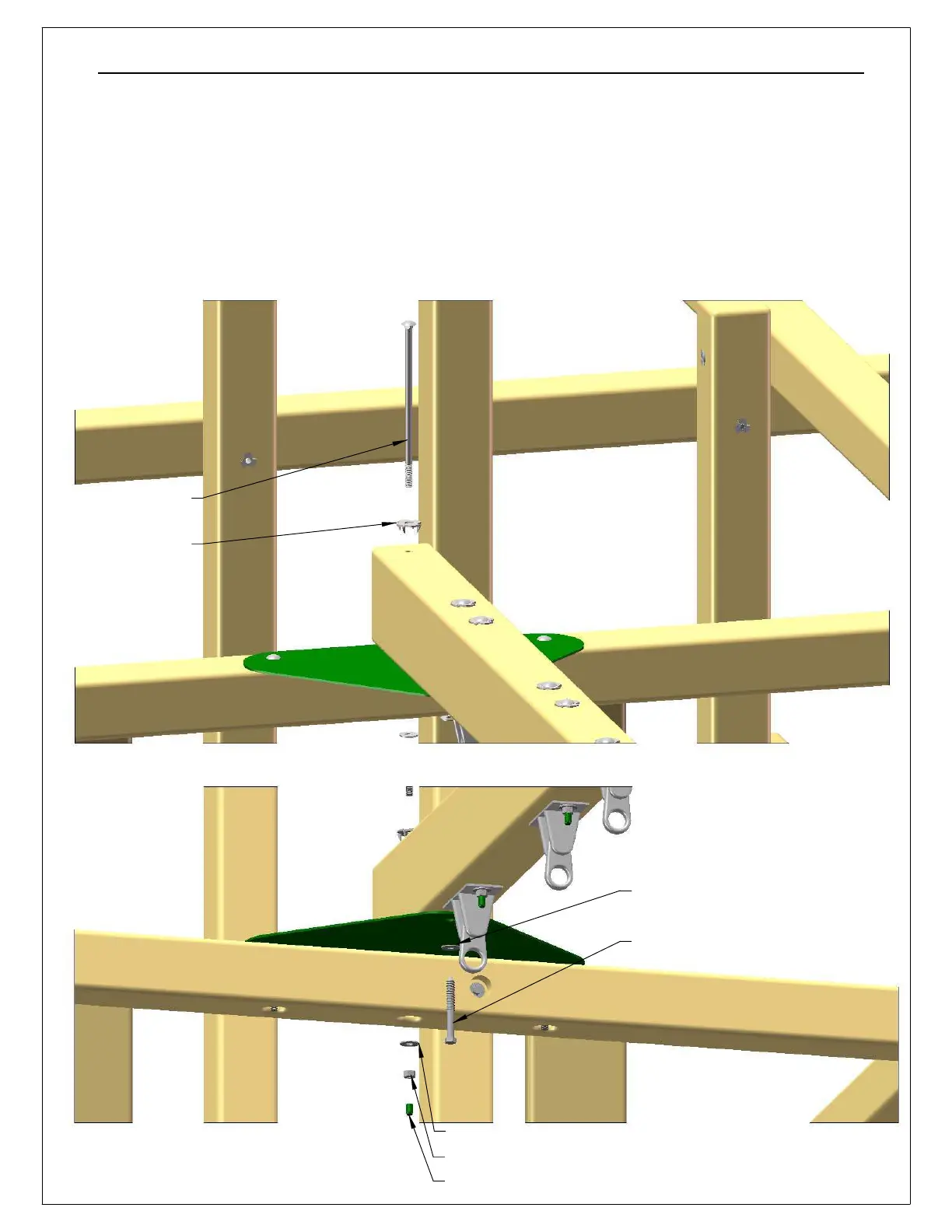

STEP 28: ATTACHING THE SWING BEAM TO THE FORT
*AN EXTRA PERSON IS REQUIRED FOR THIS STEP.
1: AFTER THE LEGS ARE ATTACHED, HAVE ONE PERSON ON THE GROUND PICK UP THE SWING BEAM BY THE LEGS,
AND ANOTHER PERSON PICK UP THE SWING BEAM FROM INSIDE THE FORT AND WALK OUT THE SWING BEAM.
2: LINE UP THE PILOT HOLE ON THE END OF THE SWING BEAM WITH THE MIDDLE HOLE ON THE SWING BEAM PLATE.
3: FASTEN THE SWING BEAM TO THE SWING BEAM PLATE AND SWING BEAM SUPPORT USING A 9" CARRIAGE BOLT
WITH A TORQUE WASHER ON TOP AND A 3/8" LOCK NUT AND WASHER ON THE BOTTOM. PLACE GREEN BOLT
CAP OVER EXPOSED THREADS AFTER SECURING.
4: FASTEN THE SWING BEAM TO THE SWING BEAM PLATE FROM UNDERNEATH WITH A 3/8 X 3-1/2" LAG SCREW
AND A 3/8" WASHER.
9" CARRIAGE BOLT
TORQUE WASHER
BOLT CAP
3/8" WASHER
3/8" WASHER
3/8" LOCK NUT
3/8" X 3-1/2"
LAG SCREW
