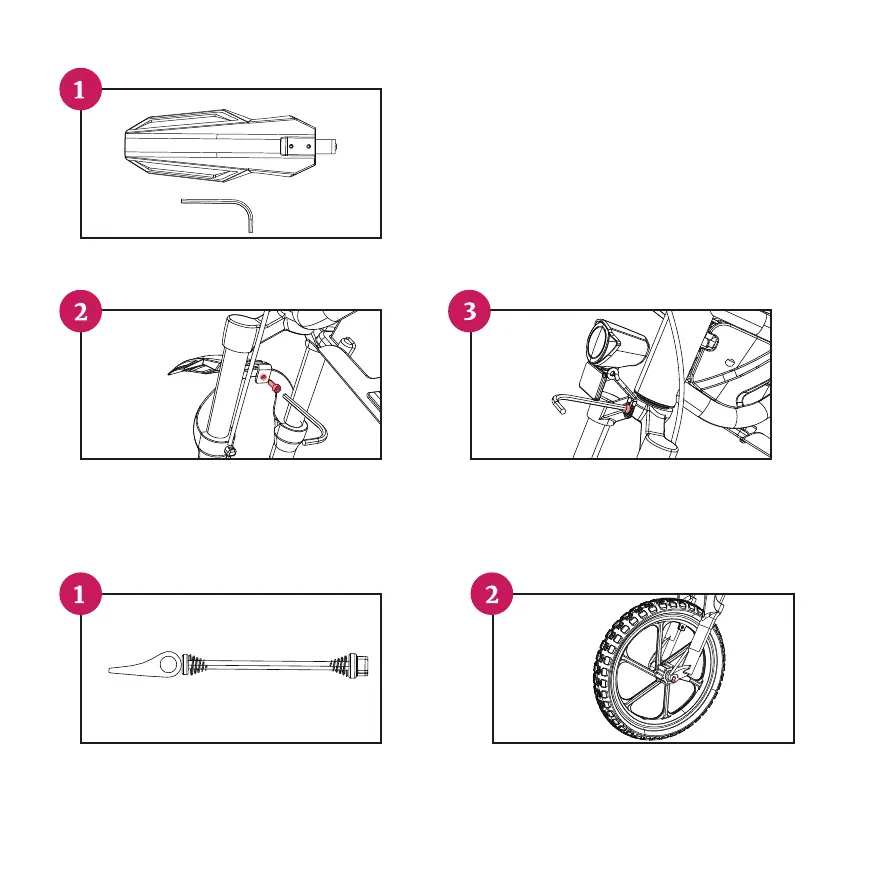

2. Install the front fender/headlight
3. Installing the front wheel
Prepare the front mudguard and a 5 mm hex wrench.
Attach the front fender and headlight to the frame. The screws come installed
on the frame, so you will first need to remove the screws to install the fender
and headlight.
Find the front wheel quick-release
locking bolt from the toolkit.
Align the axle of the front wheel
with the brake groove, and then
slowly install the wheel into the
front fork.
08
