OPERATION MANUAL - Trailer Refrigeration Unit
arktik 1600N • 1600 N/T • 2000N • 2500N • 2000P • 2500 N/K • 2000 P/K
19
Page
6.3.2 Installation Opening of Trailer Wall
7. Prepare the wall opening together with 6 drill holes for the fastening
elements in the middle of the front wall of the trailer. Make sure that
the minimum size for proper operation of the trailer refrigeration unit
is observed, see Fig. 6 2.
6.4 Installation of the Trailer Refrigeration Unit

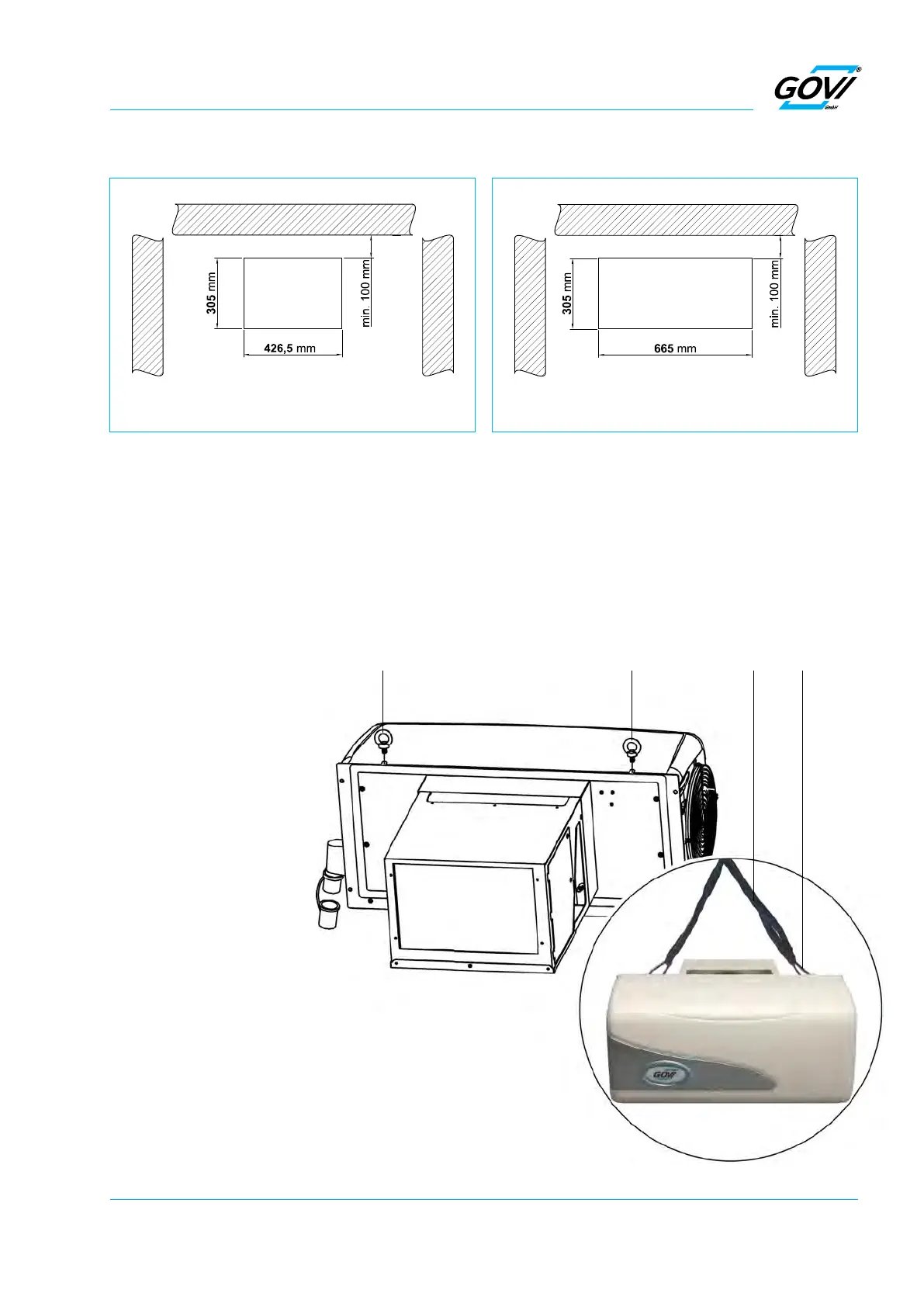

Fig. 6-2 Dimensions of the
trailer wall opening
Fig. 6-3 Attachment points
of the trailer refrigeration
unit
1. Eye bolts
2. Carrying rope
3. Spring hook
arktik 1600N • 1600N/T • 2000N
arktik 2500
• 2500N/K • 2000P • 2000P/K
Roof
Side wall
Side wall
1 1
2 3
arktik 1600N • 1600N/T • 2000N
arktik 2500
• 2500N/K • 2000P • 2000P/K
Roof
Side wall
Side wall
To Next Page
