GPI FLOMEC QM Series - Accuracy and Pressure Drop Charts; Diesel Fuel Performance

9
0 1 2 3 4 5 6 7 8
-1.5 -1.0 -0.5
0.0 0.5 1.0 1.5
0 5 10 15 20 25 30 35 40
PRESSURE DROP PSI
ERROR %
FLOWRATE GPM

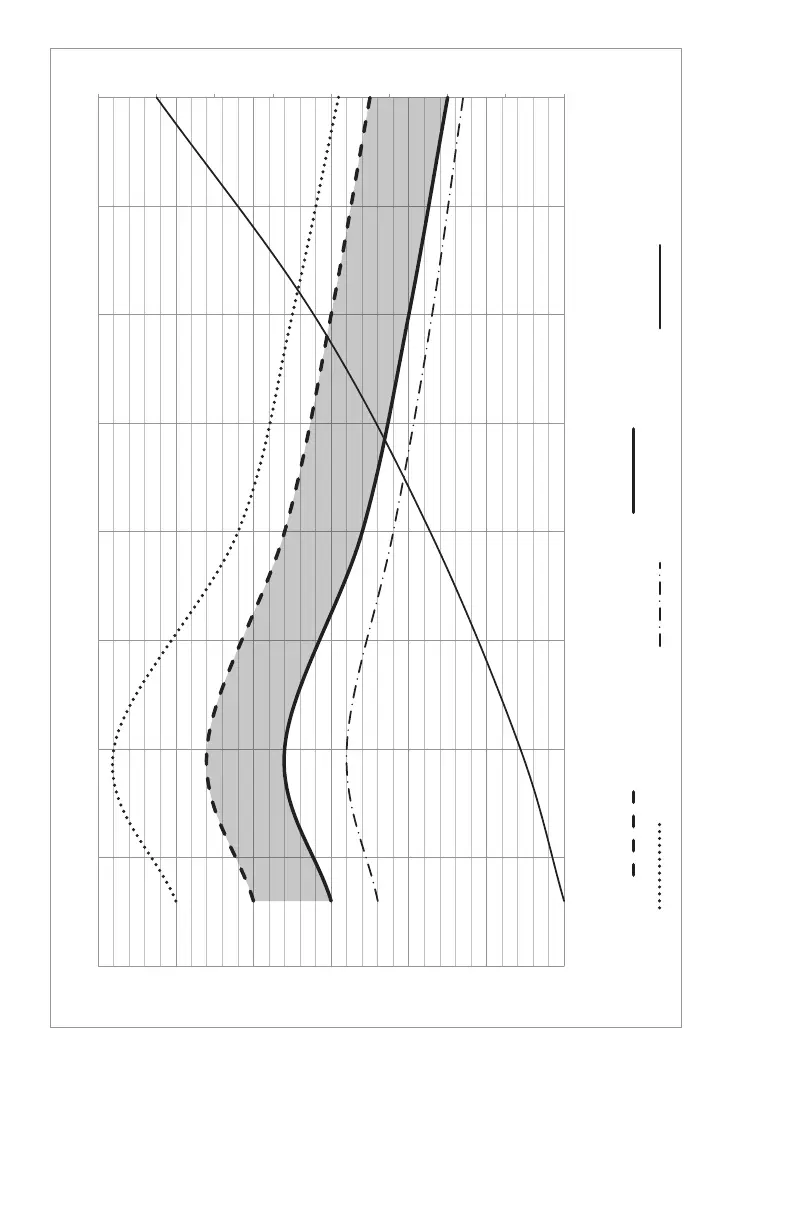

QM240/QM40 ACCURACY & PRESSURE DROP vs FLOWRATE - DIESEL
FACTORY SETTING NOMINAL UPPER RANGE FACTORY SETTING NOMINAL LOWER RANGE
CALIBRATION SCREW IN CALIBRATION SCREW OUT 2 TURNS PRESSURE DROP
