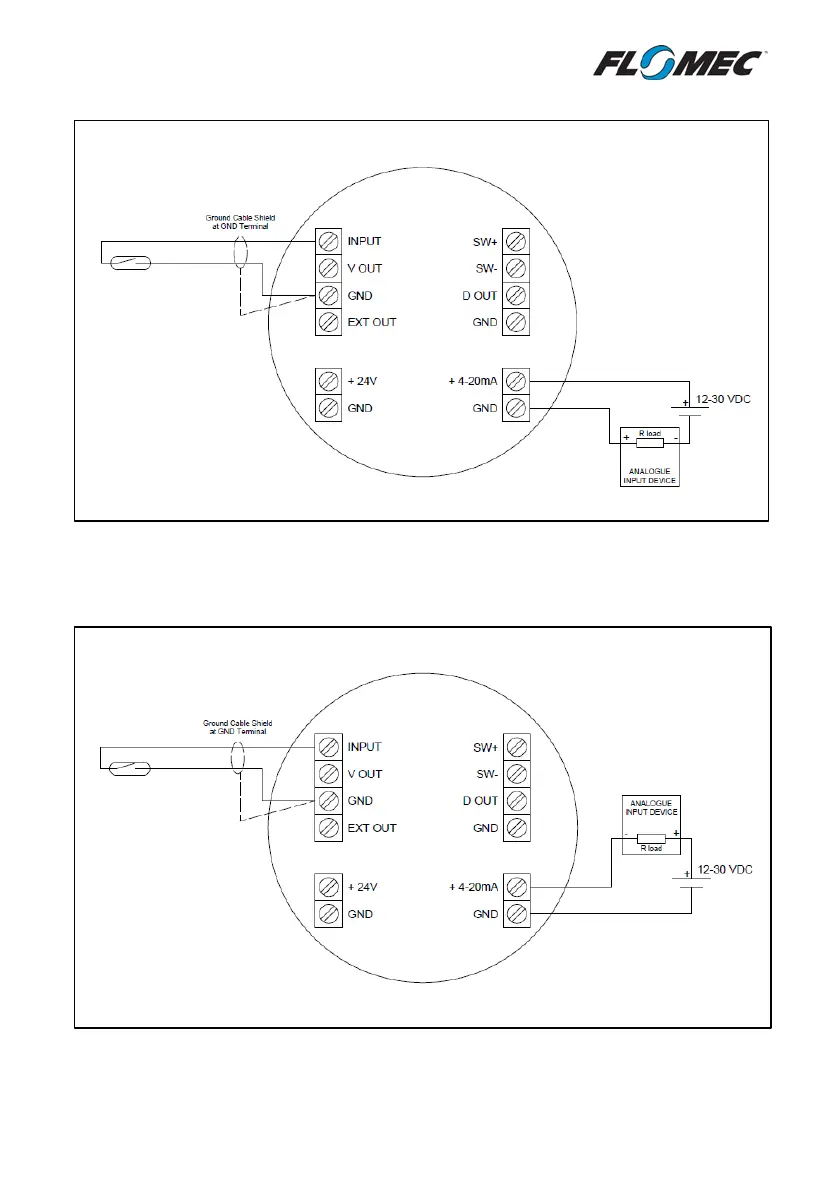

4.3.6 Analogue Output with an Unpowered Sensor – Negative Reference

Notes: Shown here with Reed Switch input, Coil and Voltage Pulse inputs also suitable for this

configuration.

4.3.7 Analogue Output with an Unpowered Sensor – Positive Reference

Notes: Shown here with Reed Switch input, Coil and Voltage Pulse inputs also suitable for this

configuration.
