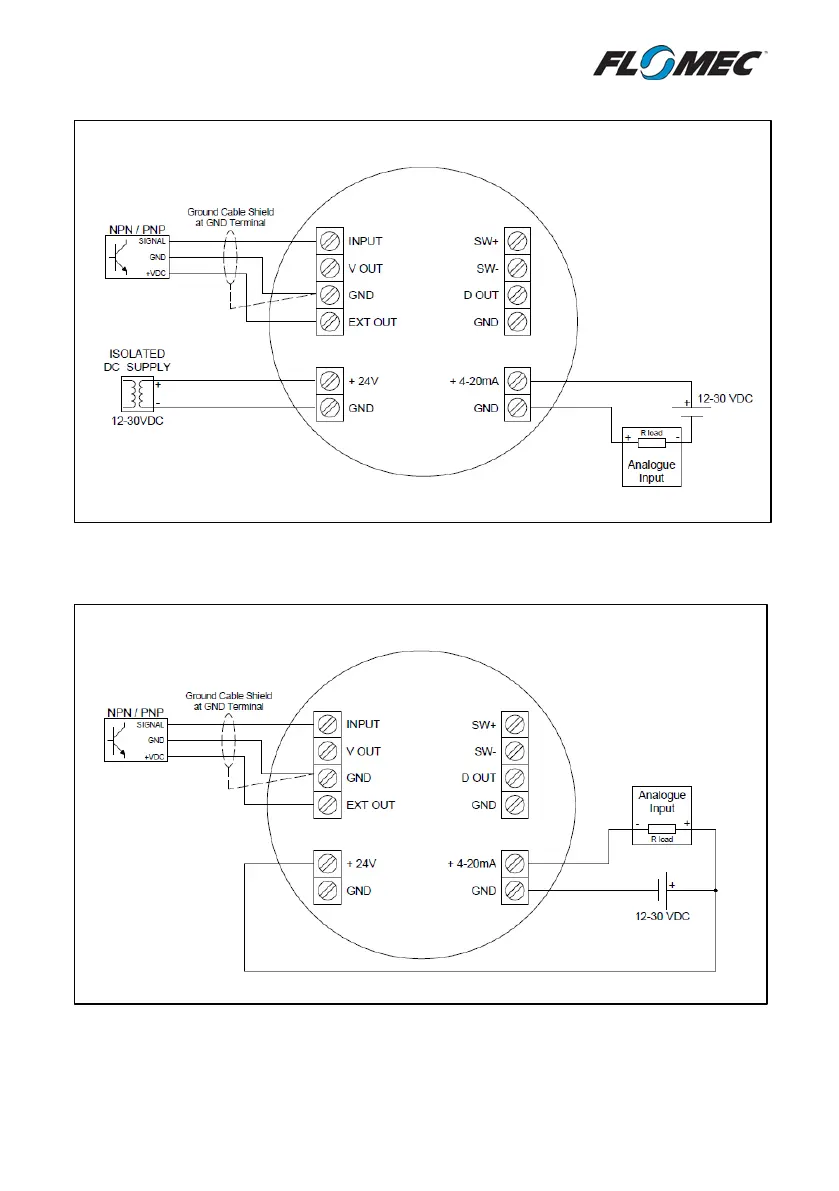

4.3.8 Analogue Output with a Powered Sensor – Negative Reference
4.3.9 Analogue Output with a Powered Sensor – Positive Reference
Note: Some instrumentation systems may have a common ground between the analogue input
and the DC supply, for those systems this wiring configuration will not be possible and
configuration 4.3.8 must be used.
